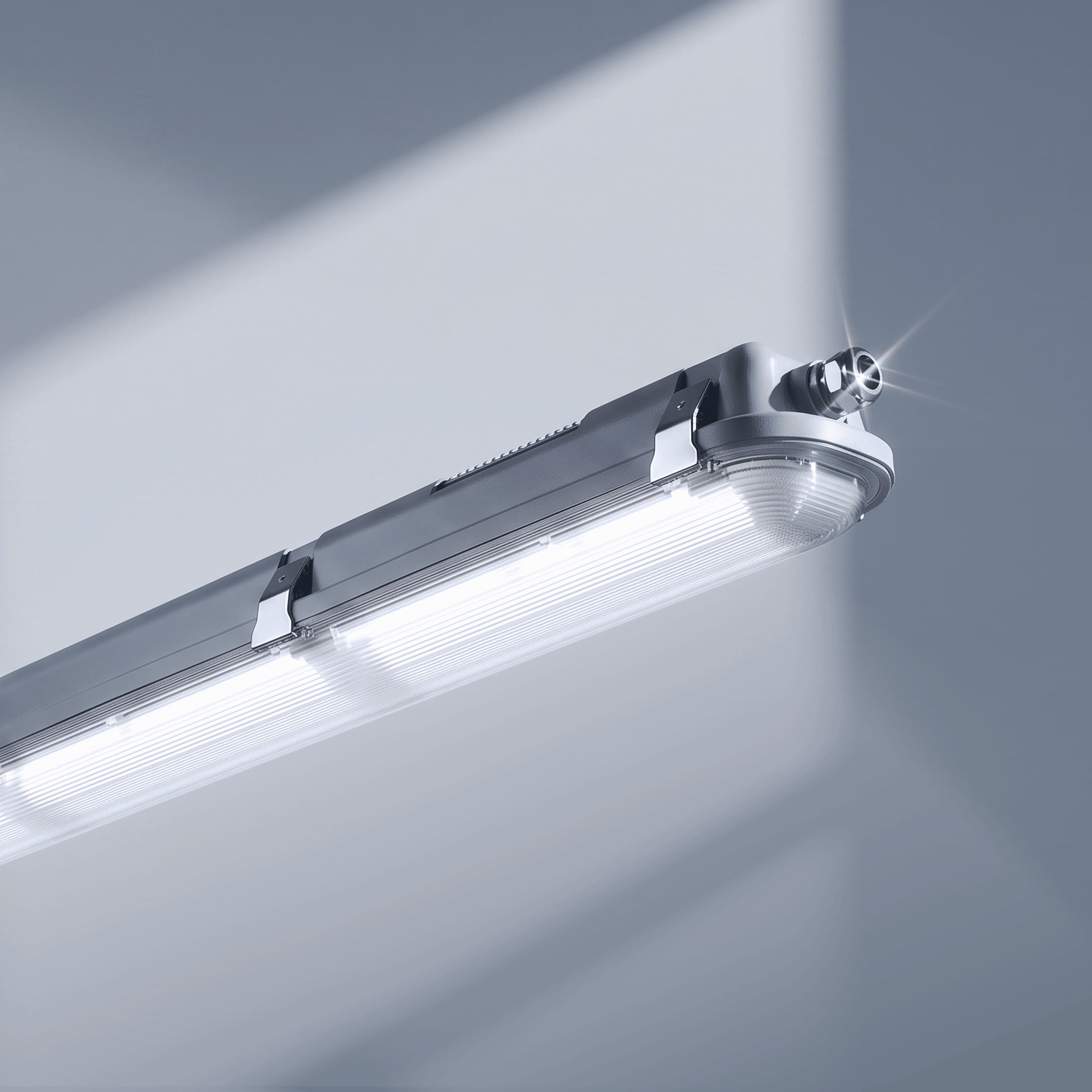

VAPOR EGDE VAPOR-TIGHT LED LINEAR LUMINAIRE, SMART SENSOR-READY
SKU:
AL-LWP
QUICK INFO:
Certified:
UL • DLC 6.0P • RoHS • Title 24 JA8
Lengths:
2 FT • 4 FT • 8 FT
CCT:
5 CCT Field Adjustable, 2700–5000K
Wattage:
4-Wattage, selectable 10–80W
Lumens:
3250 lm / 4550 lm / 6500 lm / 13000 lm
Finishes:
White
Black
Bronze
SKU: AL-LWP
Quick info:
Certified:
UL • DLC 6.0P • RoHS • IP66 Rated • UL94 5VA Flame Rating
Lengths:
4 FT • 8 FT
CCT:
3x Field Adjustable, 3500K/4000K/5000K
Wattage:
6-Wattage, selectable 26–80W
Lumens:
3,978 lm / 12,240 lm
Key Feature:
IP66-rated for Harsh Environments
Applications:
Commercial Breweries, Wineries, & Distilleries / Cold Storage Facilities & Industrial Freezers /
Commercial Car Washes / Automotive Repair Shops & Inspection Bays / Transit & Maintenance
Garages (Bus/Train/Aviation) / Commercial Greenhouses & Indoor Grow Facilities / Livestock Barns &
Poultry Facilities / Industrial Chemical & Petrochemical Plants / Water Treatment & Sewage Plants /
Coastal or Marine Storage Facilities / Subterranean & Covered Parking Garages / Unconditioned
Warehouses & Loading Docks / Indoor Swimming Pools & Natatoriums
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 – 60Hz rating
Power Factor: Driver includes dimming control wiring for
0-10V systems. The Dim-to-off voltage threshold of optional
12V AUX integrated driver ranges from 0.1V to 0.5V
Construction
Light gray polycarbonate housing with stainless steel latches
Frosted polycarbonate lens
Surface mount (wall, ceiling) with brackets and screws.
Chain or cable suspending mount with brackets and V-hooks.
Performance
EM Battery Backup Ready
Suitable for wet locations
Suitable for installation in insulated ceilings
(IC Rated) when input power < 50W 3CCT
Field Adjustable: 3500K, 4000K, 5000K
Accurate colors: CRI≥80
Flicker-free 0-10V dimming capability, down to 10%
Operating temp range -40°/-40°F to 45°C /113°F when fixture is suspended
at least 18″ from ceiling; -40°/-40°F to 40°C /104°F when fixture is surface mounted
Long-life, high-efficacy, micro-power LEDs
Lumen Maintenance, L70 > 100,000 hours
Power Factor: ≥0.9 for stable performance
Total Harmonic Distortion: <20%
Certifications & Regulatory
UL listed for wet location
UL 94: 5VA flame classification
RoHS compliant
DLC listed
IP66 rated
Warranty
5 Year Labor Warranty (see complete warranty terms for details)
KEY FEATURES

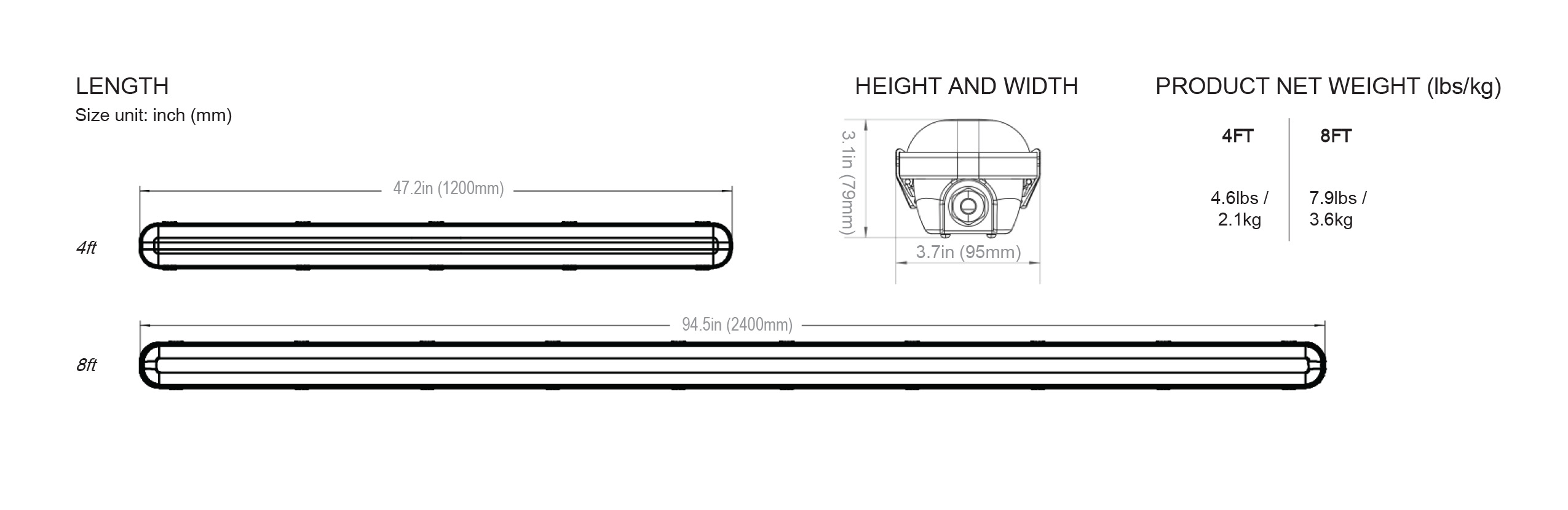

LINE DRAWING
Mounting
AL-LWP

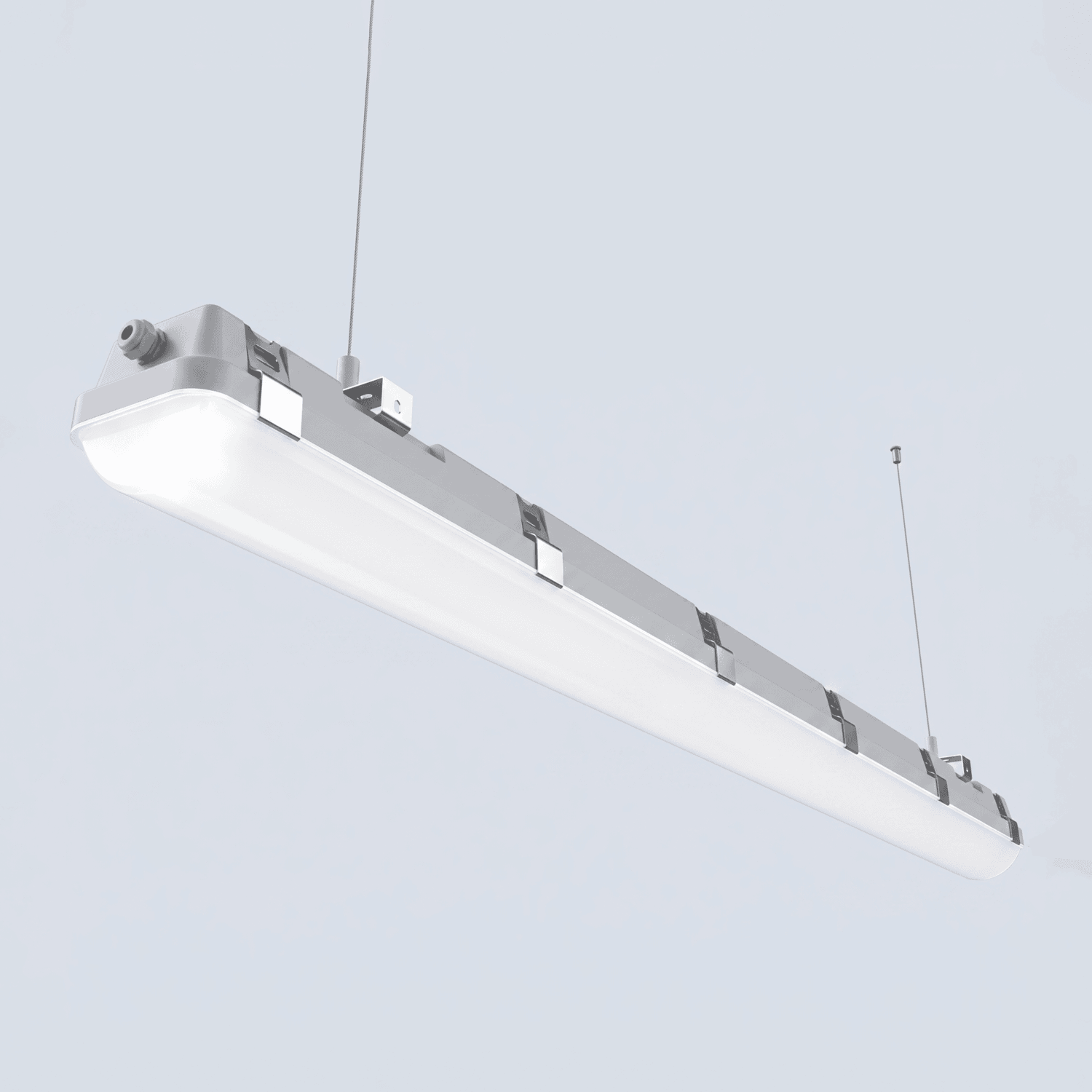

Chain or cable suspending mount w/ brackets and V-hooks
AL-LWP

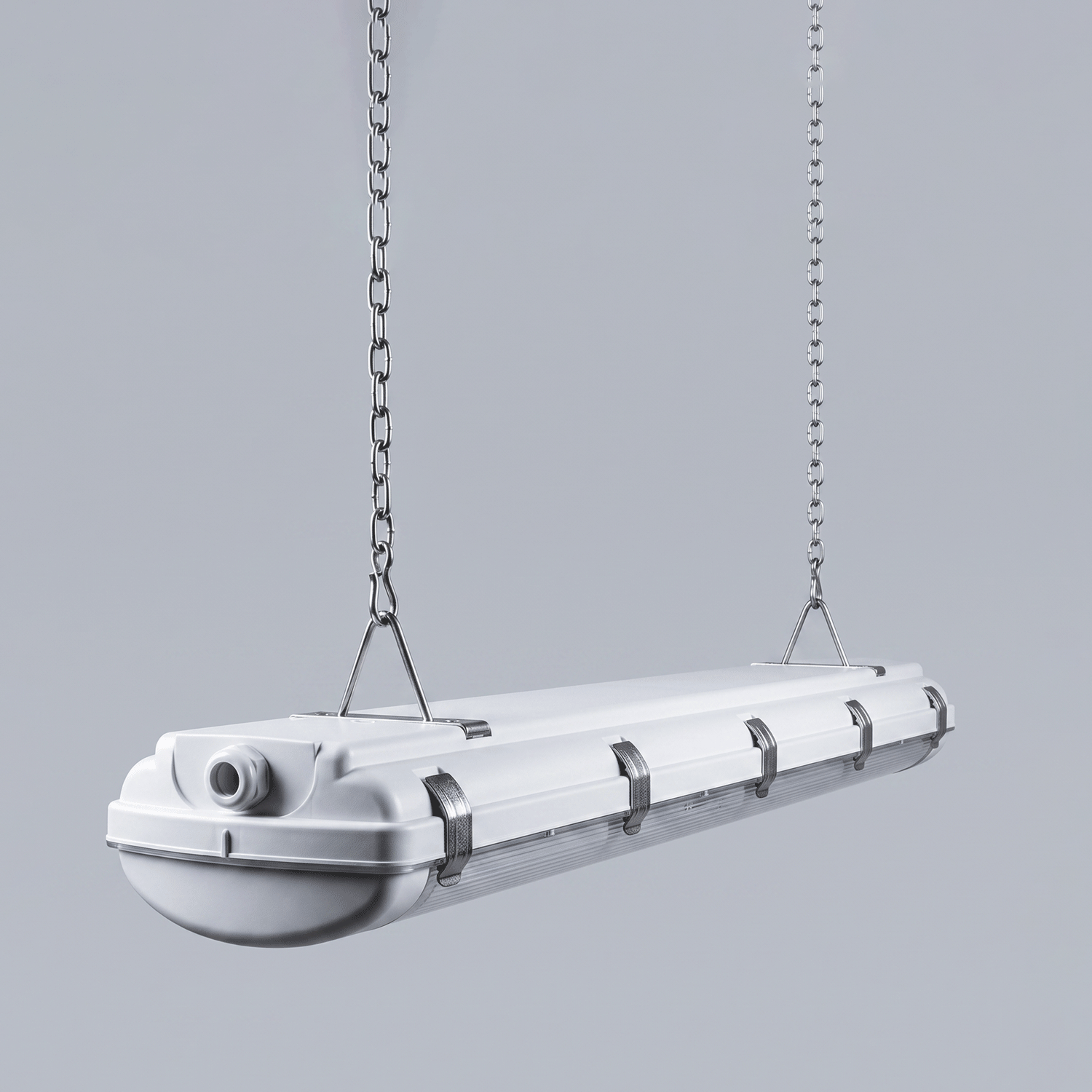

Chain or cable suspending mount w/ brackets and V-hooks
AL-LWP

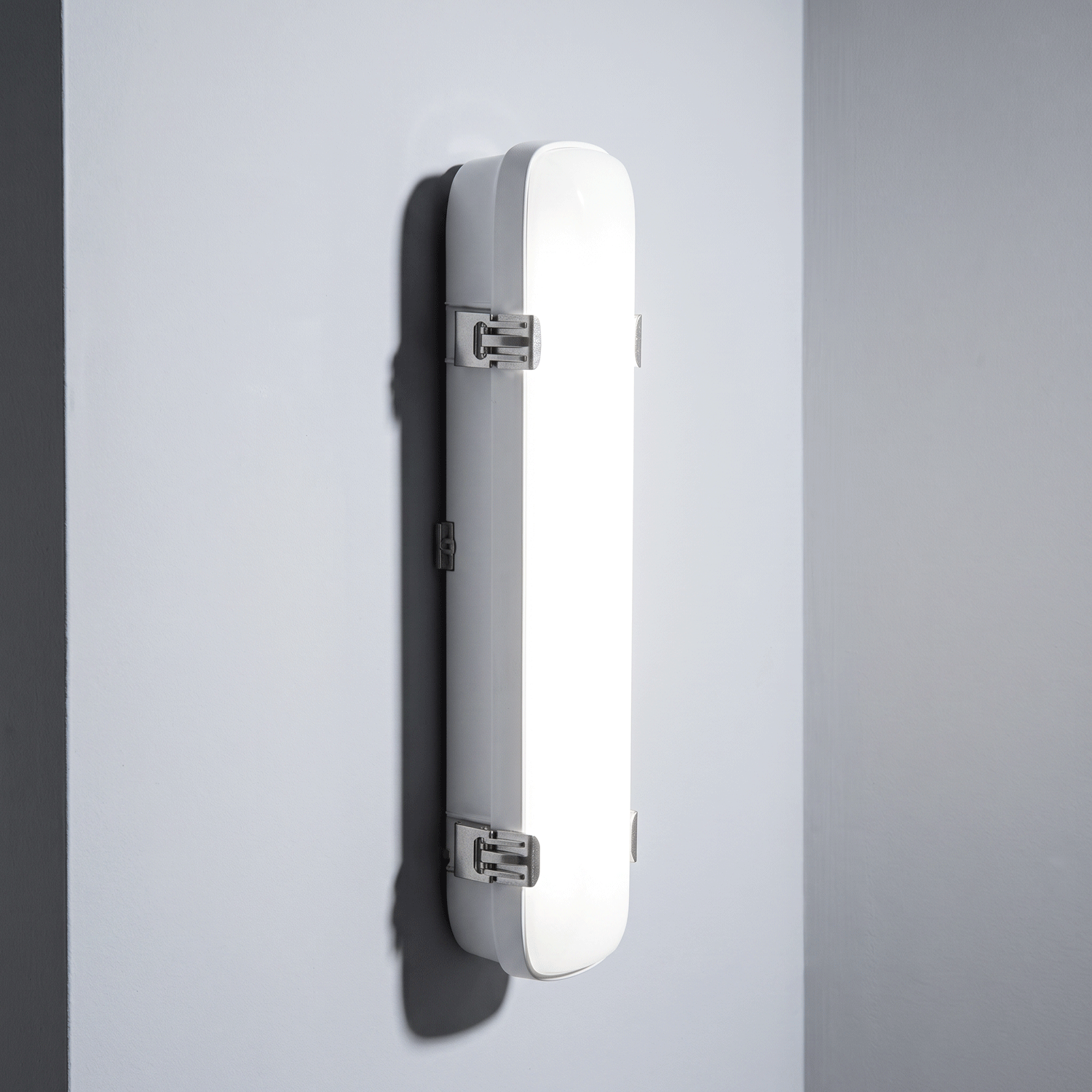

Surface mount, wall w/ brackets and screws
AL-LWP
Surface mount, ceiling w/ brackets and screws
SUSPENDED MOUNT
Ideal for open ceiling applications
RECESSED INSTALL
Clean integration into gypsum & grid ceilings
WALL MOUNTING
Perfect for walls
in corridors & decorative spaces
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (lm/W) | COLOR ACCURACY (CRI) |
|---|---|---|---|---|---|---|
| AL-LWP-4FT | 4FT | 26W | 3500K | 3,952 | 152 | 80 |
| AL-LWP-4FT | 4FT | 26W | 4000K | 4,082 | 157 | 80 |
| AL-LWP-4FT | 4FT | 26W | 5000K | 3,952 | 152 | 80 |
| AL-LWP-4FT | 4FT | 34W | 3500K | 5,134 | 151 | 81 |
| AL-LWP-4FT | 4FT | 34W | 4000K | 5,304 | 156 | 81 |
| AL-LWP-4FT | 4FT | 34W | 5000K | 5,134 | 151 | 81 |
| AL-LWP-4FT | 4FT | 40W | 3500K | 6,000 | 150 | 81 |
| AL-LWP-4FT | 4FT | 40W | 4000K | 6,200 | 155 | 81 |
| AL-LWP-4FT | 4FT | 40W | 5000K | 6,000 | 150 | 81 |
| AL-LWP-8FT | 8FT | 52W | 3500K | 8,008 | 154 | 80 |
| AL-LWP-8FT | 8FT | 52W | 4000K | 8,268 | 159 | 80 |
| AL-LWP-8FT | 8FT | 52W | 5000K | 8,008 | 154 | 80 |
| AL-LWP-8FT | 8FT | 68W | 3500K | 10,336 | 152 | 81 |
| AL-LWP-8FT | 8FT | 68W | 4000K | 10,676 | 157 | 81 |
| AL-LWP-8FT | 8FT | 68W | 5000K | 10,336 | 152 | 81 |
| AL-LWP-8FT | 8FT | 79W | 3500K | 12,000 | 150 | 81 |
| AL-LWP-8FT | 8FT | 79W | 4000K | 12,400 | 155 | 81 |
| AL-LWP-8FT | 8FT | 79W | 5000K | 12,000 | 150 | 81 |
PERFORMANCE
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|
CONTROLS & SENSORS
ACCESSORIES
Power Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Non-Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Surface Mount / Wall Mount Kit
(included with luminaire)
Field Installable Quick-Connect
Low Profile Sensor
5ft SO Cord, 5-Wire; 10' Power Cord Available
(ordered separately)
5ft SO Cord, 6-Wire for EM; 10'
Power Cord Available (ordered separately)
T-Grid Suspension Kit with 4” & 2”
Canopy Cover (ordered separately)
Non-Feed Suspension Kit with 2
Canopy Cover (inquire for availability)
Non-Feed Suspension Kit with Anchor Bracket
(inquire for availability)
Recessed Flanged Mount Kit, 8ft
(ordered separately)
Recessed Flanged Mount Kit, 4ft
(ordered separately)
Recessed Flanged Mount Kit, 2ft
(ordered separzately)
Soft Field-Cuttale Diffuer Lens, 49.2' per roll
(inquire for availability)
Documents & Download
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
COMPLIANCE
Logistics
COMPLIANCE
Logistics
PACKAGING CONFIGURATION:
X Units per Master Carton
MASTER CARTON DIMENSIONS:
X” L x X” W x X” H
MASTER CARTON WEIGHT:
X lbs
STANDARD PALLET QTY:
X Cartons (X Total Fixtures)
TOTAL PALLET WEIGHT:
X lbs (including skid)
PALLET DIMENSIONS & HEIGHT:
TBD (Non-Stackable)
SHIPPING CLASSIFICATION:
Freight Class 85 (LTL Highly Recommended for 10+ Cartons)
DELIVERY REQUIREMENT:
Liftgate required if no loading dock or no forklift is present on site
Packaging
| PACKAGING CONFIGURATION | AL-LWP-4FT | AL-LWP-8FT |
|---|---|---|
| Units per Master Carton | 4 | 4 |
| MASTER CARTON DIMENSIONS | 49.37″ L x 8.5″ W x 7.13″ H | 96.69″ L x 8.5″ W x 7.13″ H |
| MASTER CARTON WEIGHT (lbs) | 22.704 | 45.43 |
| STANDARD PALLET QTY | 45 Cartons (180 Total Fixtures) | 45 Cartons (180 Total Fixtures) |
| TOTAL PALLET WEIGHT (lbs) (including skid) Approx. | 1072.68 | 2145.35 |
| PALLET DIMENSIONS & HEIGHT | 48″ x 48″ x 70″ (Non-Stackable) | 98″ x 48″ x 73″ (Non-Stackable) |
| SHIPPING CLASSIFICATION | Freight Class 85 (LTL Highly Recommended for 10+ Cartons) | Freight Class 85 (LTL Highly Recommended for 10+ Cartons) |
| DELIVERY REQUIREMENT | Liftgate required if no loading dock or no forklift is present on site | Liftgate required if no loading dock or no forklift is present on site |
| Outer box dimensions(mm) | 1254*216*181 | 2456*216*191 |

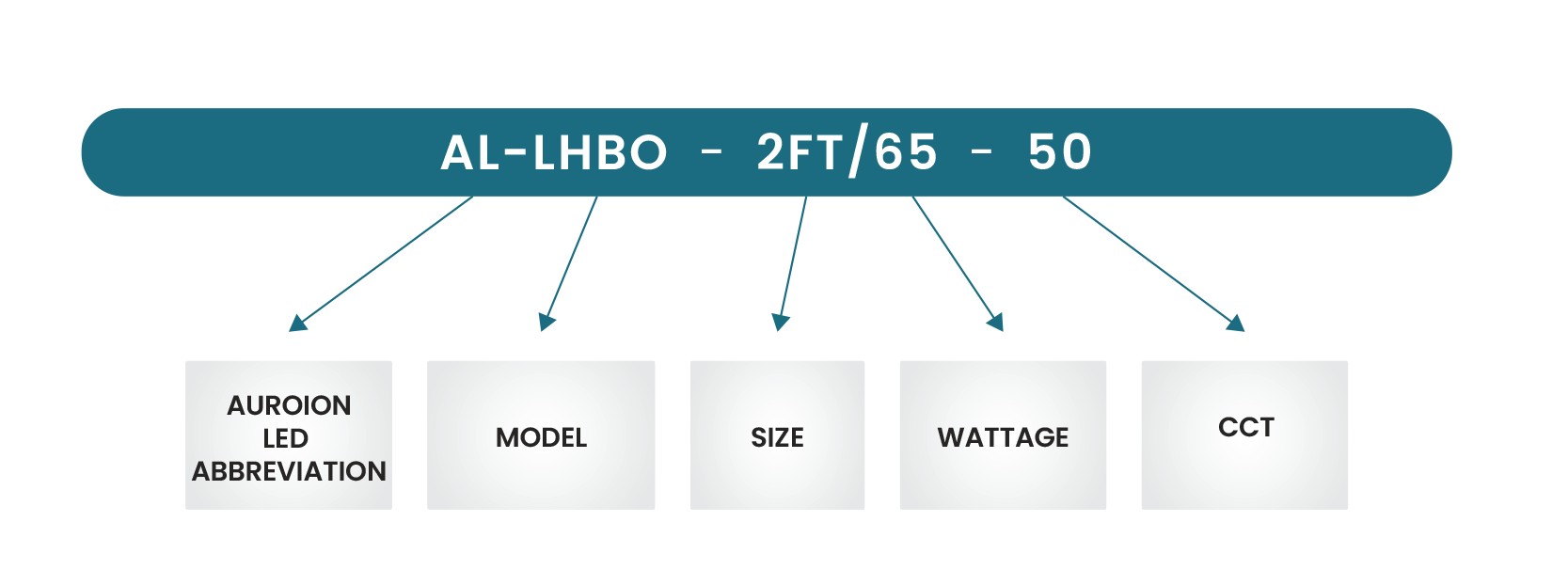

ORDERING MATRIX
ORDERING INFORMATION:
| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS |
|---|---|---|---|---|---|
| AL-LWP = VAPOR TIGHT LED LINEAR HIGHBAY | 4FT | 40/34/26W | CCT = 3500K, 4000K, 5000K | [BLANK] = 120–277V | AUX = 2.5MM AUX SENSOR |
| AL-LWP = VAPOR TIGHT LED LINEAR HIGHBAY | 4FT | 40/34/26W | CCT = 3500K, 4000K, 5000K | HV = 277–480V | AUX = 2.5MM AUX SENSOR |
| AL-LWP = VAPOR TIGHT LED LINEAR HIGHBAY | 8FT | 80/68/52W | CCT = 3500K, 4000K, 5000K | [BLANK] = 120–277V | AUX = 2.5MM AUX SENSOR |
| AL-LWP = VAPOR TIGHT LED LINEAR HIGHBAY | 8FT | 80/68/52W | CCT = 3500K, 4000K, 5000K | HV = 277–480V | AUX = 2.5MM AUX SENSOR |
ACCESSORIES (SHIPPED SEPARATELY)
| MODEL | PRODUCT # | PRODUCT DESCRIPTION |
|---|---|---|
| AL-LHB | AL-EM-B-15-LV | 15W YH EM Battery Back for Vapor Tight Highbay Fixture, 120-347V |
| AL-LHB | ANT-3C | Sharkward ANT-3C including harness |
Ordering Matrix
ORDERING INFORMATION: AL-AFX-S
| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | EM = EMERGENCY BACKUP | WH = WHITE |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 4FT | 40/32/24/20W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | PIR = BI-LEVEL MOTION SENSOR | BL = BLACK |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 8FT | 80/64/48/40W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | CC = CUSTOM COLOR |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | LC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | TC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | XC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
ACCESSORIES (SHIPPED SEPARATELY)
| PRODUCT # | PRODUCT DESCRIPTION |
|---|---|
| AL-AFX-S-PT-5WCORD-10FT-WH | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-5WCORD-10FT-BK | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-6WCORD-10FT-WH | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-6WCORD-10FT-BK | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-TGT | GRID SUSPENSION KIT |
| AL-AFX-S-PT-RMK-2FT | 2FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-4FT | 4FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-8FT | 8FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-DSB-WH | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (WHITE) |
| AL-AFX-S-PT-DSB-BK | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (BLACK) |
