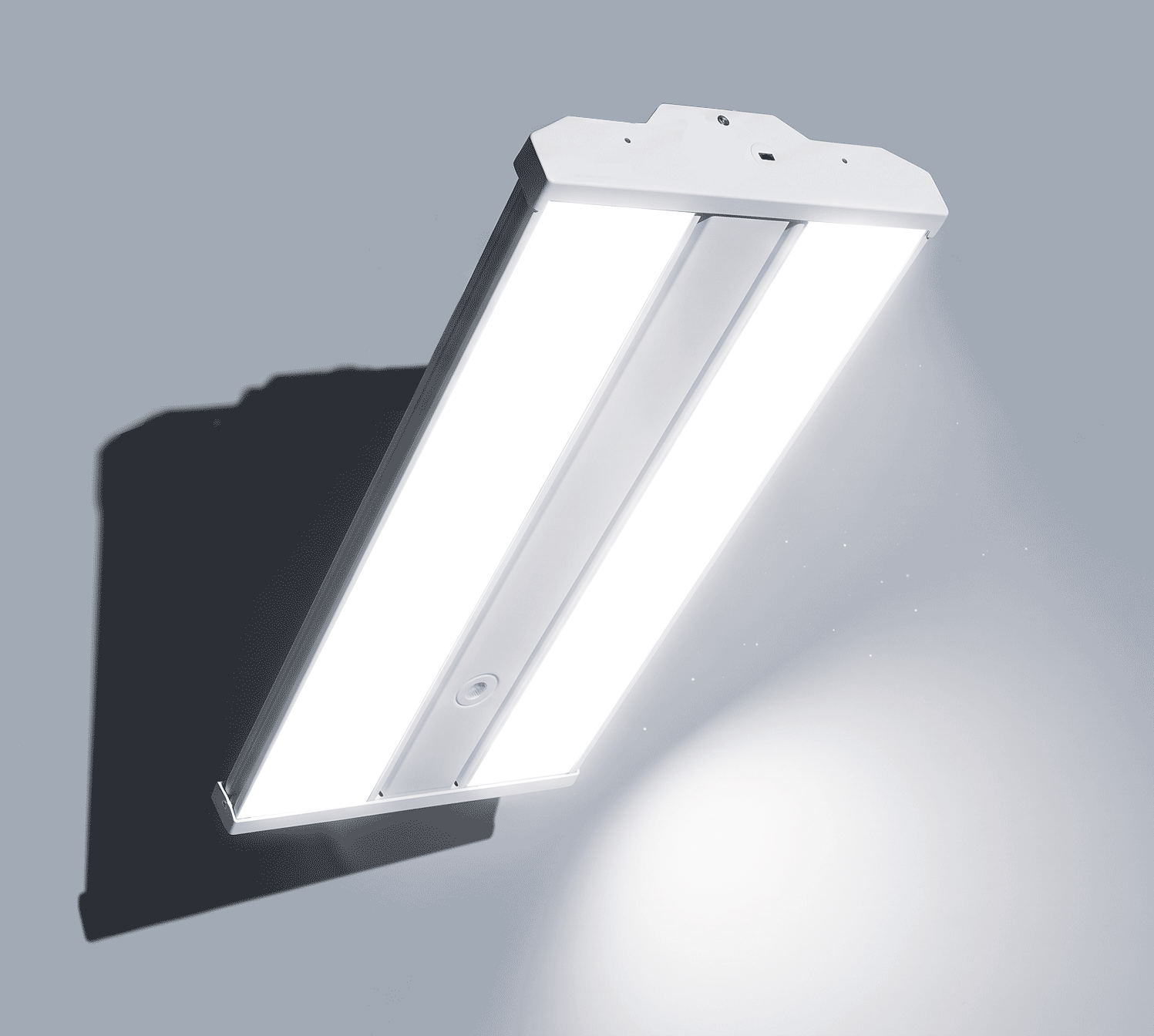

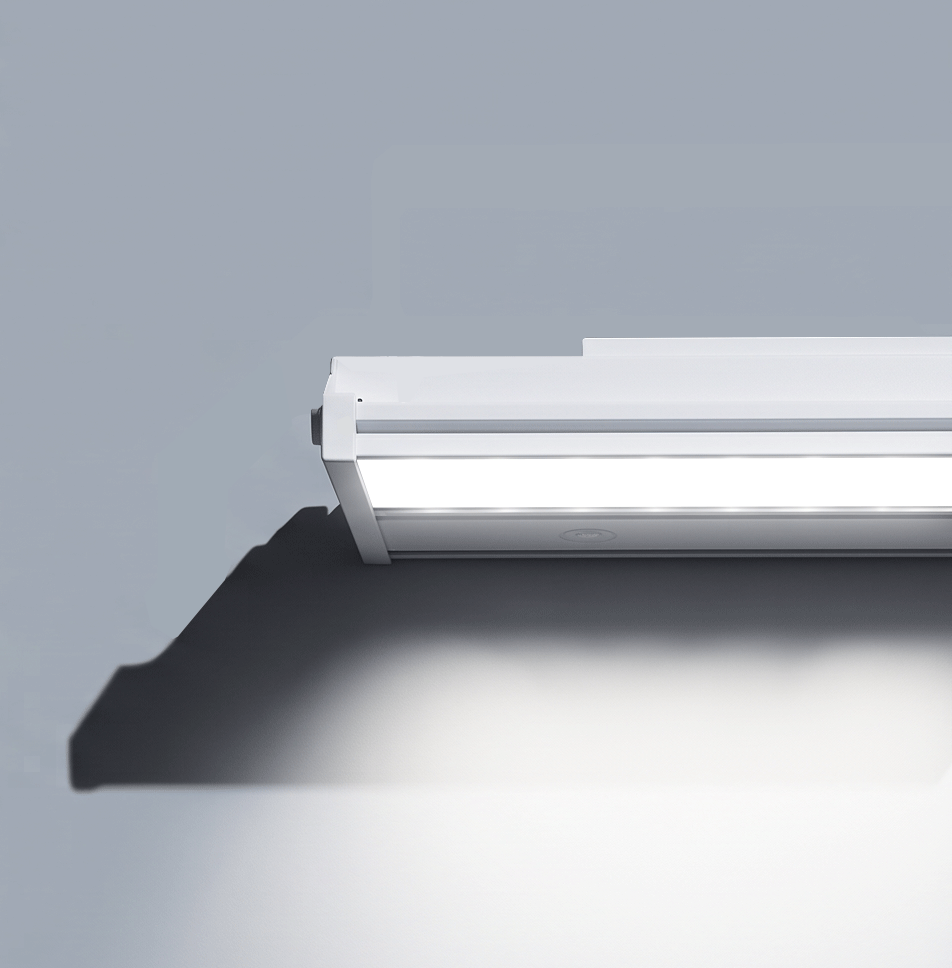

NOVA CORE PROLINEAR HIGH BAY, SENSOR-READY
SKU:
AL-LHB
QUICK INFO:
Certified:
UL • DLC 6.0P • RoHS • Title 24 JA8
Lengths:
2 FT • 4 FT • 8 FT
CCT:
5 CCT Field Adjustable, 2700–5000K
Wattage:
4-Wattage, selectable 10–80W
Lumens:
3250 lm / 4550 lm / 6500 lm / 13000 lm
Finishes:
White
Black
Bronze
SKU:AL-LHB
Quick info:
Certified:
UL • DLC 6.0P • RoHS
Lengths:
1.5 FT • 2 FT • 3 FT
CCT:
2 CCT Field Adjustable, 4000–5000K
Wattage:
3-Wattage, selectable 100–270W
Lumens:
14,700 lm – 41,300 lm
Finishes:
White
Applications:
Open-Plan Corporate Offices / Conference Rooms / Boardrooms / Medical Clinics / Dental / Clinics /
Retail Showrooms / Supermarkets / K-12 Classrooms / Lecture Halls / University / Libraries / Study Areas
/ Hospital Corridors / Nurses’ Stations / Government Offices / Municipal Buildings / Electronic Assembly
Lines / Cleanrooms / Commercial Kitchens / Food Prep Areas (Dry Zones) / Climate-Controlled
Warehouses / Fulfillment Picking Hubs / Commercial Garages / Loading Control Rooms
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 – 60Hz rating
120-480V option available 6kV surge protection
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V
AUX integrated driver ranges from 0.1V to 0.5V
Construction
Stamped metal housing Long-lasting
powder coated paint for enhanced
durability Frosted PC glare-control lens
Performance
Suitable for damp locations Suitable for
installation in insulated ceilings (IC Rated) when
input power 100/115/135/155/185/200/230/270W 5CCT
Field Adjustable: 4000K, 5000K
Accurate colors: CRI≥80 Flicker-free 0-10V dimming capability,
down to 10% Operating temp range -40°F to 122°F (-40°C to 50°C)
Long-life, high-efficacy, micro-power leds
Lumen Maintenance, L70 > 100,000 hours Power
Factor: ≥0.9 for stable performance
Total Harmonic Distortion: <20%
Certifications & Regulatory
UL Listed for Damp Location DLC 6.0 P
Warranty
5 Year Labor Warranty (see complete warranty terms for details)
KEY FEATURES
LINE DRAWING
Mounting

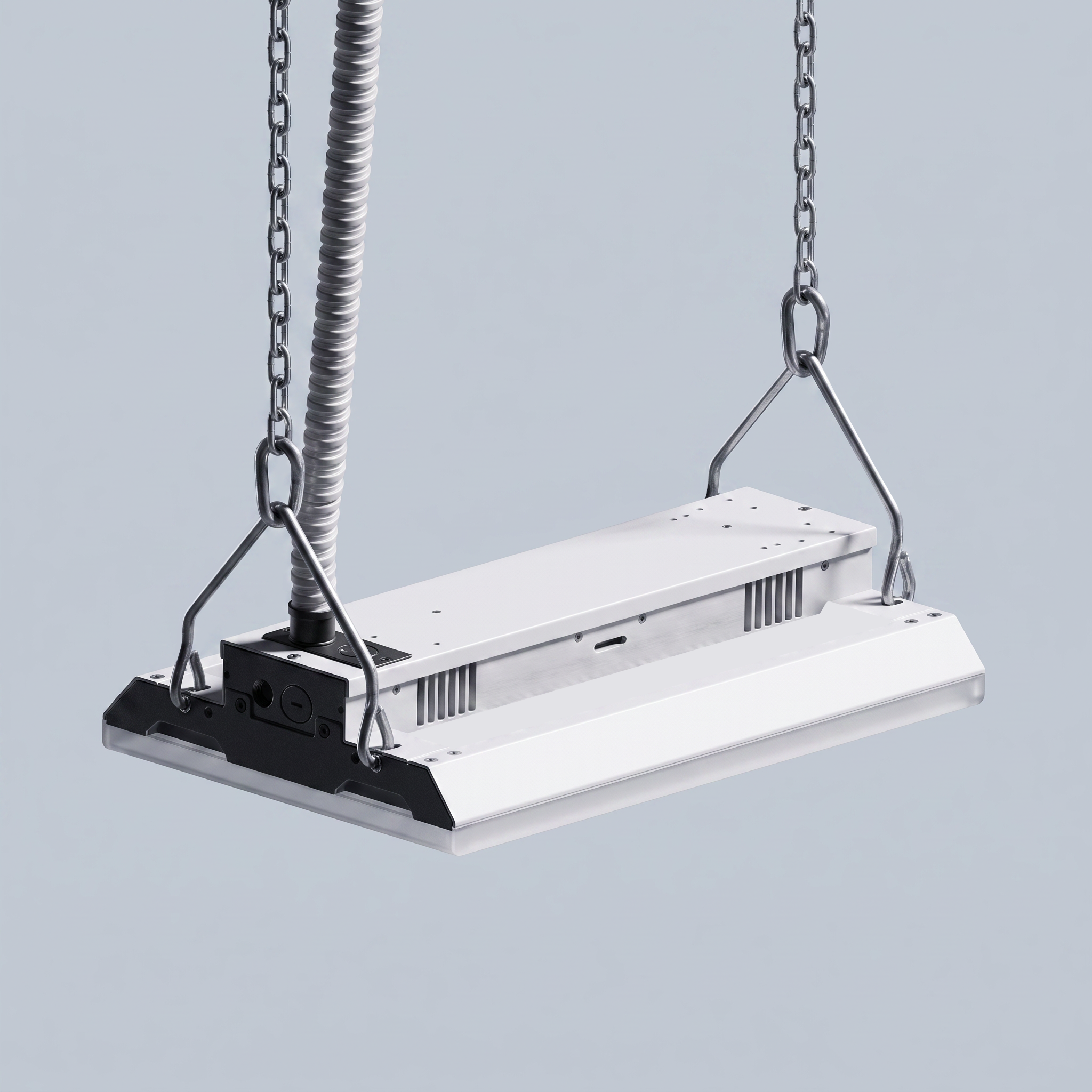

V-HOOK SUSPENDED MOUNT
Easy to hang. Fast adjust & level. Holds the light fixture safely. Simple to install without extra tools.

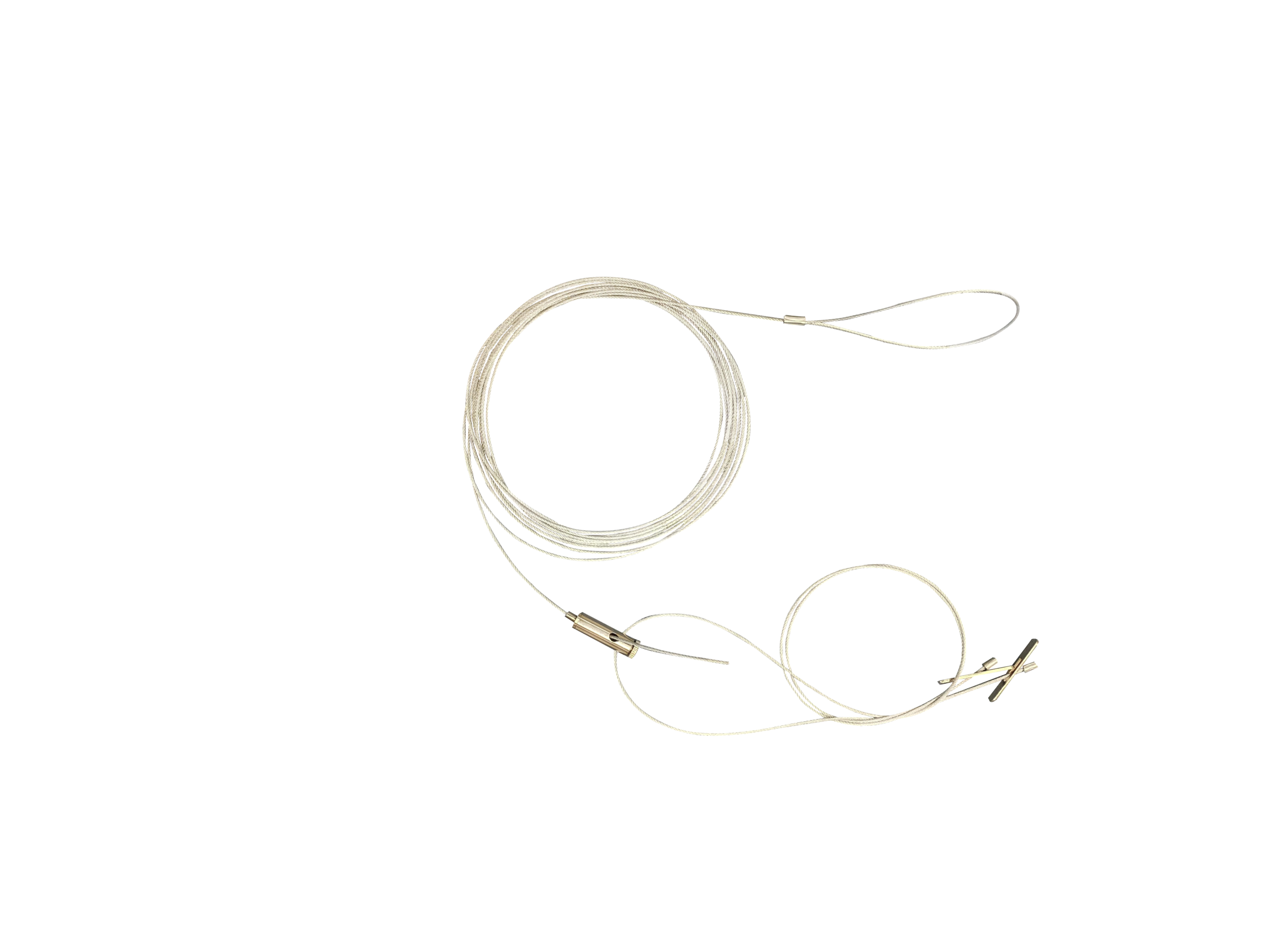

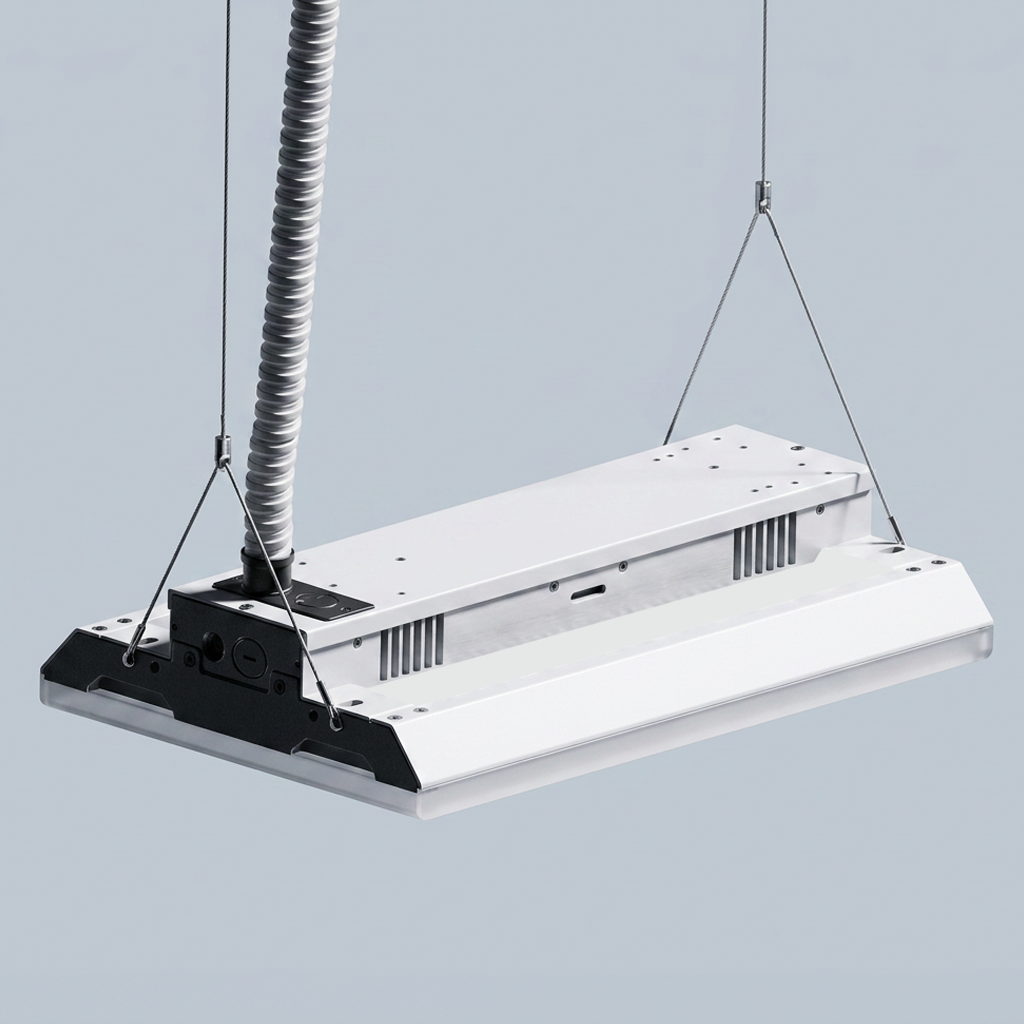

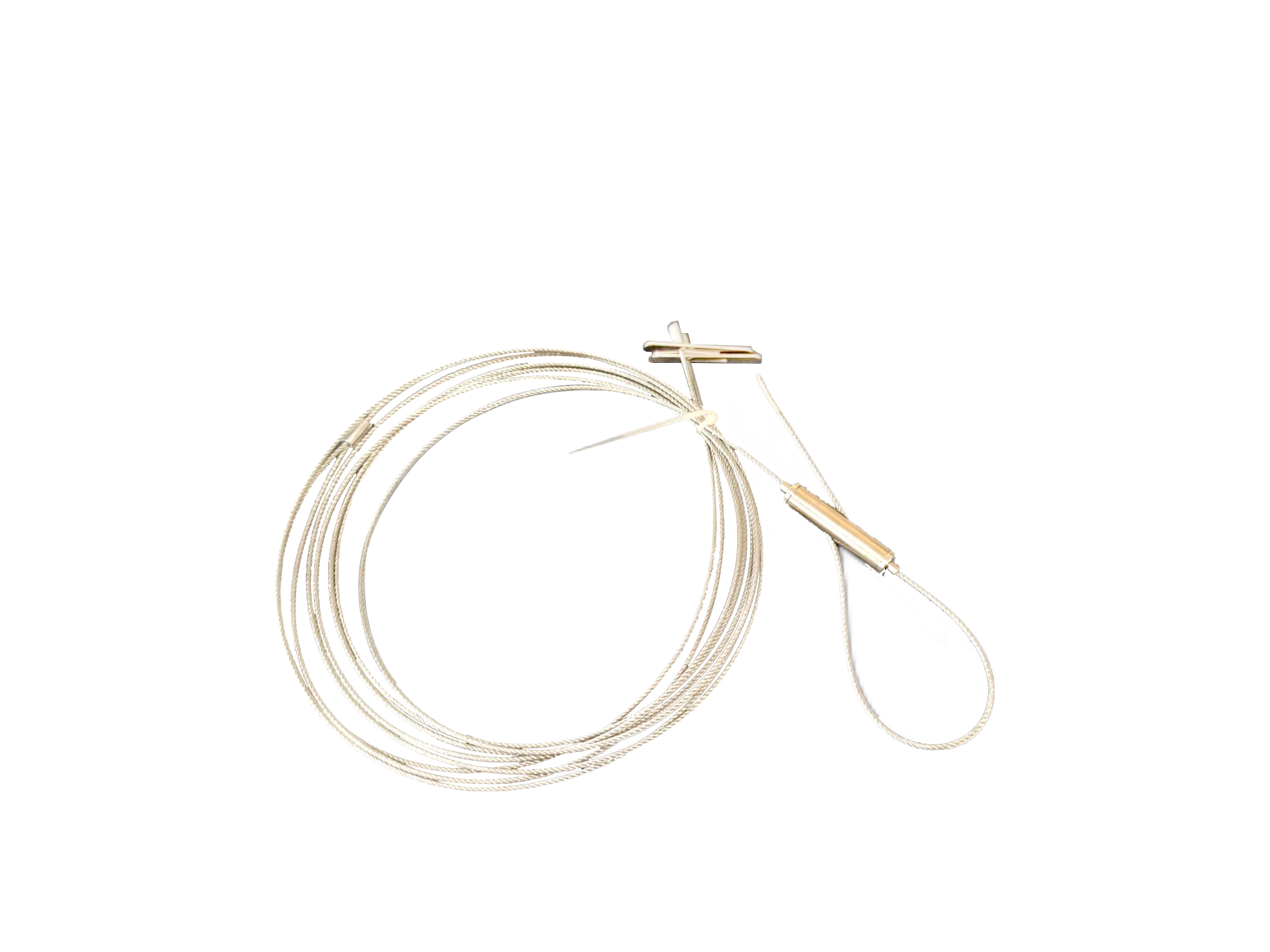

AIRCRAFT-CABLE SUSPENDED MOUNTING
Adjustable height to change hang height, helps spread light evenly across large spaces, easy setup on high or open ceilings.

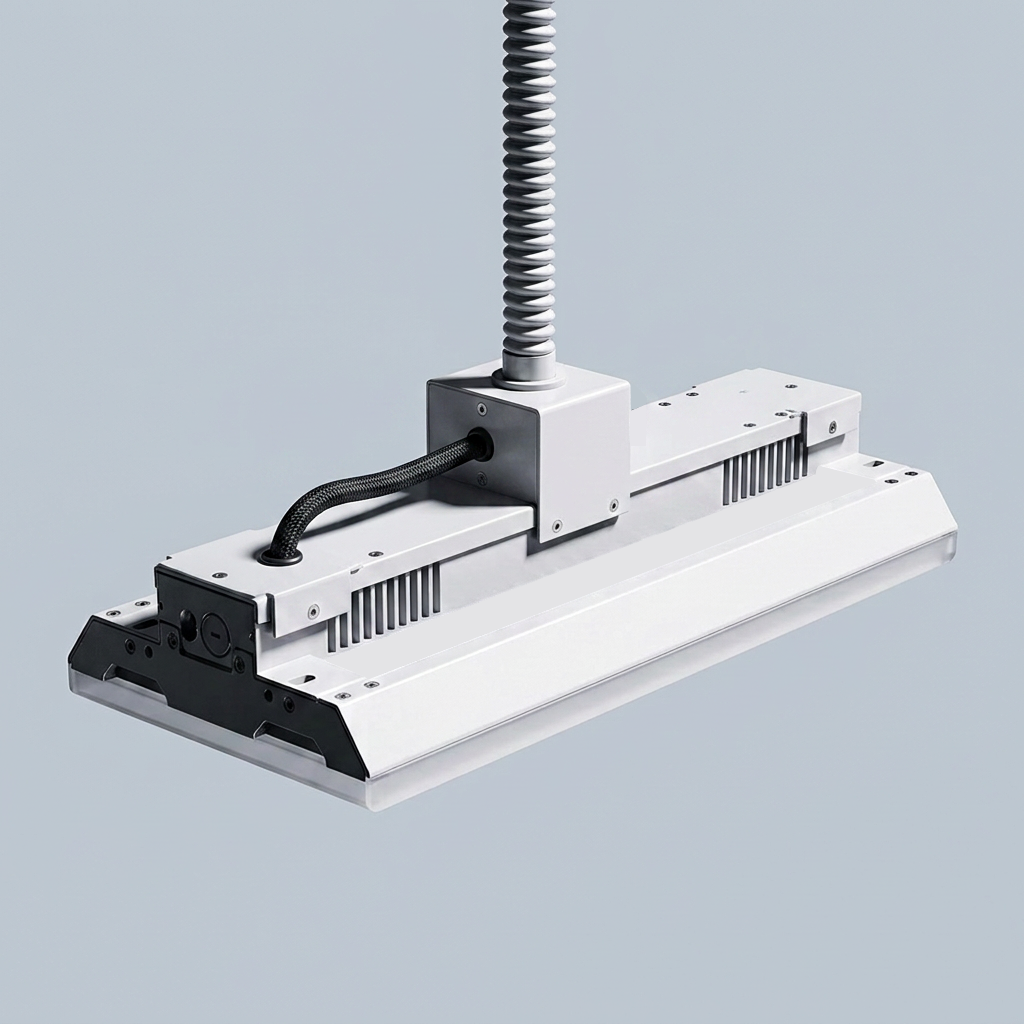

PENDANT MOUNT
Drops light closer to floor. Focuses light straight down to work spaces. Easy setup on open or high ceilings. Hides wires inside hanging rod for a clean look.

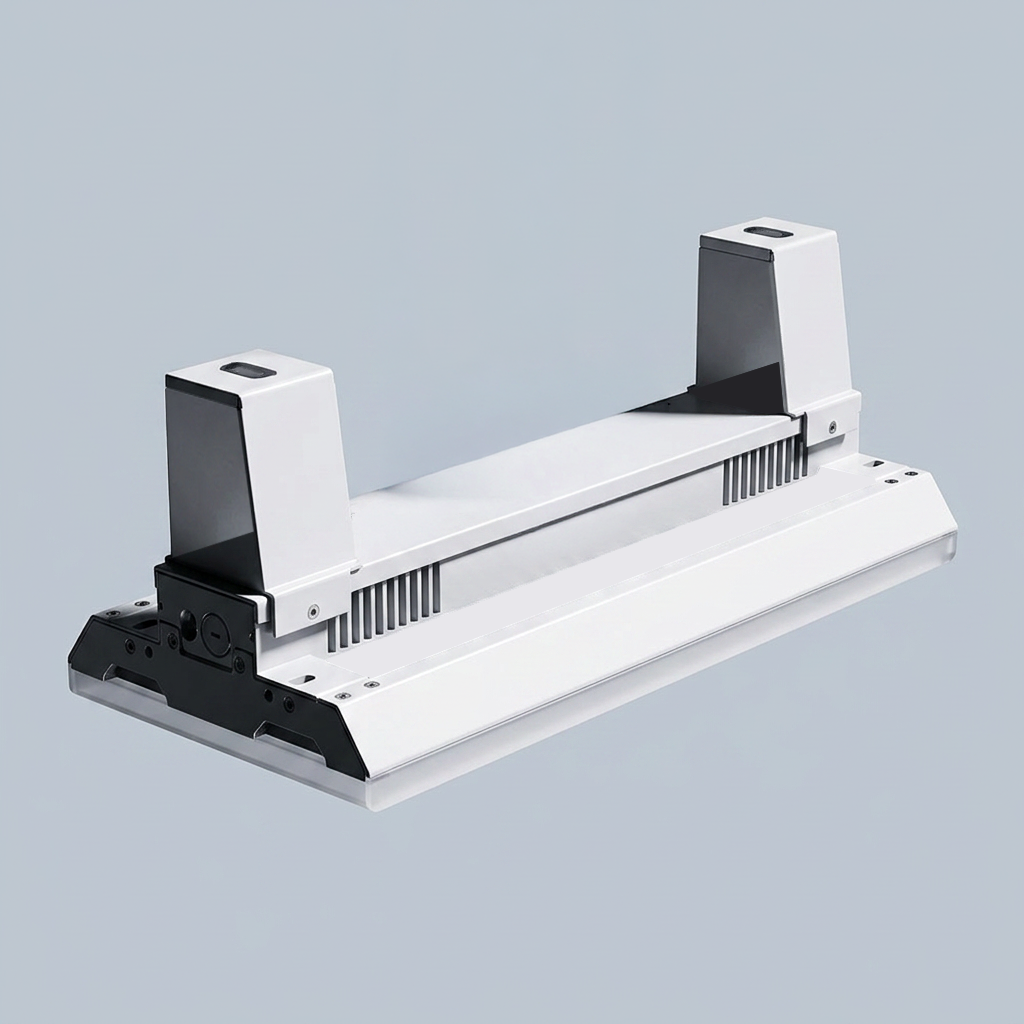

SURFACE MOUNT
Keeps fixtures tight to ceiling where space is low. Hides extra hanging hardware for a clean look. Locks the light firmly in place against bumps.
SUSPENDED MOUNT
Ideal for open ceiling applications
RECESSED INSTALL
Clean integration into gypsum & grid ceilings
WALL MOUNTING
Perfect for walls
in corridors & decorative spaces
performance
PERFORMANCE
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|
CONTROLS & SENSORS
ACCESSORIES
Power Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Non-Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Surface Mount / Wall Mount Kit
(included with luminaire)
Field Installable Quick-Connect
Low Profile Sensor
Power Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Non-Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Power Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Non-Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Surface Mount / Wall Mount Kit
(included with luminaire)
Field Installable Quick-Connect
Low Profile Sensor
5ft SO Cord, 5-Wire; 10' Power Cord Available
(ordered separately)
5ft SO Cord, 6-Wire for EM; 10'
Power Cord Available (ordered separately)
T-Grid Suspension Kit with 4” & 2”
Canopy Cover (ordered separately)
Non-Feed Suspension Kit with 2
Canopy Cover (inquire for availability)
Non-Feed Suspension Kit with Anchor Bracket
(inquire for availability)
Recessed Flanged Mount Kit, 8ft
(ordered separately)
Recessed Flanged Mount Kit, 4ft
(ordered separately)
Recessed Flanged Mount Kit, 2ft
(ordered separzately)
Soft Field-Cuttale Diffuer Lens, 49.2' per roll
(inquire for availability)
Documents & Download

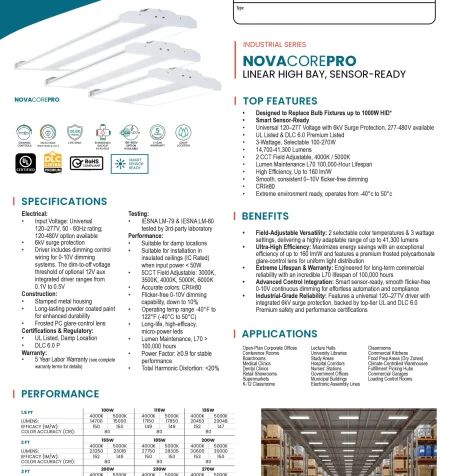

SPECS SHEET
FIELD-ADJUST GUIDE
ies files
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
COMPLIANCE
Logistics
COMPLIANCE
Logistics
PACKAGING CONFIGURATION:
X Units per Master Carton
MASTER CARTON DIMENSIONS:
X” L x X” W x X” H
MASTER CARTON WEIGHT:
X lbs
STANDARD PALLET QTY:
X Cartons (X Total Fixtures)
TOTAL PALLET WEIGHT:
X lbs (including skid)
PALLET DIMENSIONS & HEIGHT:
TBD (Non-Stackable)
SHIPPING CLASSIFICATION:
Freight Class 85 (LTL Highly Recommended for 10+ Cartons)
DELIVERY REQUIREMENT:
Liftgate required if no loading dock or no forklift is present on site
Packaging
| PACKAGING CONFIGURATION | AL-LHB-1.5FT | AL-LHB-2FT | AL-LHB-3FT |
|---|---|---|---|
| Units per Master Carton | 4 | 4 | 4 |
| MASTER CARTON DIMENSIONS | 17.83″ L x 8.66″ W x 11.02″ H | 24.21″ L x 11.89″ W x 11.1″ H | 32.4″ L x 8.66″ W x 11.02″ H |
| MASTER CARTON WEIGHT (lbs) | 22.15 | 25.45 | 34.74 |
| STANDARD PALLET QTY | 60 Cartons (240 Total Fixtures) | 36 Cartons (144 Total Fixtures) | 30 Cartons (120 Total Fixtures) |
| TOTAL PALLET WEIGHT (lbs) (including skid) Approx. | 1380 | 967 | 1143 |
| PALLET DIMENSIONS & HEIGHT | 48″ x 40″ x 71″ (Non-Stackable) | 48″ x 40″ x 71″ (Non-Stackable) | 48″ x 40″ x 71″ (Non-Stackable) |
| SHIPPING CLASSIFICATION | Freight Class 85 (LTL Highly Recommended) | Freight Class 85 (LTL Highly Recommended) | Freight Class 85 (LTL Highly Recommended) |
| DELIVERY REQUIREMENT | Liftgate required if no loading dock | Liftgate required if no loading dock | Liftgate required if no loading dock |
| Outer box dimensions(mm) | 453*220*280 | 615*302*282 | 823*220*280 |

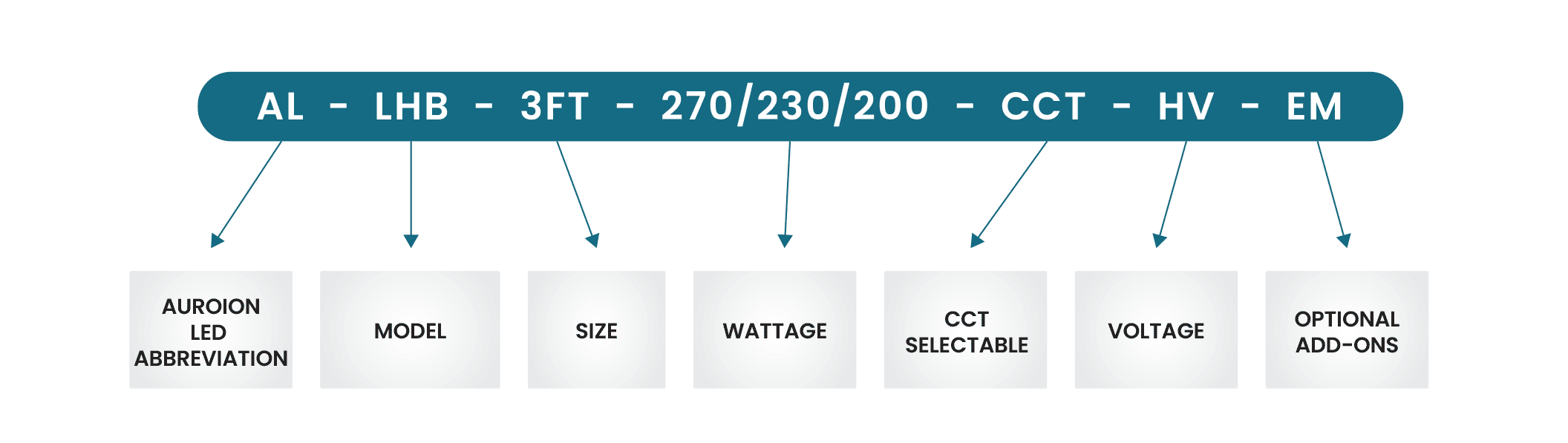

ORDERING MATRIX
ORDERING INFORMATION: AL-LHB
| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS |
|---|---|---|---|---|---|
| AL-LHB = LINEAR HIGH BAY, SENSOR- READY | 1.5FT | 135/115/100W | 50 = 5000K | [BLANK] = 120-277V | EM = BATTERY BACKUP |
| AL-LHB = LINEAR HIGH BAY, SENSOR- READY | 1.5FT | 135/115/100W | CCT = 4000K, 5000K | HV = 277- 480V | MS = BI-LEVEL MOTION SENSOR 3.5MM AUX 12VDC |
| AL-LHB = LINEAR HIGH BAY, SENSOR- READY | 2FT | 155W | 50 = 5000K | [BLANK] = 120-277V | – |
| AL-LHB = LINEAR HIGH BAY, SENSOR- READY | 2FT | 200/185/155W | CCT = 4000K, 5000K | HV = 277- 480V | – |
| AL-LHB = LINEAR HIGH BAY, SENSOR- READY | 3FT | 270/230/200W | CCT = 4000K,5000K | [BLANK] = 120-277V | – |
| AL-LHB = LINEAR HIGH BAY, SENSOR- READY | 1.5FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | – |
ACCESSORIES (SHIPPED SEPARATELY)
| PRODUCT # | PRODUCT DESCRIPTION |
|---|---|
| AL-LHB AL-HB-PT-CSMK- 10FT | 10FT AIRCRAFT CABLE SUSPENDING MOUNTING KIT |

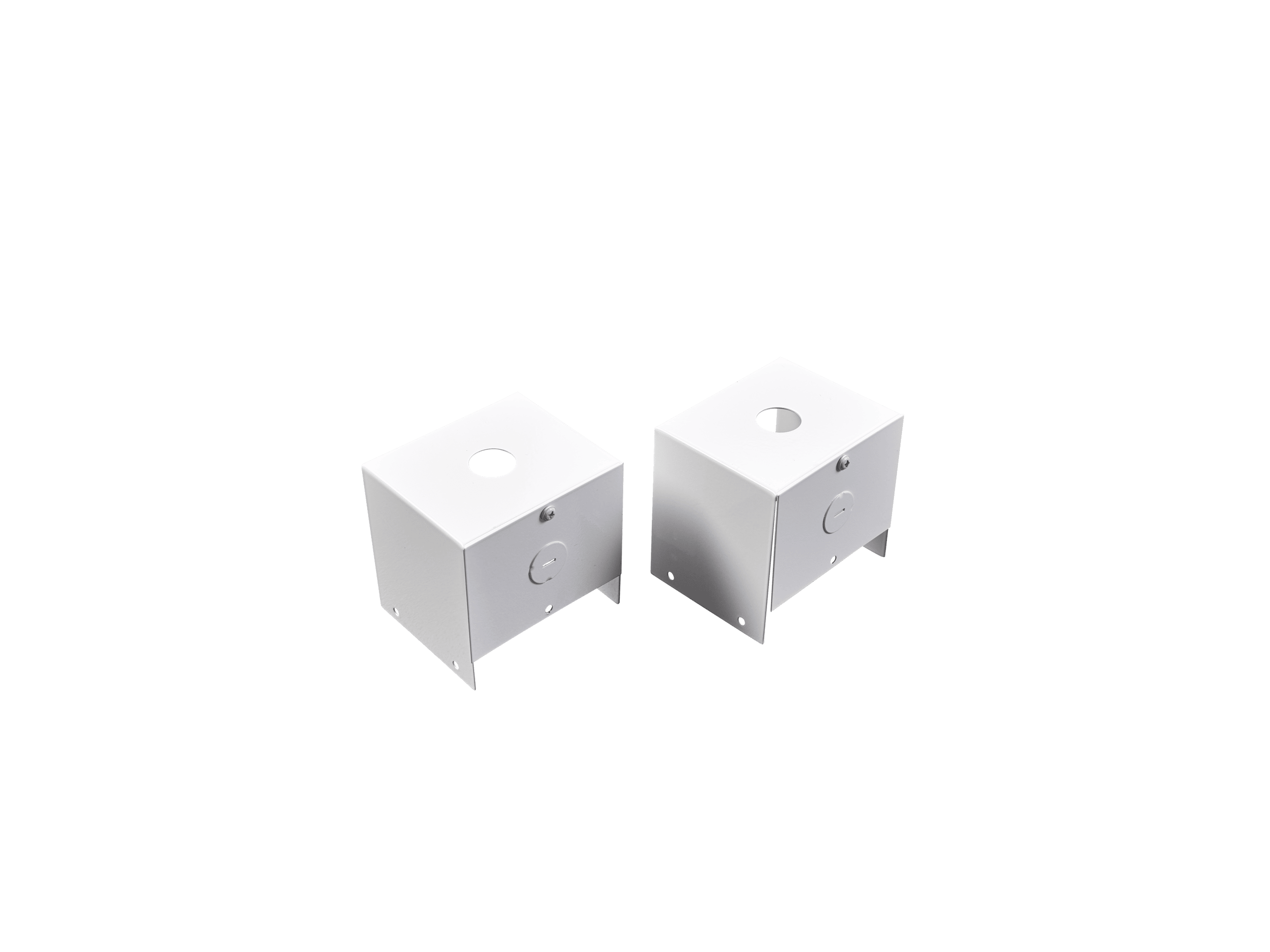

| AL-LHB AL-HB-PT-PMK | PENDANT MOUNT KIT |
| AL-LHB AL-HB-PT-SMK | SURFACE MOUNT KIT |
| AL-LHB AL-HB-PT-WG- 1.5FT | WIREGUARD FOR AL-LHB-1.5FT |
| AL-LHB AL-HB-PT-WG-2FT | WIREGUARD FOR AL-LHB-2FT |
| AL-LHB AL-HB-PT-WG-3FT | WIREGUARD FOR AL-LHB-3FT |
| AL-LHB AL-EM-A-15-LV | 15W YH EM BATTERY BACKUP 100–277V |
| AL-LHB AL-EM-A-24-LV | 24W YH EM BATTERY BACKUP 100–277V |
| AL-LHB AL-HB-PT-EMBB | EM BATTERY BACKUP INSTALLATION BRACKET |
Ordering Matrix
ORDERING INFORMATION: AL-AFX-S
| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | EM = EMERGENCY BACKUP | WH = WHITE |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 4FT | 40/32/24/20W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | PIR = BI-LEVEL MOTION SENSOR | BL = BLACK |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 8FT | 80/64/48/40W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | CC = CUSTOM COLOR |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | LC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | TC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | XC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
ACCESSORIES (SHIPPED SEPARATELY)
| PRODUCT # | PRODUCT DESCRIPTION |
|---|---|
| AL-AFX-S-PT-5WCORD-10FT-WH | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-5WCORD-10FT-BK | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-6WCORD-10FT-WH | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-6WCORD-10FT-BK | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-TGT | GRID SUSPENSION KIT |
| AL-AFX-S-PT-RMK-2FT | 2FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-4FT | 4FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-8FT | 8FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-DSB-WH | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (WHITE) |
| AL-AFX-S-PT-DSB-BK | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (BLACK) |
