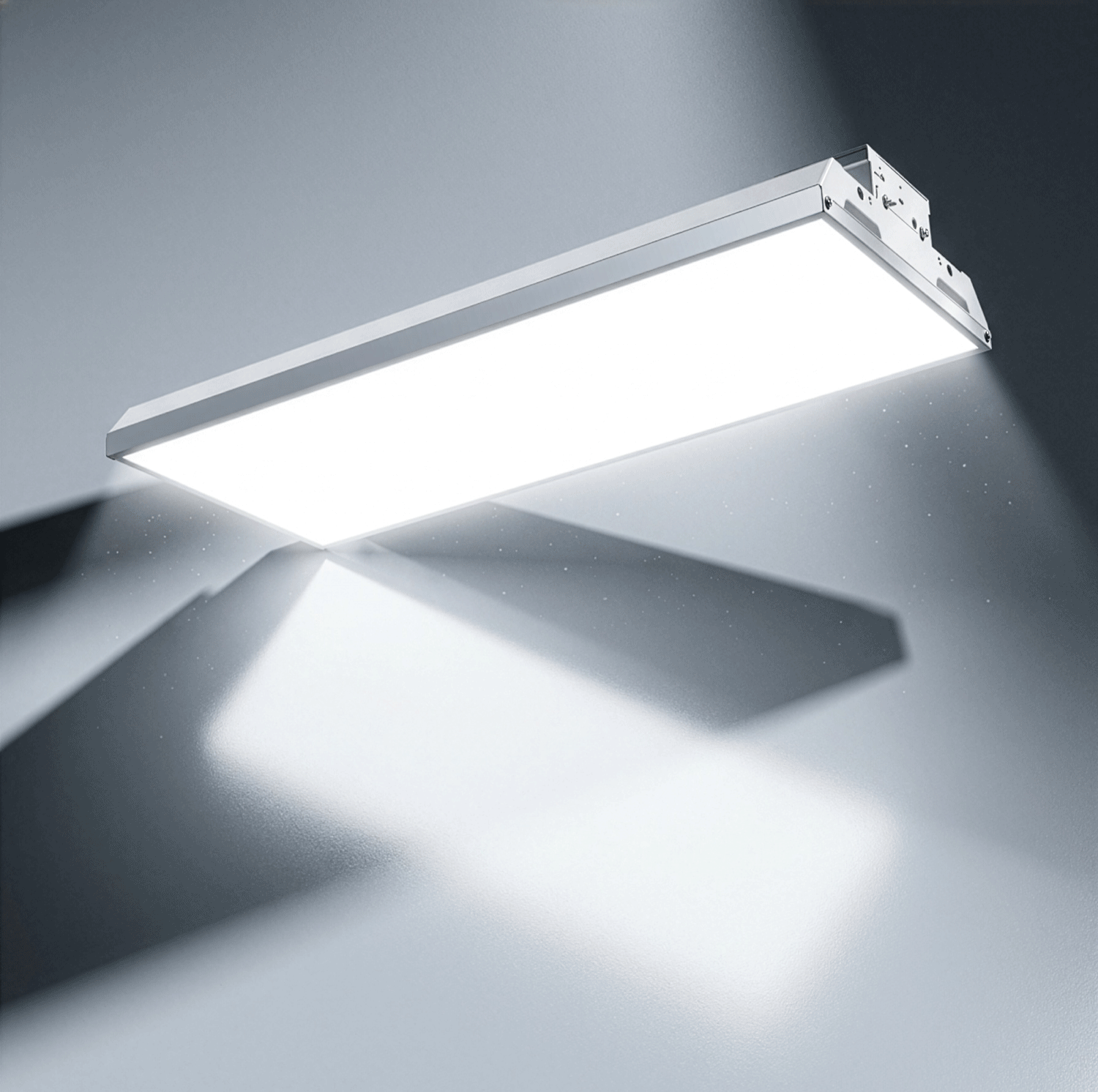

AL-LHBO
QUICK INFO:
SKU:AL-LHBO
Quick info:
Applications:
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 – 60Hz rating
Power Factor: Driver includes dimming control wiring
for 0-10V dimming systems. The dim-to-off
voltage threshold of optional 12V
AUX integrated driver ranges from 0.1V to 0.5V
Construction
Stamped sheet metal housing
Highly durable white finish
Frosted PMMA Lens
Performance
Suitable for damp locations
CCT 5000K
Accurate colors: CRI≥80
Flicker-free 0-10V dimming capability, down to 10%
Operating temp range -4°F to 122°F (-20°C to 50°C)
Long-life, high-efficacy, micro-power leds
Lumen Maintenance, L70 > 100,000 hours
Power Factor: ≥0.9 for stable performance
Certifications & Regulatory
UL Listed for Damp Location
DLC 6
Warranty
5 Year Labor Warranty (see complete warranty terms for details)
Testing
IESNA LM-79 & IESNA LM-80 tested by 3rd-party laboratory
KEY FEATURES

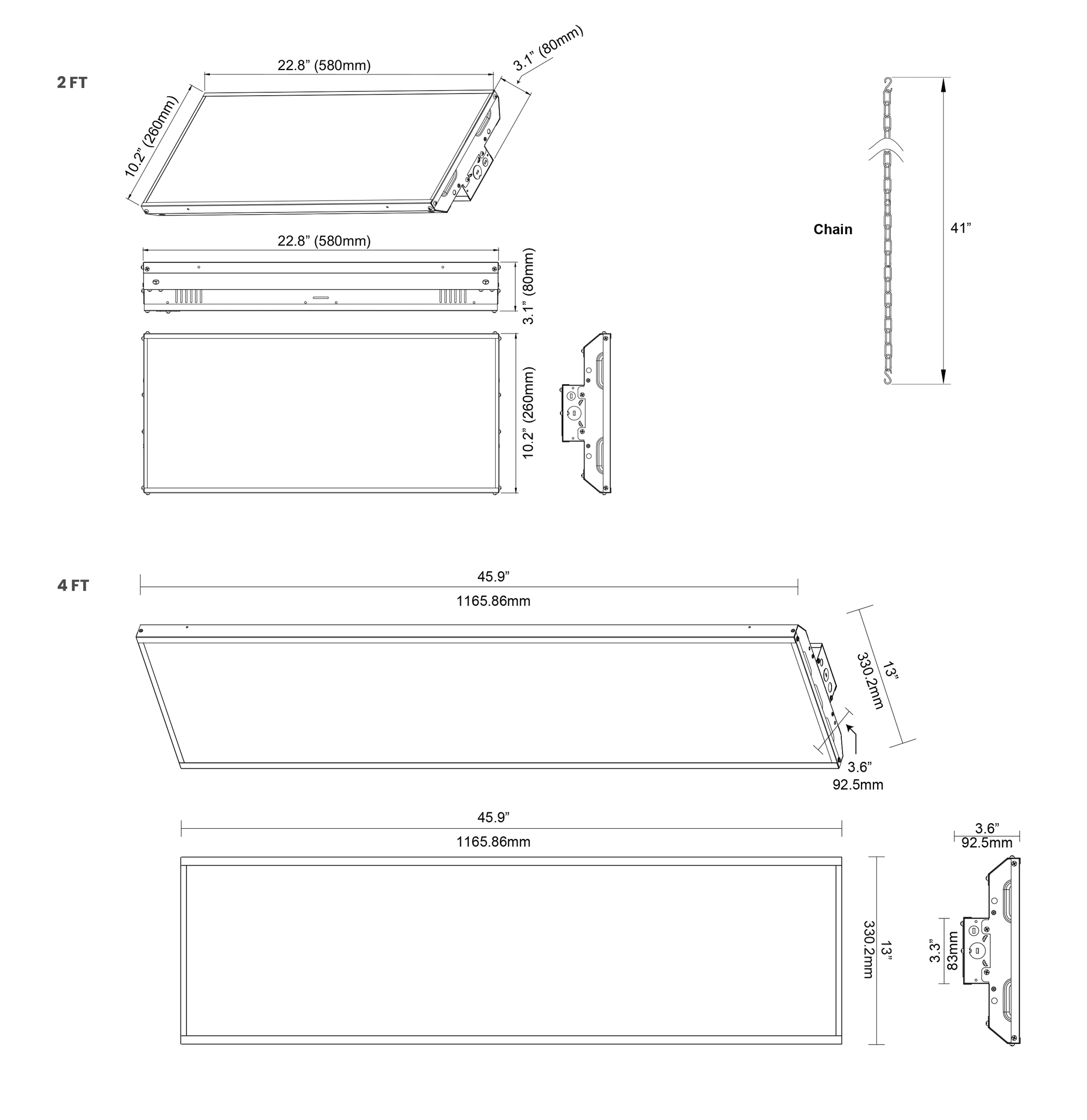

LINE DRAWING
Mounting

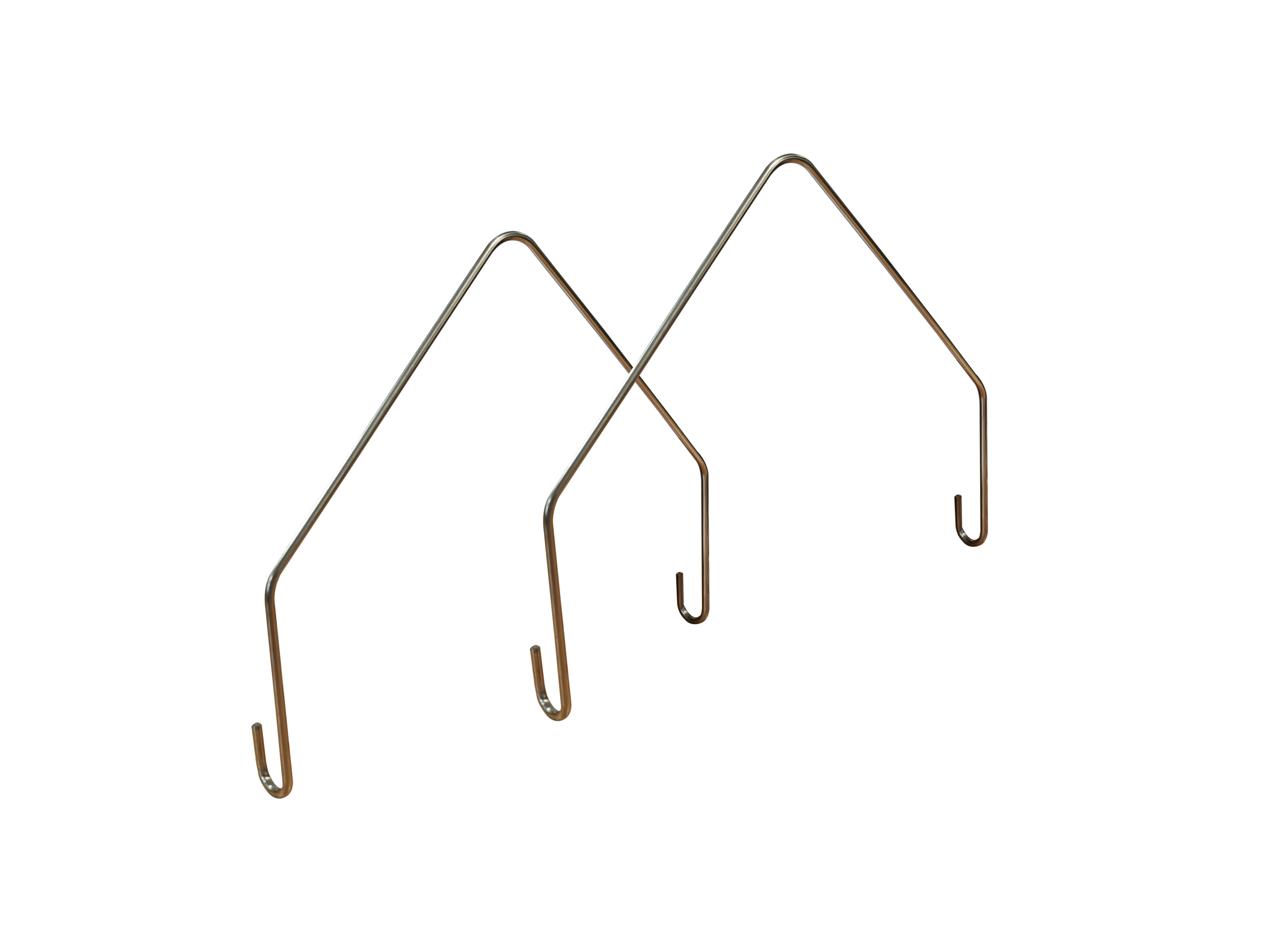

V-HOOK SUSPENDED MOUNT
Easy to hang. Fast adjust & level. Holds the light fixture safely. Simple to install without extra tools.
AIRCRAFT-CABLE SUSPENDED MOUNTING
Adjustable height to change hang height, helps spread light evenly across large spaces, easy setup on high or open ceilings.
PENDANT MOUNT
Drops light closer to floor. Focuses light straight down to work spaces. Easy setup on open or high ceilings. Hides wires inside hanging rod for a clean look.

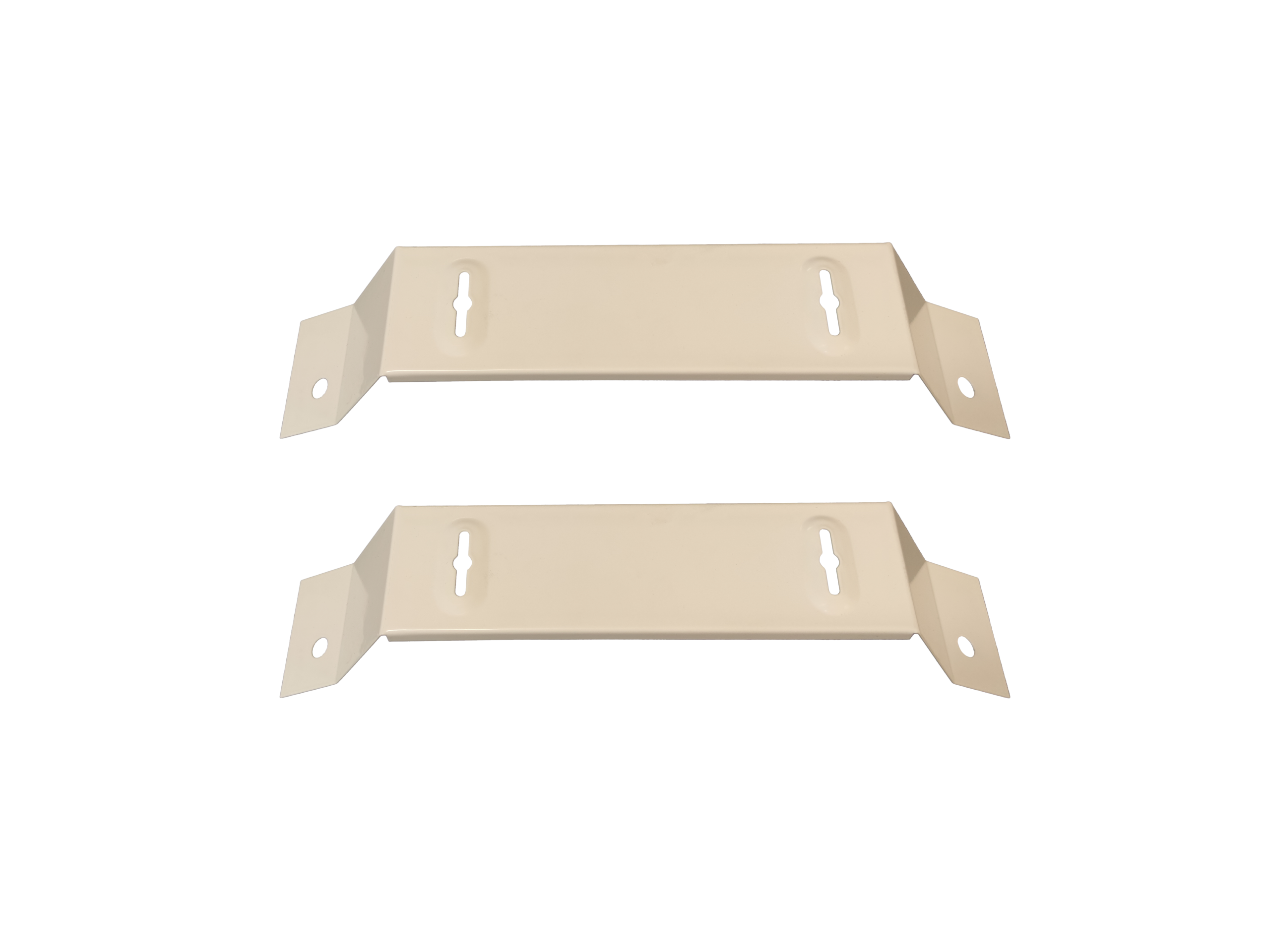

SURFACE MOUNT
Keeps fixtures tight to ceiling where space is low. Hides extra hanging hardware for a clean look. Locks the light firmly in place against bumps.
SUSPENDED MOUNT
Ideal for open ceiling applications
RECESSED INSTALL
Clean integration into gypsum & grid ceilings
WALL MOUNTING
Perfect for walls
in corridors & decorative spaces
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (lm/W) | COLOR ACCURACY (CRI) |
|---|---|---|---|---|---|---|
| AL-LHBO-2FT/155-50 | 2 FT | 155W | 5000K | 23,250 | 150 | 80 |
| AL-LHBO-4FT/320-CCT | 4 FT | 320W | 5000K | 48,000 | 150 | 80 |
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|
CONTROLS & SENSORS
AL-LHBO-155/320
Ideal for open ceiling applications
AL-LHBO-155/320
Clean integration into gypsum & grid ceilings
AL-LHBO-155/320
Perfect for walls
in corridors & decorative spaces
ACCESSORIES
AL-LHBO-155/320
AL-LHBO-155/320
AL-LHBO-155/320
AL-LHBO-155/320
Power Feed Suspension Kit with 4
Non-Feed Suspension Kit with 4
Surface Mount / Wall Mount Kit
Field Installable Quick-Connect
5ft SO Cord, 5-Wire; 10' Power Cord Available
(ordered separately)
5ft SO Cord, 6-Wire for EM; 10'
Power Cord Available (ordered separately)
T-Grid Suspension Kit with 4” & 2”
Non-Feed Suspension Kit with 2
Non-Feed Suspension Kit with Anchor Bracket
Recessed Flanged Mount Kit, 8ft
Recessed Flanged Mount Kit, 4ft
Recessed Flanged Mount Kit, 2ft
Soft Field-Cuttale Diffuer Lens, 49.2' per roll

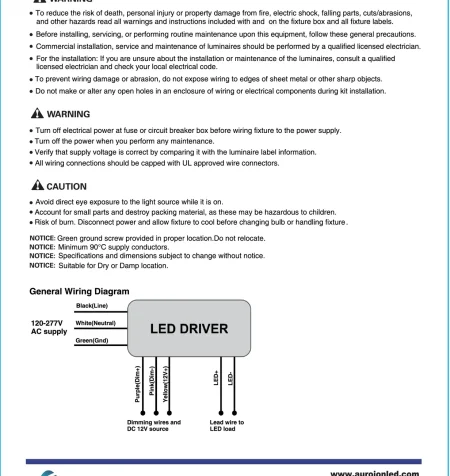

Documents & Download

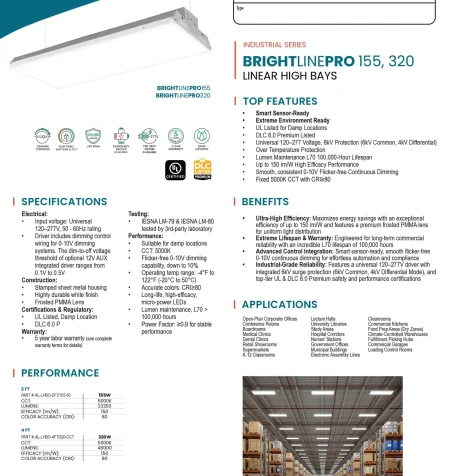

SPECS SHEET
FIELD-ADJUST GUIDE
ies files
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
COMPLIANCE
Logistics
COMPLIANCE
Logistics
Packaging
| PACKAGING CONFIGURATION | AL-LHBO-2FT |
|---|---|
| Units per Master Carton | 1 |
| MASTER CARTON DIMENSIONS | 25.67″ L x 15.35″ W x 2.6″ H |
| MASTER CARTON WEIGHT (lbs) | 7.92 |
| STANDARD PALLET QTY | 162 Cartons (162 Total Fixtures) |
| TOTAL PALLET WEIGHT (lbs) (including skid) Approx. | 1334 |
| PALLET DIMENSIONS & HEIGHT | 48″ x 48″ x 75″ (Non-Stackable) |
| SHIPPING CLASSIFICATION | Freight Class 85 (LTL Highly Recommended) |
| DELIVERY REQUIREMENT | Liftgate required if no loading dock |
| Outer box dimensions(mm) | 652*390*66 |
| 1304 | |
| 1170 | |
| 1902 |

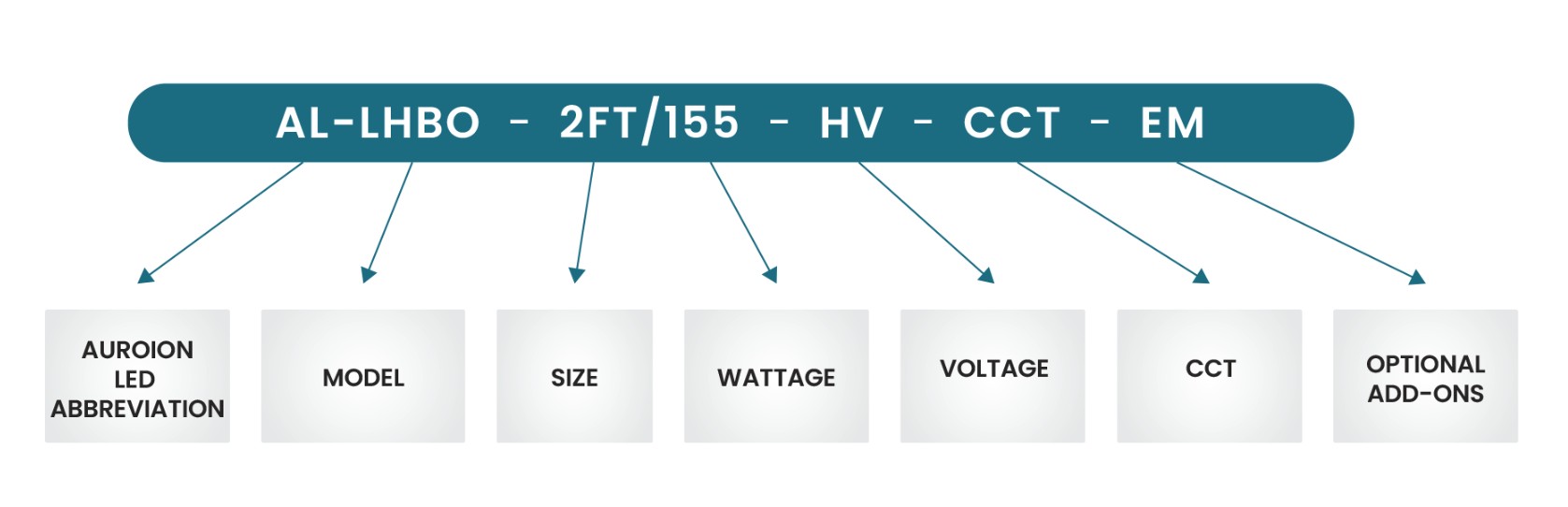

ORDERING MATRIX
ORDERING INFORMATION: AL-AFX-S
| MODEL | SIZE | WATTAGE | VOLTAGE | CCT | OPTIONAL ADD-ONS |
|---|---|---|---|---|---|
| AL-LHBO = LINEAR HIGH BAY, SENSOR-READY | 2FT | 155 = 155W | [BLANK] = 120–277V | 50 = 5000K | EM = BATTERY BACKUP |
| AL-LHBO = LINEAR HIGH BAY, SENSOR-READY | 4FT | 320 = 320W | HV = 277–480V | CCT = 5000K | HMS = IR SENSOR MS = MOTION SENSOR |
ACCESSORIES (SHIPPED SEPARATELY)
| MODEL | PRODUCT # | PRODUCT DESCRIPTION |
|---|---|---|
| AL-LHBO | AL-LHBO-PT-CSMK-10FT | 10FT AIR-CRAFT CABLE SUSPENSION KIT (SET OF 2) |
| AL-LHBO | AL-LHBO-S-PT-CSMK-10FT-WH | 5FT WIRE 10FT CORD FOR NON-EM FIXTURE (WHITE) |
| AL-LHBO | AL-LHBO-PT-PMK | PENDANT MOUNT KIT |
| AL-LHBO | AL-LHBO-SM-SMK | SURFACE MOUNT KIT |

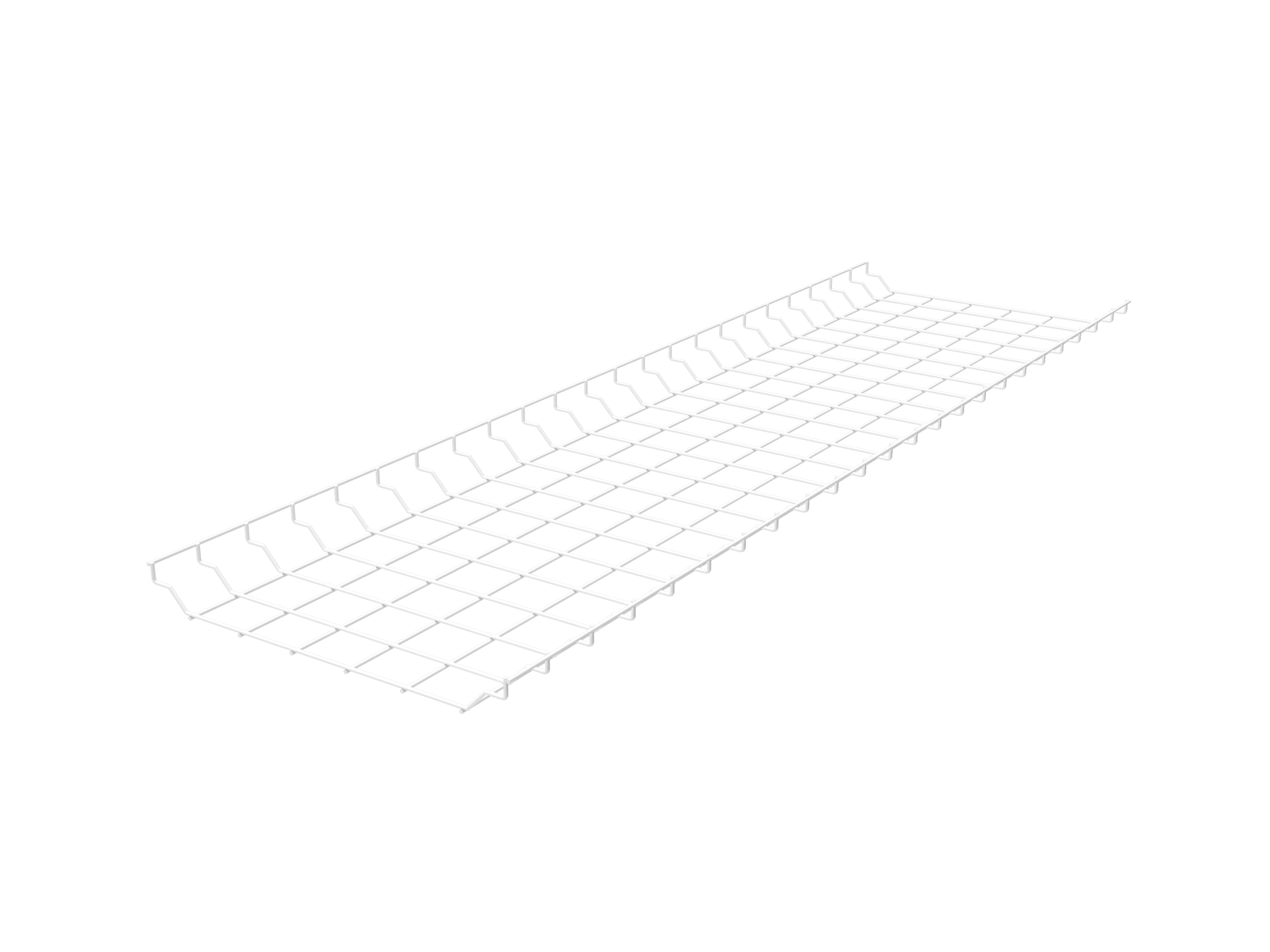

| AL-LHBO | AL-LHBO-PT-WG-4FT | WIREGUARD |
| AL-LHBO | AL-LHBO-PT-EMBB | EM BATTERY BACKUP MOUNTING BRACKET (WHITE) |
| AL-LHBO | AL-LHBO-A-24-LV | 24W EMERGENCY BATTERY BACKUP (UL924) |
