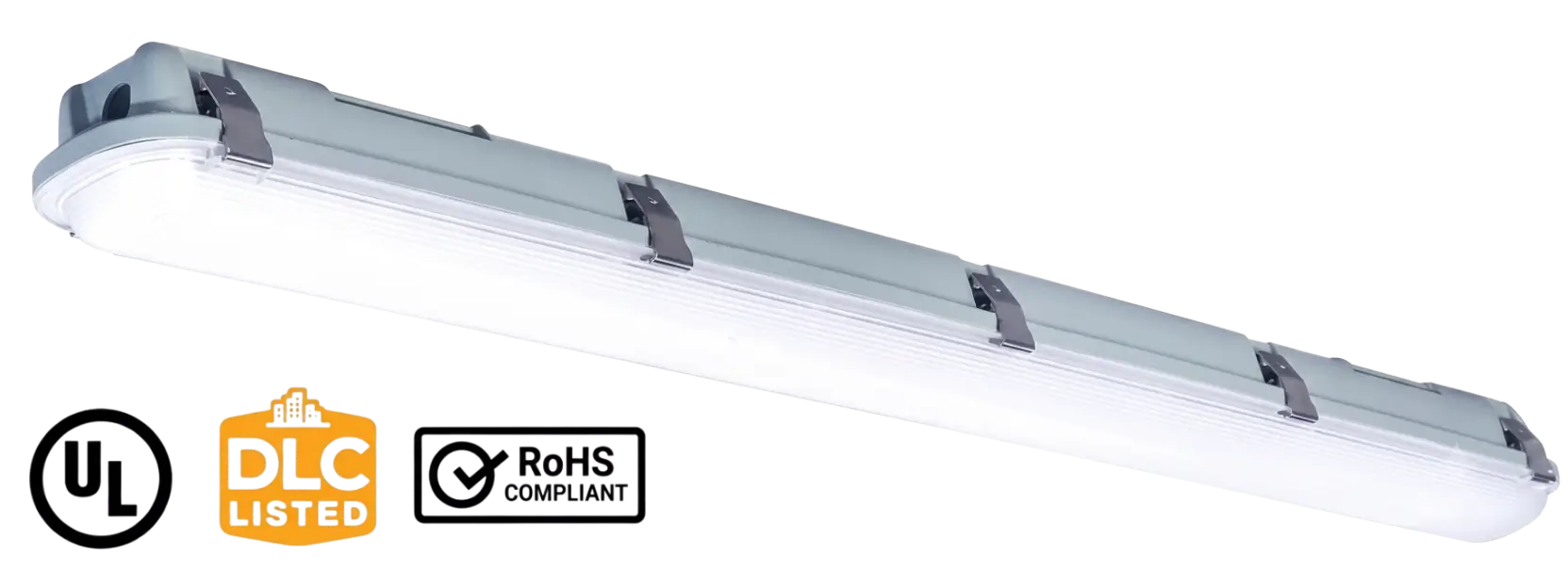

VAPOR
EDGEPRO (AL-LWP)
SKU:
AL-AFX-S-6
QUICK INFO:
Certified:
UL • DLC 6.0P • RoHS • Title 24 JA8
Lengths:
2 FT • 4 FT • 8 FT
CCT:
5 CCT Field Adjustable, 2700–5000K
Wattage:
4-Wattage, selectable 10–80W
Lumens:
3250 lm / 4550 lm / 6500 lm / 13000 lm
Finishes:
White
Black
Bronze
Certified:
UL • DLC 6.0P • RoHS • Title 24 JA8
Lengths:
2 FT • 4 FT • 8 FT
CCT:
5 CCT Field Adjustable, 2700–5000K
Wattage:
4-Wattage, selectable 10–80W
Lumens:
3250 lm / 4550 lm / 6500 lm / 13000 lm
Finishes:
White
Black
Applications:
Commercial • Office Spaces • Retail • Healthcare • Education • Hospitality • Supermarkets • High-Spec Projects • High-End Designs • Libraries • Theaters • Event Venues • Smart Facilities • Corridors • Etc
TECHNICAL SPECS
KEY FEATURES
Electrical
Input Voltage: 120–277V, 50 – 60Hz rating
Power Factor: ≥0.9 for stable performance
Total Harmonic Distortion: <20%
Flicker-free 0-10V dimming capability, down to 10%
Construction
Suitable for damp location applications
Compatible with suspended and surface/wall mounting
Standard frosted polycarbonate lens diffuser
Durable die-formed steel housing
Long-lasting powder coated finish with high durability
Performance
Accurate Colors: CRI 80+ Standard / CRI 90+ Optional
CCT: 2700K / 3000K / 3500K / 4000K / 5000K
High luminous efficacy up to 120 LPW
LED L70 Life Hours @ 25°C: >100,000 hours
-40°F to 122°F (-40°C to 50°C) operating temperature
Certifications & Regulatory
UL listed for damp locations
RoHS-compliant, environmentally safe materials
DLC Premium certified for efficiency and control
Warranty
5 year labor warranty (see complete warranty terms for details)
LINE DRAWING
Mounting
SUSPENDED MOUNT
Ideal for open ceiling applications
RECESSED INSTALL
Clean integration into gypsum & grid ceilings
WALL MOUNTING
Perfect for walls
in corridors & decorative spaces
SUSPENDED MOUNT
Ideal for open ceiling applications
RECESSED INSTALL
Clean integration into gypsum & grid ceilings
WALL MOUNTING
Perfect for walls
in corridors & decorative spaces
performance
| Form Factor | Catalog No. | Nominal Wattage | Color Temperature | Lumen (lm) | Efficacy (lm/W) | Color Accuracy (CRI) |
|---|---|---|---|---|---|---|
| 2 FT | AL-AFX-S-2FT-20/16/12/10W | 10W | 2700K | 1,263 | 126 | 81 |
| 3000K | 1,225 | 123 | 81 | |||
| 3500K | 1,238 | 124 | 81 | |||
| 4000K | 1,250 | 125 | 81 | |||
| 5000K | 1,225 | 123 | 81 | |||
| 12W | 2700K | 1,500 | 125 | 81 | ||
| 3000K | 1,530 | 128 | 81 | |||
| 3500K | 1,500 | 125 | 81 | |||
| 4000K | 1,515 | 126 | 81 | |||
| 5000K | 1,500 | 125 | 81 | |||
| 16W | 2700K | 2,040 | 128 | 81 | ||
| 3000K | 2,000 | 125 | 81 | |||
| 3500K | 2,020 | 126 | 81 | |||
| 4000K | 2,000 | 125 | 81 | |||
| 5000K | 2,040 | 128 | 81 | |||
| 20W | 2700K | 2,500 | 125 | 81 | ||
| 3000K | 2,500 | 125 | 81 | |||
| 3500K | 2,550 | 128 | 81 | |||
| 4000K | 2,550 | 128 | 81 | |||
| 5000K | 2,525 | 126 | 81 | |||
| 4 FT | AL-AFX-S-4FT-40/32/24/20W | 20W | 2700K | 2,525 | 126 | 81 |
| 3000K | 2,450 | 123 | 81 | |||
| 3500K | 2,550 | 128 | 81 | |||
| 4000K | 2,550 | 128 | 81 | |||
| 5000K | 2,475 | 124 | 81 | |||
| 24W | 2700K | 3,000 | 125 | 81 | ||
| 3000K | 3,030 | 126 | 81 | |||
| 3500K | 2,970 | 124 | 81 | |||
| 4000K | 3,030 | 126 | 81 | |||
| 5000K | 3,030 | 126 | 81 | |||
| 32W | 2700K | 4,040 | 126 | 81 | ||
| 3000K | 4,040 | 126 | 81 | |||
| 3500K | 3,960 | 124 | 81 | |||
| 4000K | 3,920 | 123 | 81 | |||
| 5000K | 4,000 | 125 | 81 | |||
| 40W | 2700K | 5,050 | 126 | 81 | ||
| 3000K | 5,100 | 128 | 81 | |||
| 3500K | 5,050 | 126 | 81 | |||
| 4000K | 5,100 | 128 | 81 | |||
| 5000K | 5,000 | 125 | 81 | |||
| 8 FT | AL-AFX-S-8FT-80/64/48/40W | 40W | 2700K | 5,600 | 140 | 81 |
| 3000K | 5,800 | 145 | 81 | |||
| 3500K | 5,800 | 145 | 81 | |||
| 4000K | 5,800 | 145 | 81 | |||
| 5000K | 5,800 | 145 | 81 | |||
| 48W | 2700K | 6,480 | 135 | 81 | ||
| 3000K | 6,720 | 140 | 81 | |||
| 3500K | 6,720 | 140 | 81 | |||
| 4000K | 6,720 | 140 | 81 | |||
| 5000K | 6,720 | 140 | 81 | |||
| 64W | 2700K | 8,320 | 130 | 81 | ||
| 3000K | 8,640 | 135 | 81 | |||
| 3500K | 8,640 | 135 | 81 | |||
| 4000K | 8,640 | 135 | 81 | |||
| 5000K | 8,640 | 135 | 81 | |||
| 80W | 2700K | 10,000 | 125 | 81 | ||
| 3000K | 10,400 | 130 | 81 | |||
| 3500K | 10,400 | 130 | 81 | |||
| 4000K | 10,400 | 130 | 81 | |||
| 5000K | 10,400 | 130 | 81 |
CONTROLS & SENSORS
ACCESSORIES
Power Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Non-Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Surface Mount / Wall Mount Kit
(included with luminaire)
Field Installable Quick-Connect
Low Profile Sensor
5ft SO Cord, 5-Wire; 10′ Power Cord Available
(ordered separately)
5ft SO Cord, 6-Wire for EM; 10′
Power Cord Available (ordered separately)
T-Grid Suspension Kit with 4” & 2”
Canopy Cover (ordered separately)
Non-Feed Suspension Kit with 2
Canopy Cover (inquire for availability)
Non-Feed Suspension Kit with Anchor Bracket
(inquire for availability)
Recessed Flanged Mount Kit, 8ft
(ordered separately)
Recessed Flanged Mount Kit, 4ft
(ordered separately)
Recessed Flanged Mount Kit, 2ft
(ordered separzately)
Soft Field-Cuttale Diffuer Lens, 49.2′ per roll
(inquire for availability)
Power Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Non-Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Surface Mount / Wall Mount Kit
(included with luminaire)
Field Installable Quick-Connect
Low Profile Sensor
5ft SO Cord, 5-Wire; 10' Power Cord Available
(ordered separately)
5ft SO Cord, 6-Wire for EM; 10'
Power Cord Available (ordered separately)
T-Grid Suspension Kit with 4” & 2”
Canopy Cover (ordered separately)
Non-Feed Suspension Kit with 2
Canopy Cover (inquire for availability)
Non-Feed Suspension Kit with Anchor Bracket
(inquire for availability)
Recessed Flanged Mount Kit, 8ft
(ordered separately)
Recessed Flanged Mount Kit, 4ft
(ordered separately)
Recessed Flanged Mount Kit, 2ft
(ordered separzately)
Soft Field-Cuttale Diffuer Lens, 49.2' per roll
(inquire for availability)
Documents & Download
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
COMPLIANCE
Logistics
PACKAGING CONFIGURATION:
4 Units per Master Carton
MASTER CARTON DIMENSIONS:
49.2″ L x 10.5″ W x 8.2″ H
MASTER CARTON WEIGHT:
38.5 lbs
STANDARD PALLET QTY:
24 Cartons (96 Total Fixtures)
TOTAL PALLET WEIGHT:
Approx. 975 lbs (including skid)
PALLET DIMENSIONS & HEIGHT:
48″ x 40″ x 56″ (Non-Stackable)
SHIPPING CLASSIFICATION:
Freight Class 85 (LTL Highly Recommended for 10+ Cartons)
DELIVERY REQUIREMENT:
Liftgate required if no loading dock or forklift is present on site
ORDERING MATRIX
ORDERING INFORMATION: AL-AFX-S
| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | EM = EMERGENCY BACKUP | WH = WHITE |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 4FT | 40/32/24/20W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | PIR = BI-LEVEL MOTION SENSOR | BL = BLACK |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 8FT | 80/64/48/40W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | – | CC = CUSTOM COLOR |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | LC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | – | – |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | TC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | – | – |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | XC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | – | – |
ACCESSORIES (SHIPPED SEPARATELY)
| PRODUCT # | PRODUCT DESCRIPTION |
|---|---|
| AL-AFX-S-PT-5WCORD-10FT-WH | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-5WCORD-10FT-BK | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-6WCORD-10FT-WH | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-6WCORD-10FT-BK | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-TGT | GRID SUSPENSION KIT |
| AL-AFX-S-PT-RMK-2FT | 2FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-4FT | 4FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-8FT | 8FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-DSB-WH | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (WHITE) |
| AL-AFX-S-PT-DSB-BK | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (BLACK) |
Ordering Matrix
ORDERING INFORMATION: AL-AFX-S
| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | EM = EMERGENCY BACKUP | WH = WHITE |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 4FT | 40/32/24/20W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | PIR = BI-LEVEL MOTION SENSOR | BL = BLACK |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 8FT | 80/64/48/40W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | CC = CUSTOM COLOR |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | LC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | TC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | XC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
ACCESSORIES (SHIPPED SEPARATELY)
| PRODUCT # | PRODUCT DESCRIPTION |
|---|---|
| AL-AFX-S-PT-5WCORD-10FT-WH | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-5WCORD-10FT-BK | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-6WCORD-10FT-WH | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-6WCORD-10FT-BK | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-TGT | GRID SUSPENSION KIT |
| AL-AFX-S-PT-RMK-2FT | 2FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-4FT | 4FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-8FT | 8FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-DSB-WH | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (WHITE) |
| AL-AFX-S-PT-DSB-BK | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (BLACK) |
