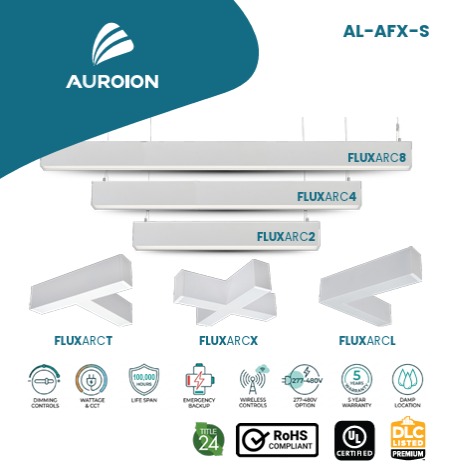

FLUXARC
DIRECT / INDIRECT LINEAR LED LUMINAIRE
DIRECT / INDIRECT LINEAR LED LUMINAIRE
SKU:
AL-AFX-S
QUICK INFO:
Certified:
UL • DLC 6.0P • RoHS • Title 24 JA8
Lengths:
2 FT • 4 FT • 8 FT
CCT:
5 CCT Field Adjustable, 2700–5000K
Wattage:
4-Wattage, selectable 10–80W
Lumens:
3250 lm / 4550 lm / 6500 lm / 13000 lm
Finishes:
White
Black
3-5 Day Quick Ship

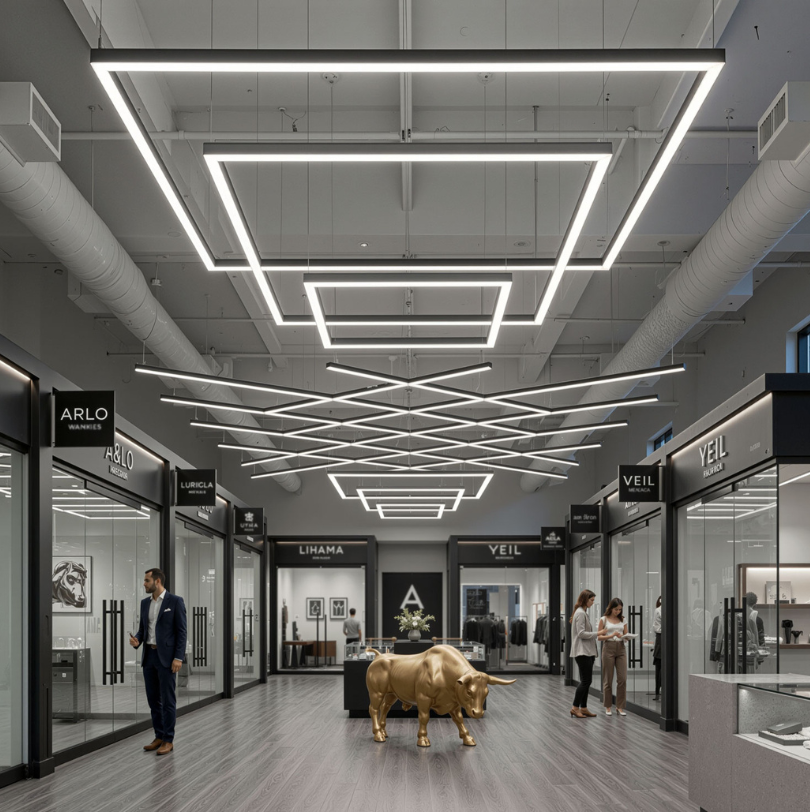

Applications:
Commercial • Office Spaces • Retail • Healthcare • Education • Hospitality • Supermarkets • High-Spec Projects • High-End Designs • Libraries • Theaters • Event Venues • Smart Facilities • Corridors • Etc
TECHNICAL SPECS
Electrical
Input Voltage: 120–277V, 50 – 60Hz rating Power Factor: ≥0.9 for stable performance Total Harmonic Distortion: <20% Flicker-free 0-10V dimming capability, down to 10%
ConstructionSuitable for damp location applications Compatible with suspended and surface/wall mounting Standard frosted polycarbonate lens diffuser Durable die-formed steel housing Long-lasting powder coated finish with high durability
PerformanceAccurate Colors: CRI 80+ Standard / CRI 90+ Optional CCT: 2700K / 3000K / 3500K / 4000K / 5000K High luminous efficacy up to 120 LPW LED L70 Life Hours @ 25°C: >100,000 hours -40°F to 122°F (-40°C to 50°C) operating temperature
Certifications & RegulatoryUL listed for damp locations RoHS-compliant, environmentally safe materials DLC Premium certified for efficiency and control
Warranty5 year labor warranty (see complete warranty terms for details)
Mounting
SUSPENDED MOUNT
Ideal for open ceiling applications
RECESSED INSTALL
Clean integration into gypsum & grid ceilings

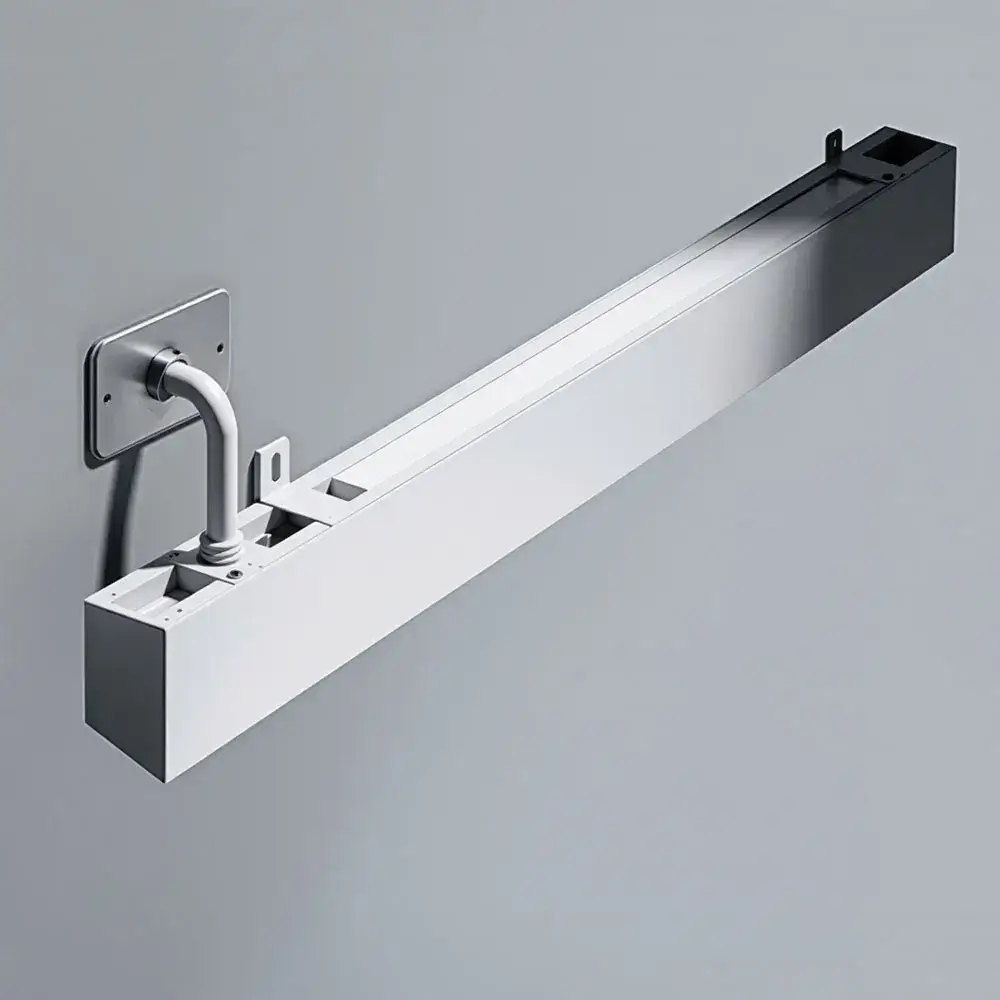

WALL MOUNTING
Perfect for walls
in corridors & decorative spaces
| Form Factor | Catalog No. | Nominal Wattage | Color Temperature | Lumen (lm) | Efficacy (lm/W) | Color Accuracy (CRI) |
|---|---|---|---|---|---|---|
| 2 FT | AL-AFX-S-2FT-20/16/12/10W | 10W | 2700K | 1,263 | 126 | 81 |
| 3000K | 1,225 | 123 | 81 | |||
| 3500K | 1,238 | 124 | 81 | |||
| 4000K | 1,250 | 125 | 81 | |||
| 5000K | 1,225 | 123 | 81 | |||
| 12W | 2700K | 1,500 | 125 | 81 | ||
| 3000K | 1,530 | 128 | 81 | |||
| 3500K | 1,500 | 125 | 81 | |||
| 4000K | 1,515 | 126 | 81 | |||
| 5000K | 1,500 | 125 | 81 | |||
| 16W | 2700K | 2,040 | 128 | 81 | ||
| 3000K | 2,000 | 125 | 81 | |||
| 3500K | 2,020 | 126 | 81 | |||
| 4000K | 2,000 | 125 | 81 | |||
| 5000K | 2,040 | 128 | 81 | |||
| 20W | 2700K | 2,500 | 125 | 81 | ||
| 3000K | 2,500 | 125 | 81 | |||
| 3500K | 2,550 | 128 | 81 | |||
| 4000K | 2,550 | 128 | 81 | |||
| 5000K | 2,525 | 126 | 81 | |||
| 4 FT | AL-AFX-S-4FT-40/32/24/20W | 20W | 2700K | 2,525 | 126 | 81 |
| 3000K | 2,450 | 123 | 81 | |||
| 3500K | 2,550 | 128 | 81 | |||
| 4000K | 2,550 | 128 | 81 | |||
| 5000K | 2,475 | 124 | 81 | |||
| 24W | 2700K | 3,000 | 125 | 81 | ||
| 3000K | 3,030 | 126 | 81 | |||
| 3500K | 2,970 | 124 | 81 | |||
| 4000K | 3,030 | 126 | 81 | |||
| 5000K | 3,030 | 126 | 81 | |||
| 32W | 2700K | 4,040 | 126 | 81 | ||
| 3000K | 4,040 | 126 | 81 | |||
| 3500K | 3,960 | 124 | 81 | |||
| 4000K | 3,920 | 123 | 81 | |||
| 5000K | 4,000 | 125 | 81 | |||
| 40W | 2700K | 5,050 | 126 | 81 | ||
| 3000K | 5,100 | 128 | 81 | |||
| 3500K | 5,050 | 126 | 81 | |||
| 4000K | 5,100 | 128 | 81 | |||
| 5000K | 5,000 | 125 | 81 | |||
| 8 FT | AL-AFX-S-8FT-80/64/48/40W | 40W | 2700K | 5,600 | 140 | 81 |
| 3000K | 5,800 | 145 | 81 | |||
| 3500K | 5,800 | 145 | 81 | |||
| 4000K | 5,800 | 145 | 81 | |||
| 5000K | 5,800 | 145 | 81 | |||
| 48W | 2700K | 6,480 | 135 | 81 | ||
| 3000K | 6,720 | 140 | 81 | |||
| 3500K | 6,720 | 140 | 81 | |||
| 4000K | 6,720 | 140 | 81 | |||
| 5000K | 6,720 | 140 | 81 | |||
| 64W | 2700K | 8,320 | 130 | 81 | ||
| 3000K | 8,640 | 135 | 81 | |||
| 3500K | 8,640 | 135 | 81 | |||
| 4000K | 8,640 | 135 | 81 | |||
| 5000K | 8,640 | 135 | 81 | |||
| 80W | 2700K | 10,000 | 125 | 81 | ||
| 3000K | 10,400 | 130 | 81 | |||
| 3500K | 10,400 | 130 | 81 | |||
| 4000K | 10,400 | 130 | 81 | |||
| 5000K | 10,400 | 130 | 81 |
CONTROLS & SENSORS

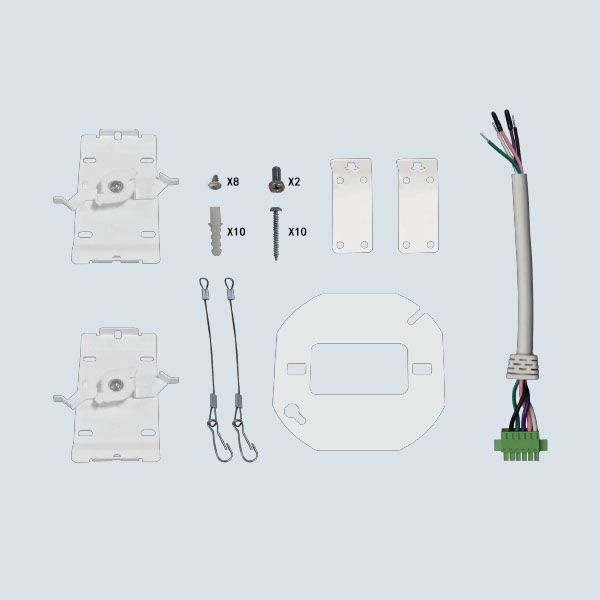

ACCESSORIES

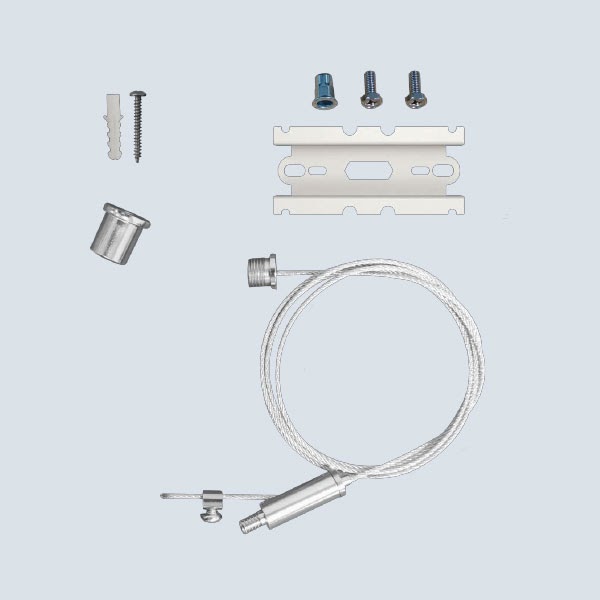

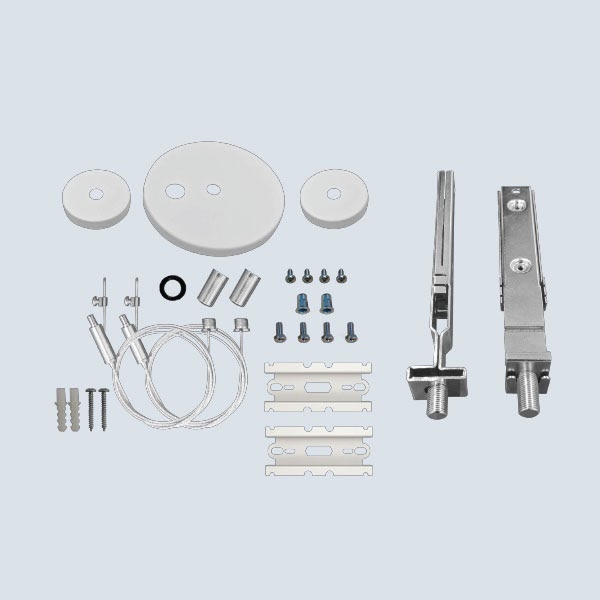

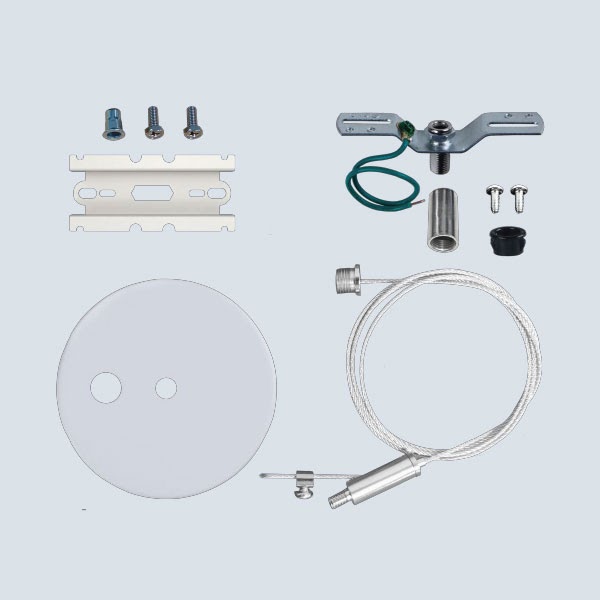

Power Feed Suspension Kit with 4
Canopy Cover (included with luminaire)

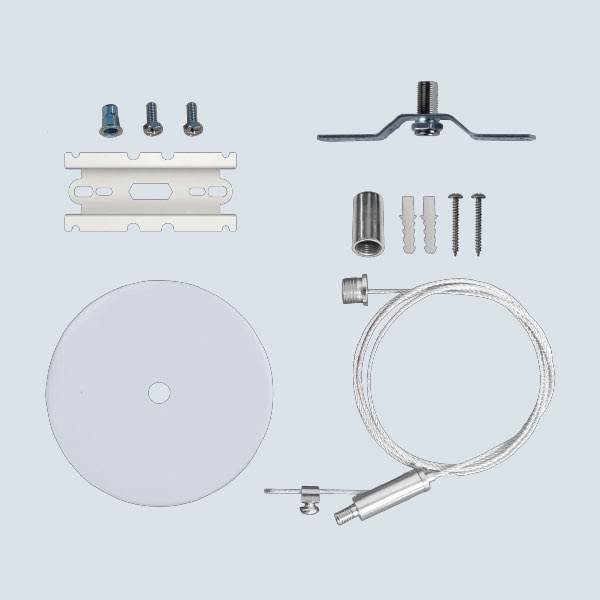

Non-Feed Suspension Kit with 4
Canopy Cover (included with luminaire)
Surface Mount / Wall Mount Kit
(included with luminaire)

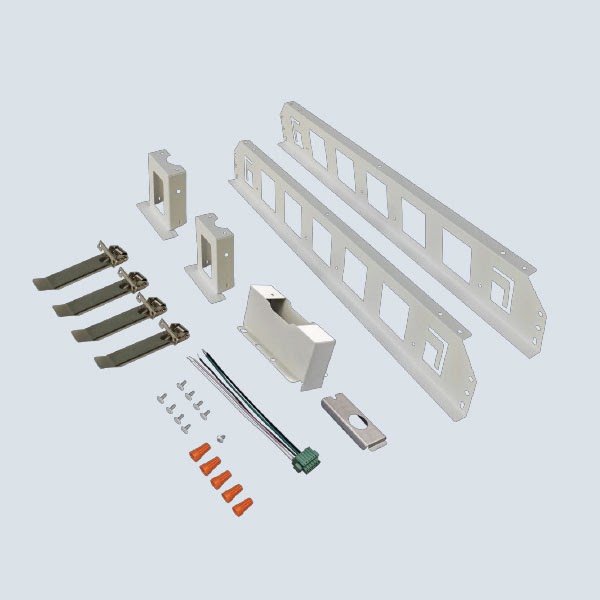

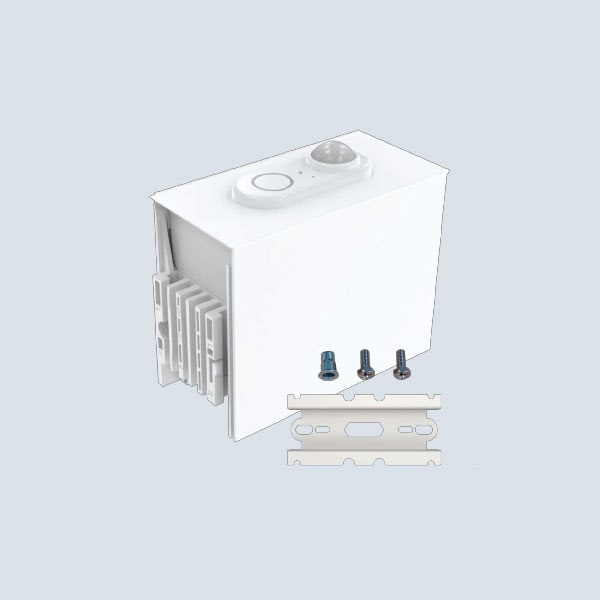

Field Installable Quick-Connect
Low Profile Sensor

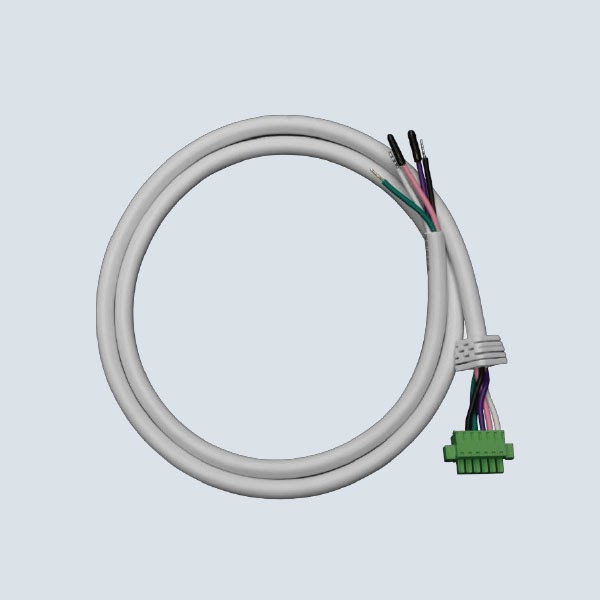

5ft SO Cord, 5-Wire; 10' Power Cord Available
(ordered separately)
5ft SO Cord, 6-Wire for EM; 10'
Power Cord Available (ordered separately)
T-Grid Suspension Kit with 4” & 2”
Canopy Cover (ordered separately)

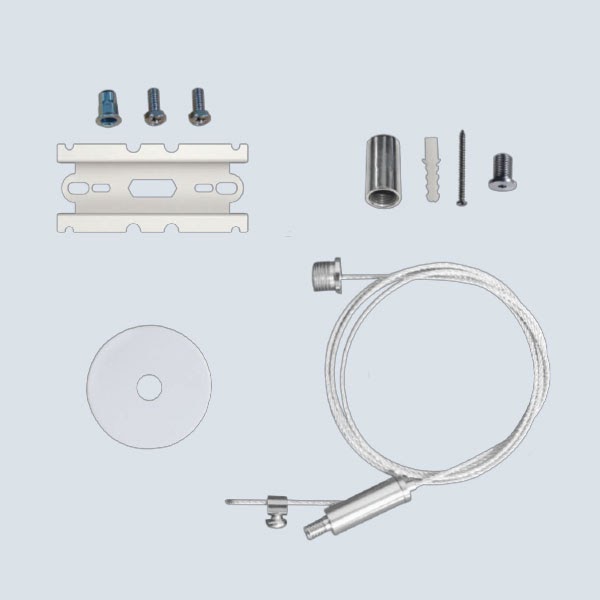

Non-Feed Suspension Kit with 2
Canopy Cover (inquire for availability)
Non-Feed Suspension Kit with Anchor Bracket
(inquire for availability)

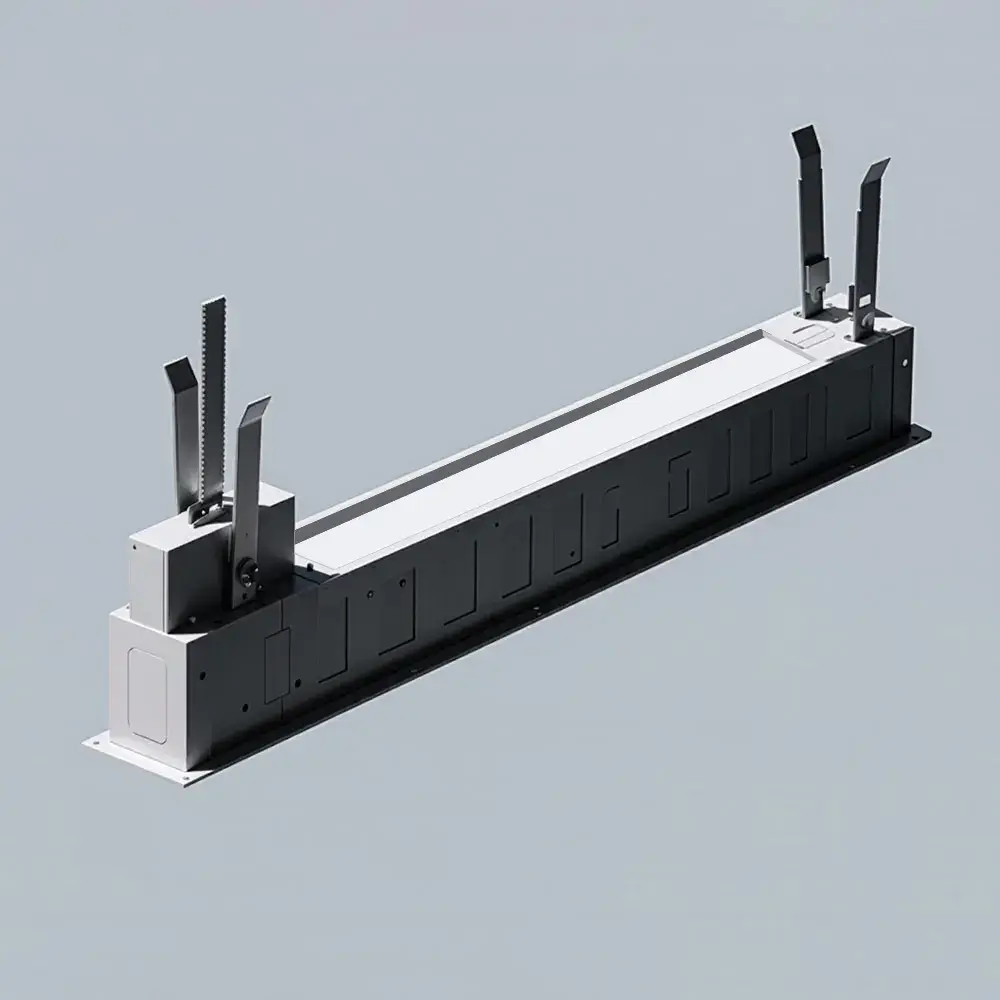

Recessed Flanged Mount Kit, 8ft
(ordered separately)
Recessed Flanged Mount Kit, 4ft
(ordered separately)
Recessed Flanged Mount Kit, 2ft
(ordered separzately)

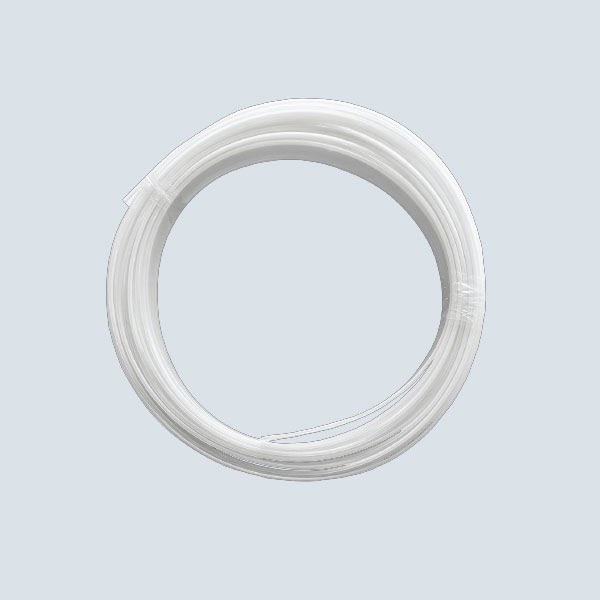

Soft Field-Cuttale Diffuer Lens, 49.2' per roll
(inquire for availability)
Documents & Download
COMPLIANCE
Logistics
PACKAGING CONFIGURATION:
4 Units per Master Carton
MASTER CARTON DIMENSIONS:
49.2″ L x 10.5″ W x 8.2″ H
MASTER CARTON WEIGHT:
38.5 lbs
STANDARD PALLET QTY:
24 Cartons (96 Total Fixtures)
TOTAL PALLET WEIGHT:
Approx. 975 lbs (including skid)
PALLET DIMENSIONS & HEIGHT:
48″ x 40″ x 56″ (Non-Stackable)
SHIPPING CLASSIFICATION:
Freight Class 85 (LTL Highly Recommended for 10+ Cartons)
DELIVERY REQUIREMENT:
Liftgate required if no loading dock or forklift is present on site

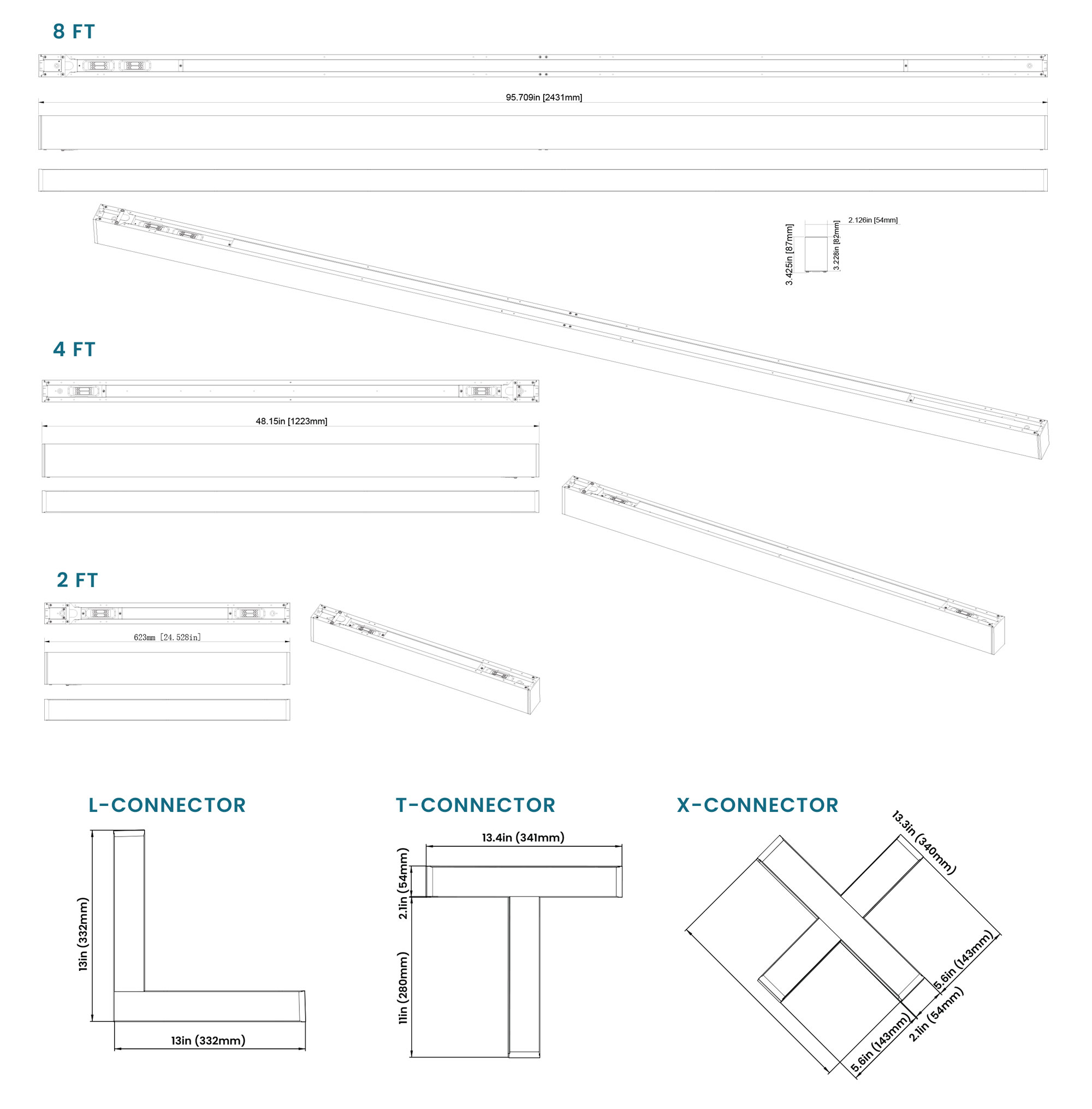

Ordering Matrix

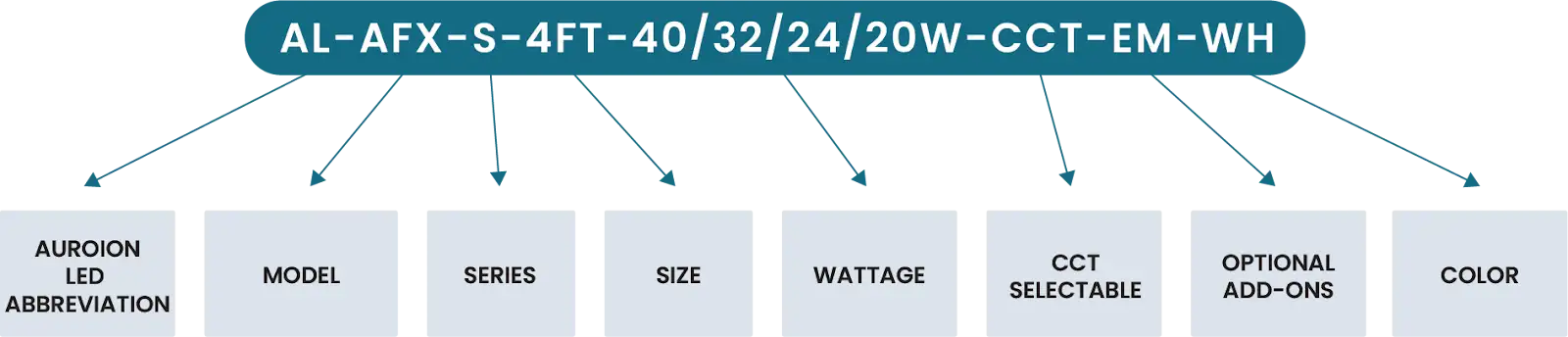

ORDERING INFORMATION: AL-AFX-S

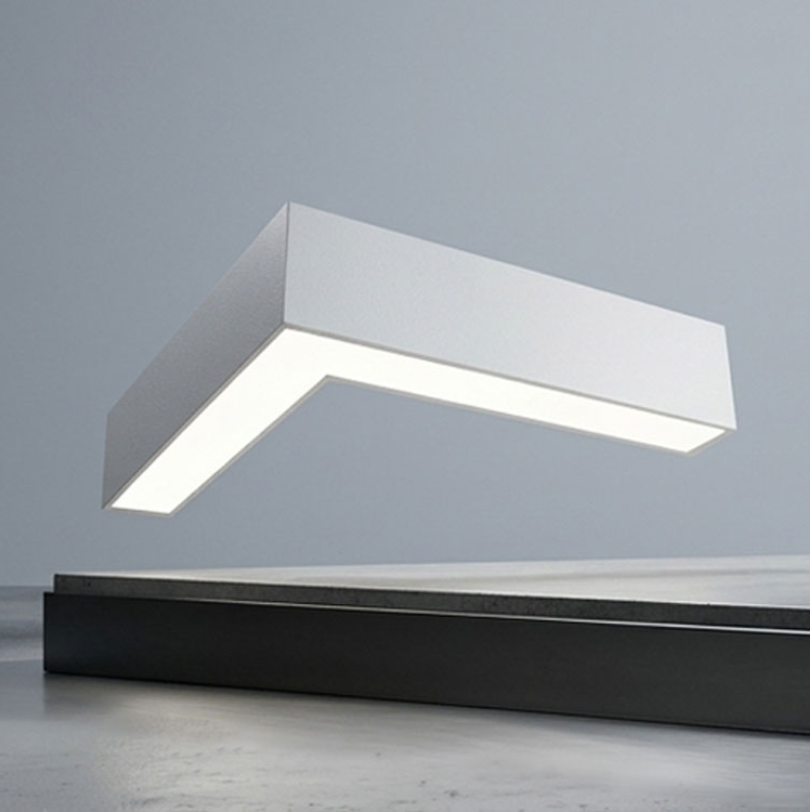

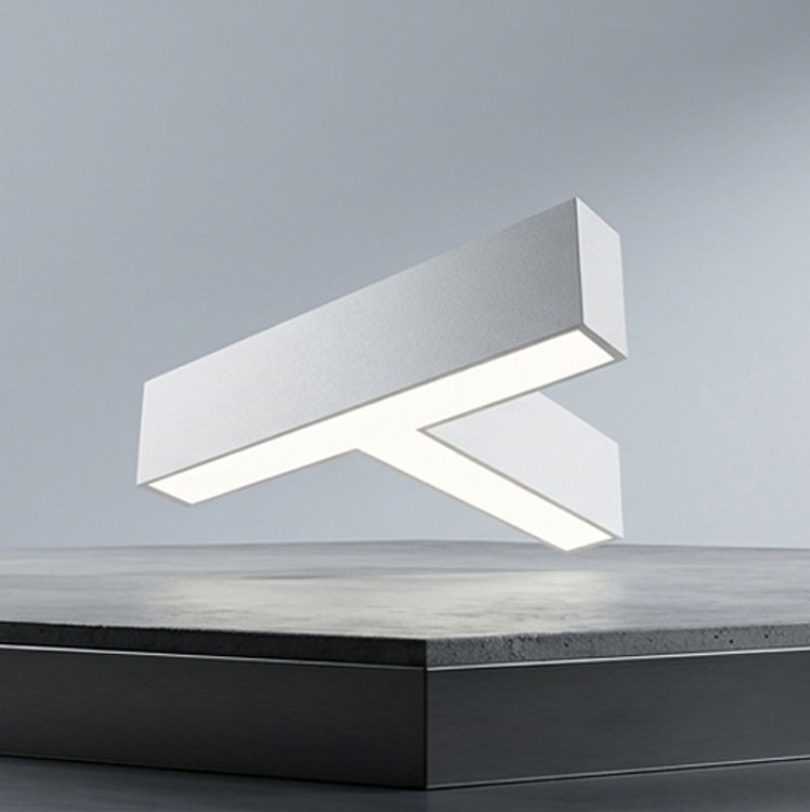

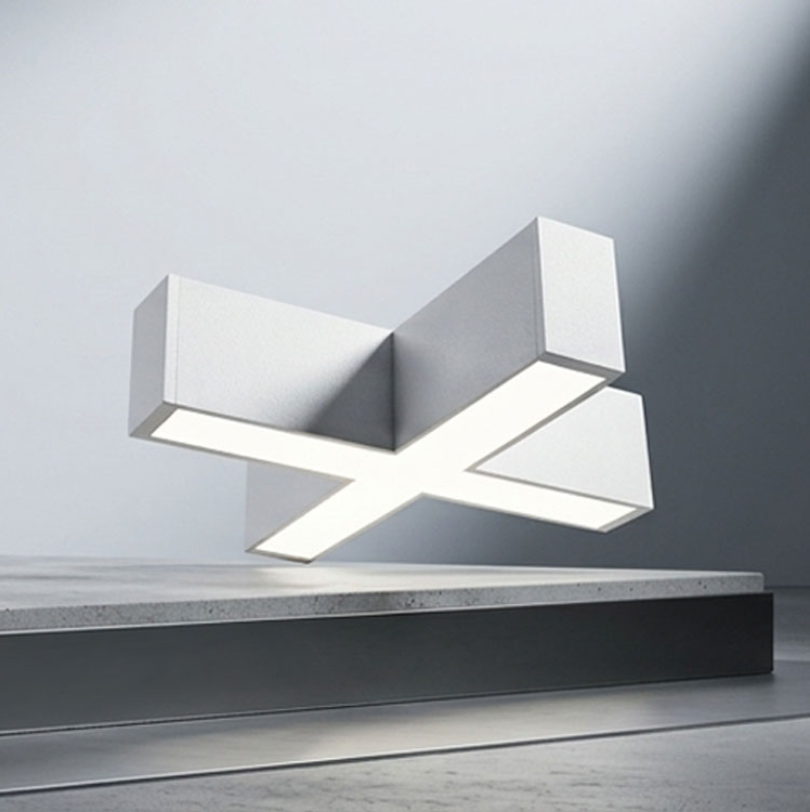

| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | EM = EMERGENCY BACKUP | WH = WHITE |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 4FT | 40/32/24/20W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | PIR = BI-LEVEL MOTION SENSOR | BL = BLACK |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 8FT | 80/64/48/40W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | CC = CUSTOM COLOR |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | LC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | TC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | XC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
ACCESSORIES (SHIPPED SEPARATELY)
| PRODUCT # | PRODUCT DESCRIPTION |
|---|---|
| AL-AFX-S-PT-5WCORD-10FT-WH | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-5WCORD-10FT-BK | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-6WCORD-10FT-WH | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-6WCORD-10FT-BK | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-TGT | GRID SUSPENSION KIT |
| AL-AFX-S-PT-RMK-2FT | 2FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-4FT | 4FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-8FT | 8FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-DSB-WH | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (WHITE) |
| AL-AFX-S-PT-DSB-BK | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (BLACK) |
