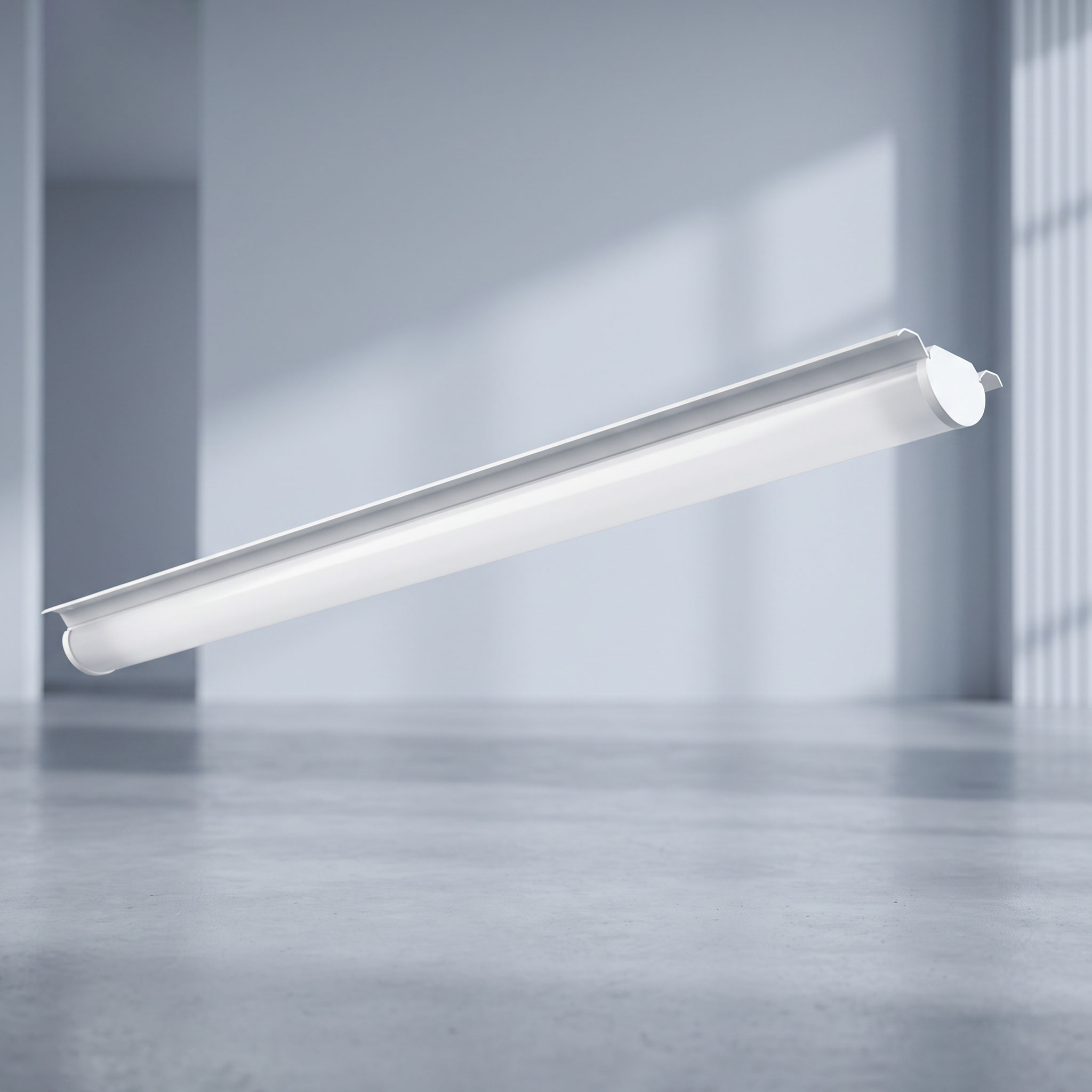

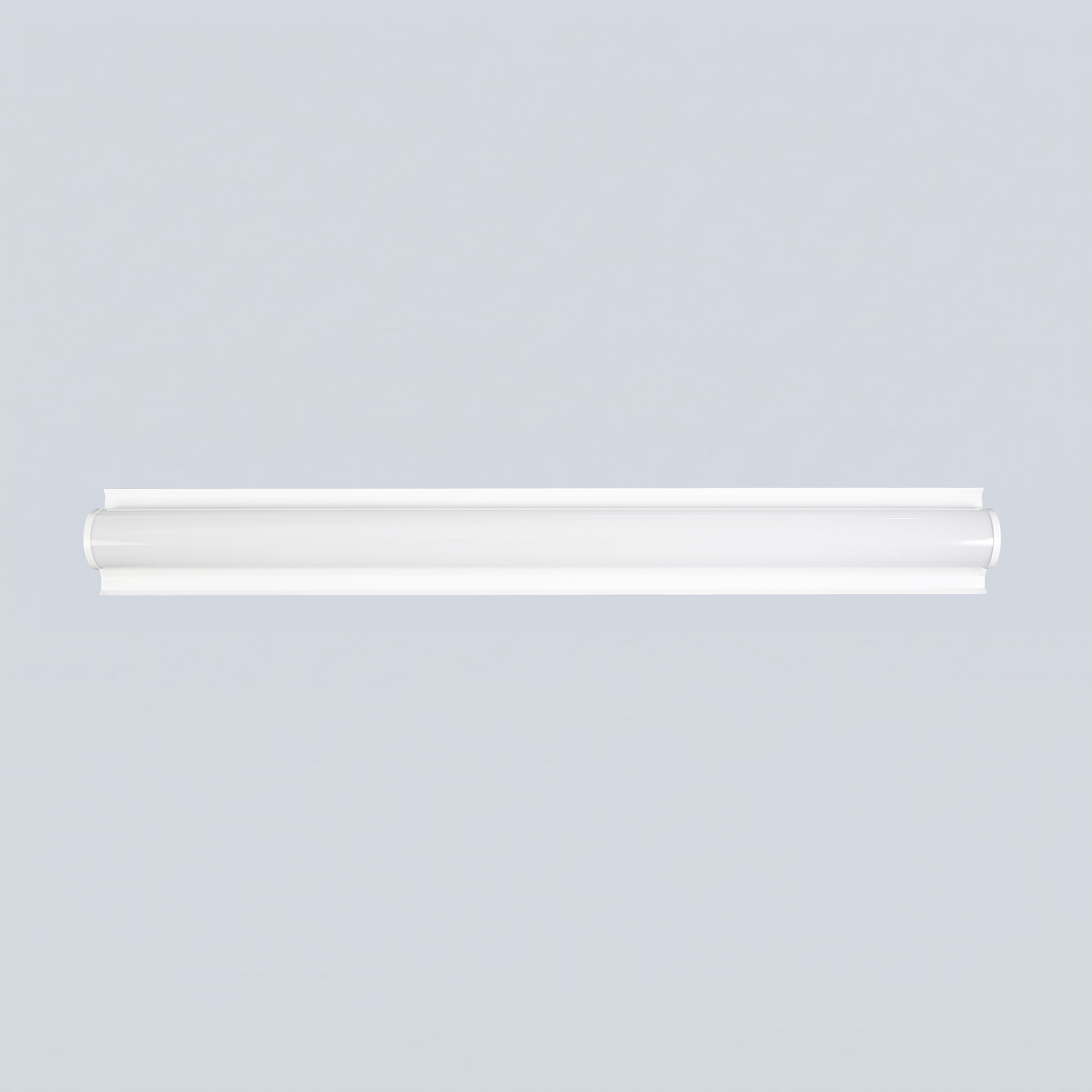

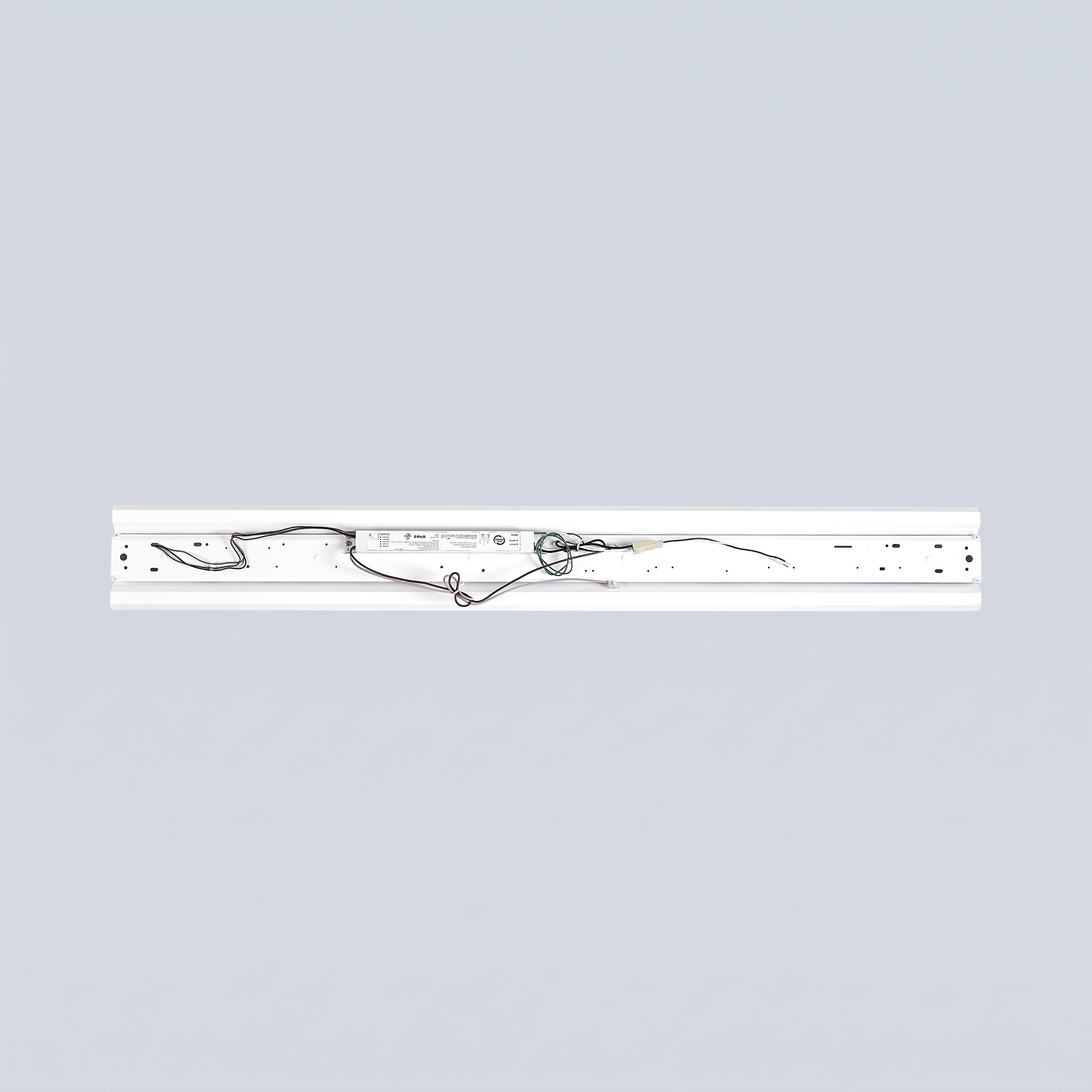

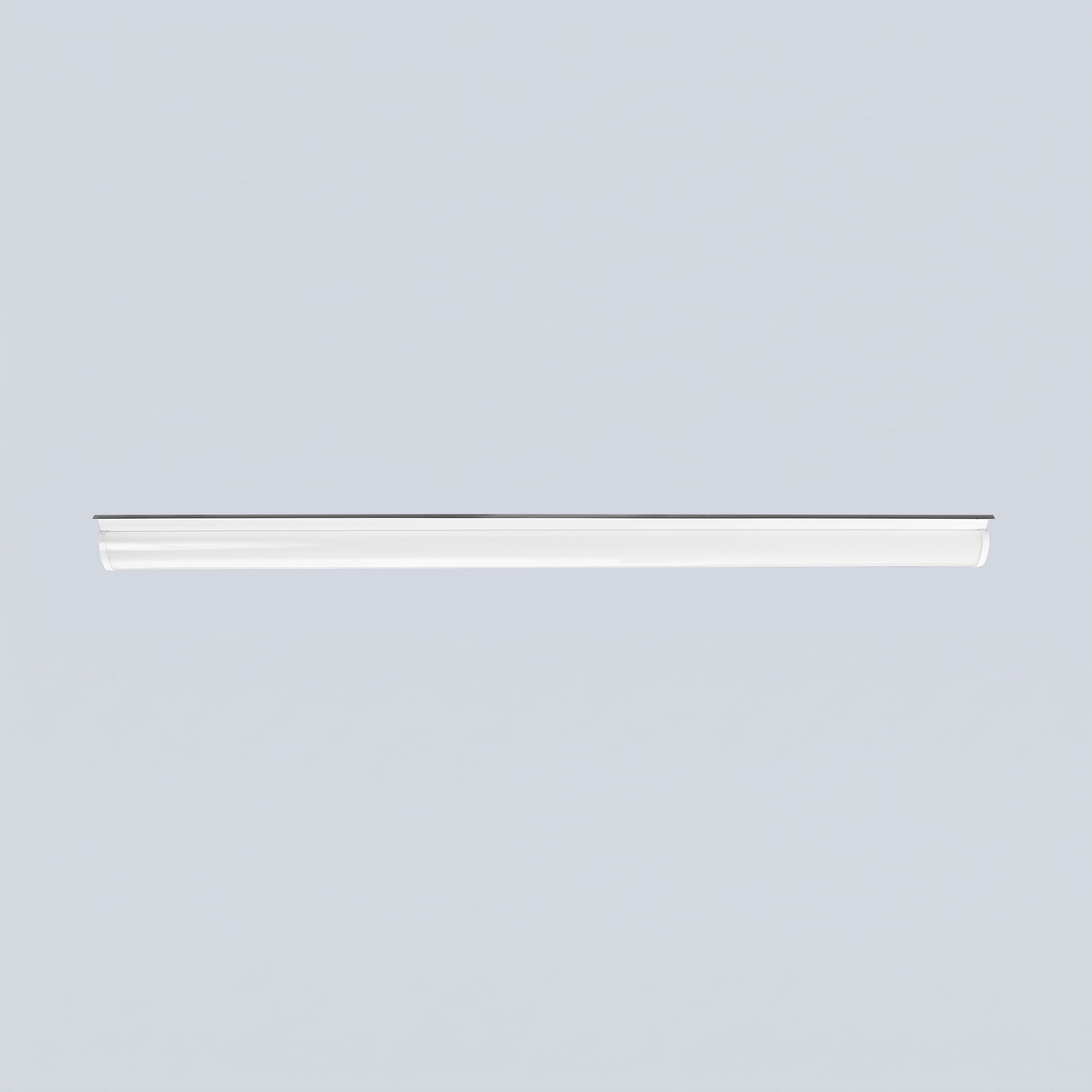

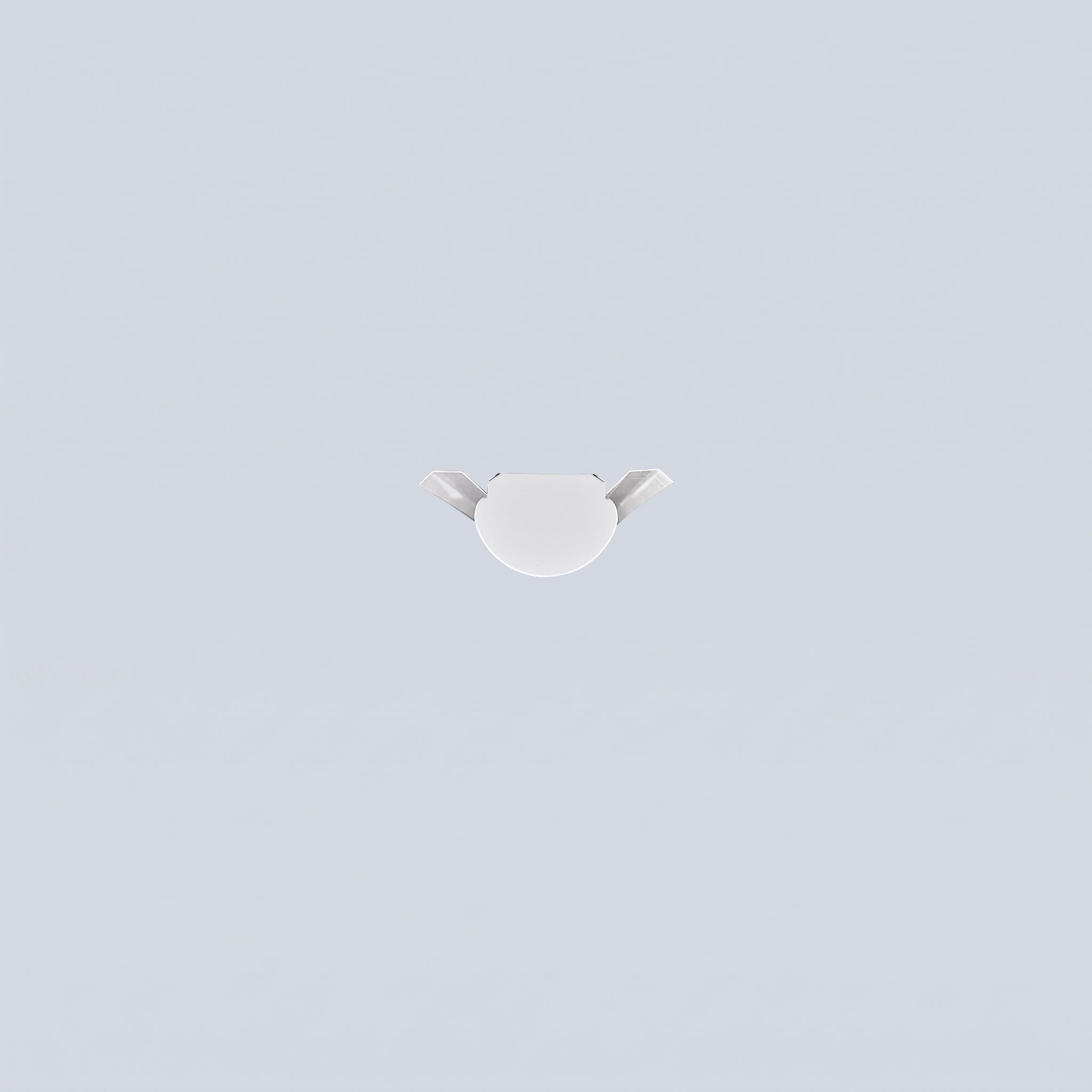

AL-LNS-A-9
QUICK INFO:
SKU: AL-LNSRK
Quick info:
Applications:
Supermarkets / Grocery Store Aisles / Covered Parking Garages / Under-Canopy Areas / Back-of-House (BOH) Retail / Storage Rooms / Stairwells / Utility Corridors / Manufacturing Assembly Lines / Workbenches / Distribution Center Warehouses / Low-Bay Picking Aisles / Auto Body Shop Prep Bays / Mechanic Garages / Textile, Paper, & Printing Facilities / Cove Lighting / Perimeters in Corporate Lobbies / School Corridors / University Corridors / Airport Transit Hubs / Train Stations / Library Stacks / Open Study / Common Areas
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 – 60Hz rating
Power Factor: 0.9, 6kV surge protection
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V AUX integrated
driver ranges from 0.1V to 0.5V
Construction
Stamped sheet-metal housing, Polycarbonate frosted lens High durability white powder coated
Performance
Suitable for wet locations
Accurate Color CRI≥80
3CCT Field Adjustable: 3500K / 4000K / 5000K
Flicker-free 0-10V dimming capability, down to 10%
Suspension Mount Operating Temp Range @
Max Power: 75W = -40°F (-40°C) to 113°F (45°C) /
Surface Mount Operating Temp Range @
Max Power: 75W = -40°F (-40°C) to 104°F (40°C) /
Lumen maintenance, L70 > 100,000 hours
Certifications & Regulatory
UL Listed for Damp Location
DLC 6.0S Listed
Warranty
5 Year Labor Warranty (see complete warranty terms for details)
KEY FEATURES

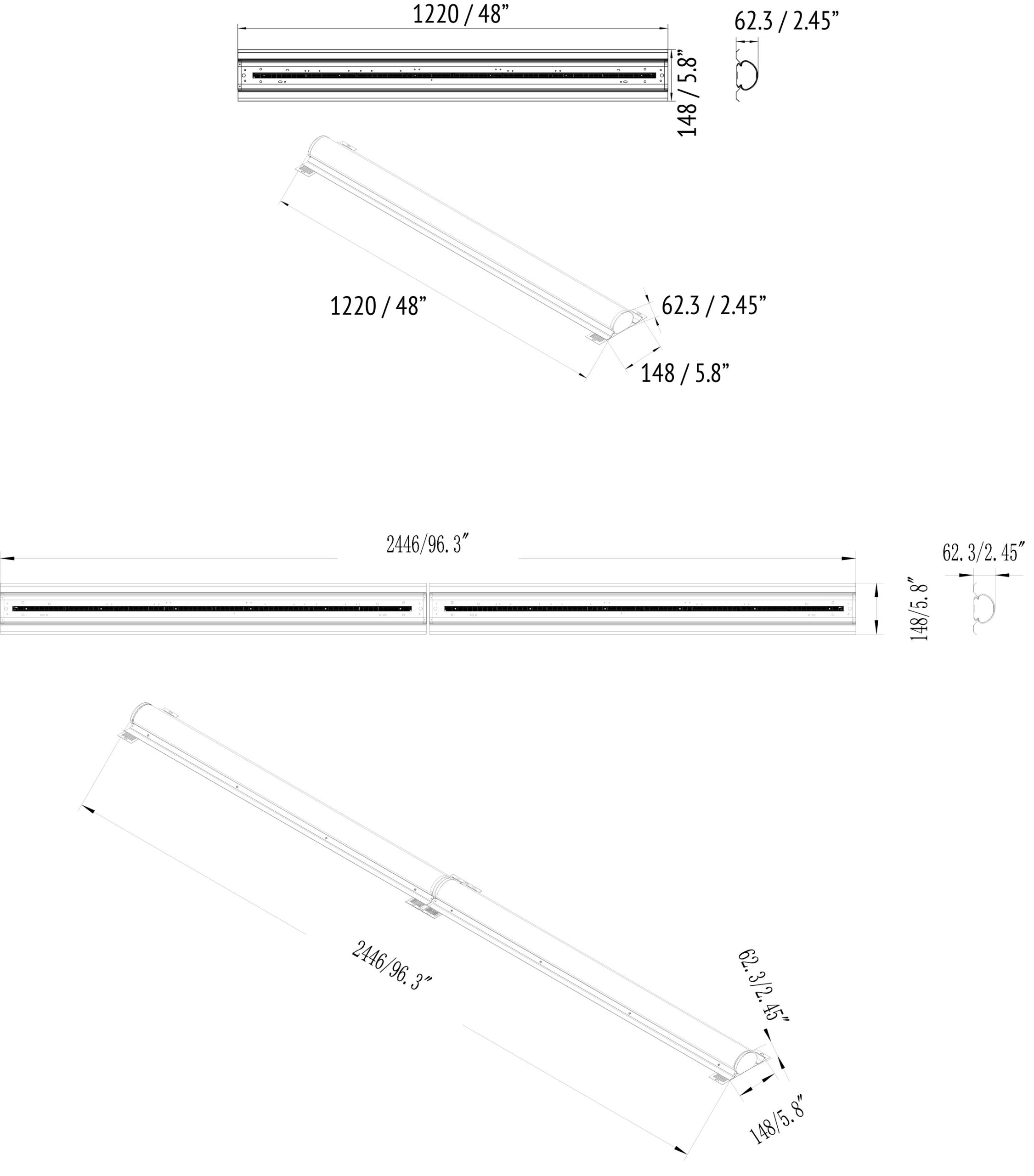

LINE DRAWING
Mounting
SUSPENDED MOUNT
Ideal for open ceiling applications
RECESSED INSTALL
Clean integration into gypsum & grid ceilings
WALL MOUNTING
Perfect for walls
in corridors & decorative spaces
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|
CONTROLS & SENSORS
ACCESSORIES
Power Feed Suspension Kit with 4
Non-Feed Suspension Kit with 4
Surface Mount / Wall Mount Kit
Field Installable Quick-Connect
5ft SO Cord, 5-Wire; 10' Power Cord Available
(ordered separately)
5ft SO Cord, 6-Wire for EM; 10'
Power Cord Available (ordered separately)
T-Grid Suspension Kit with 4” & 2”
Non-Feed Suspension Kit with 2
Non-Feed Suspension Kit with Anchor Bracket
Recessed Flanged Mount Kit, 8ft
Recessed Flanged Mount Kit, 4ft
Recessed Flanged Mount Kit, 2ft
Soft Field-Cuttale Diffuer Lens, 49.2' per roll
Documents & Download
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
COMPLIANCE
Logistics
COMPLIANCE
Logistics
Packaging
Ordering Matrix
ORDERING INFORMATION: AL-AFX-S
| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | EM = EMERGENCY BACKUP | WH = WHITE |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 4FT | 40/32/24/20W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | PIR = BI-LEVEL MOTION SENSOR | BL = BLACK |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 8FT | 80/64/48/40W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | CC = CUSTOM COLOR |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | LC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | TC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | XC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
ACCESSORIES (SHIPPED SEPARATELY)
| PRODUCT # | PRODUCT DESCRIPTION |
|---|---|
| AL-AFX-S-PT-5WCORD-10FT-WH | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-5WCORD-10FT-BK | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-6WCORD-10FT-WH | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-6WCORD-10FT-BK | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-TGT | GRID SUSPENSION KIT |
| AL-AFX-S-PT-RMK-2FT | 2FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-4FT | 4FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-8FT | 8FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-DSB-WH | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (WHITE) |
| AL-AFX-S-PT-DSB-BK | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (BLACK) |
