SKU:
AL-LNS-A-5
QUICK INFO:
SKU: AL-LNS-B
Quick info:
Applications:
Parking Garages / Stairwells / Hallways / Corridors / Supermarkets / Equipment Rooms / Factories / Hospitality / Education / Open-ceiling spaces / Lobbys / Showrooms / Warehouses
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 – 60Hz rating
Power Factor: 277-480V option available 6kV surge protection
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V AUX integrated
driver ranges from 0.1V to 0.5V
Construction
Stamped sheet-metal housing, Polycarbonate frosted lens High durability white powder coated
Performance
Suitable for wet locations
Accurate Color CRI≥80
4CCT Field Adjustable: 3000K / 3500K / 4000K / 5000K
Flicker-free 0-10V dimming capability, down to 10%
Suspension Mount Operating Temp Range @
Max Power: 80W = -40°F (-40°C) to 113°F (45°C) /
Surface Mount Operating Temp Range @
Max Power: 80W = -40°F (-40°C) to 104°F (40°C) /
Lumen maintenance, L70 > 100,000 hours
Certifications & Regulatory
UL Listed for Damp Location
DLC 6.0P Listed
Warranty
5 Year Labor Warranty (see complete warranty terms for details)

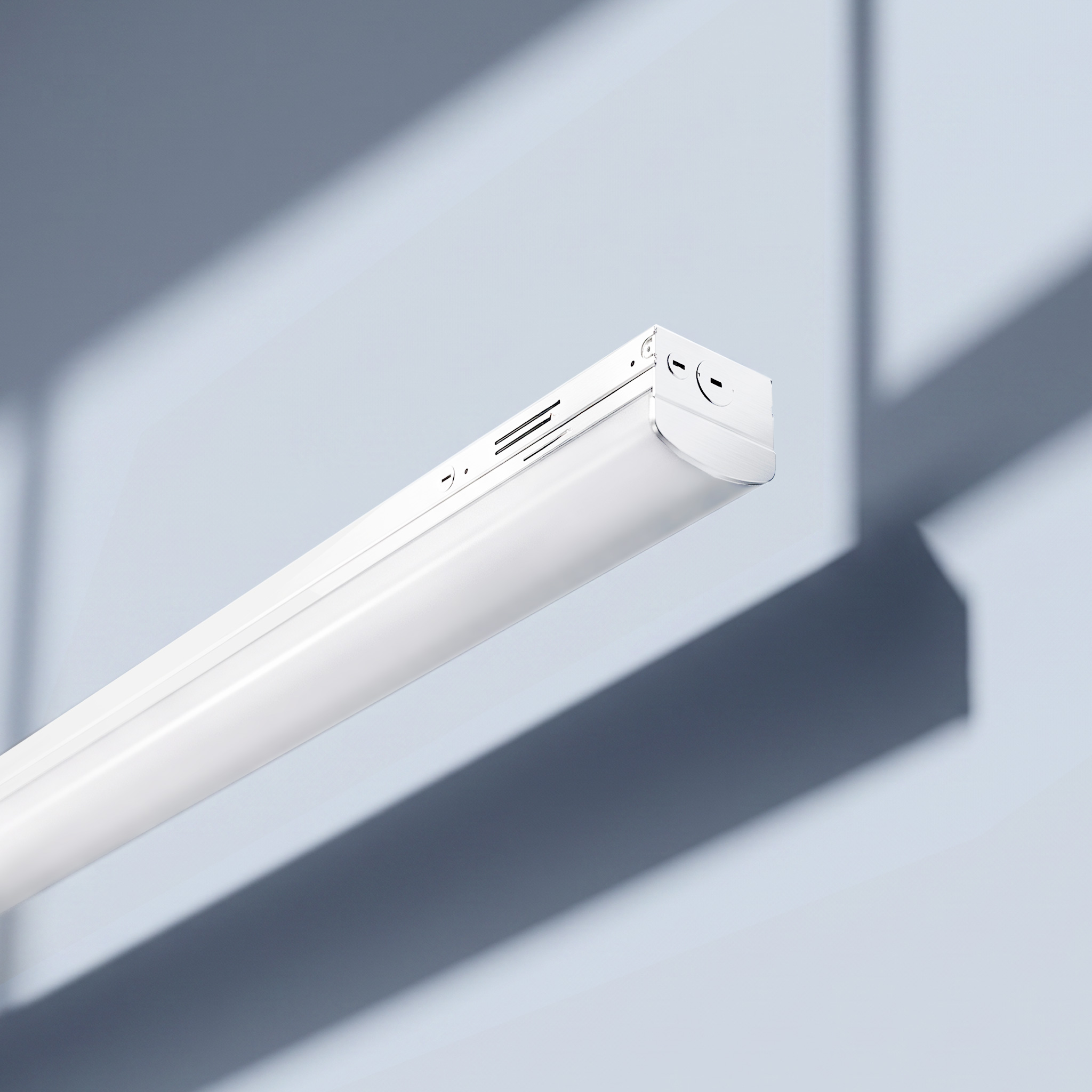

KEY FEATURES

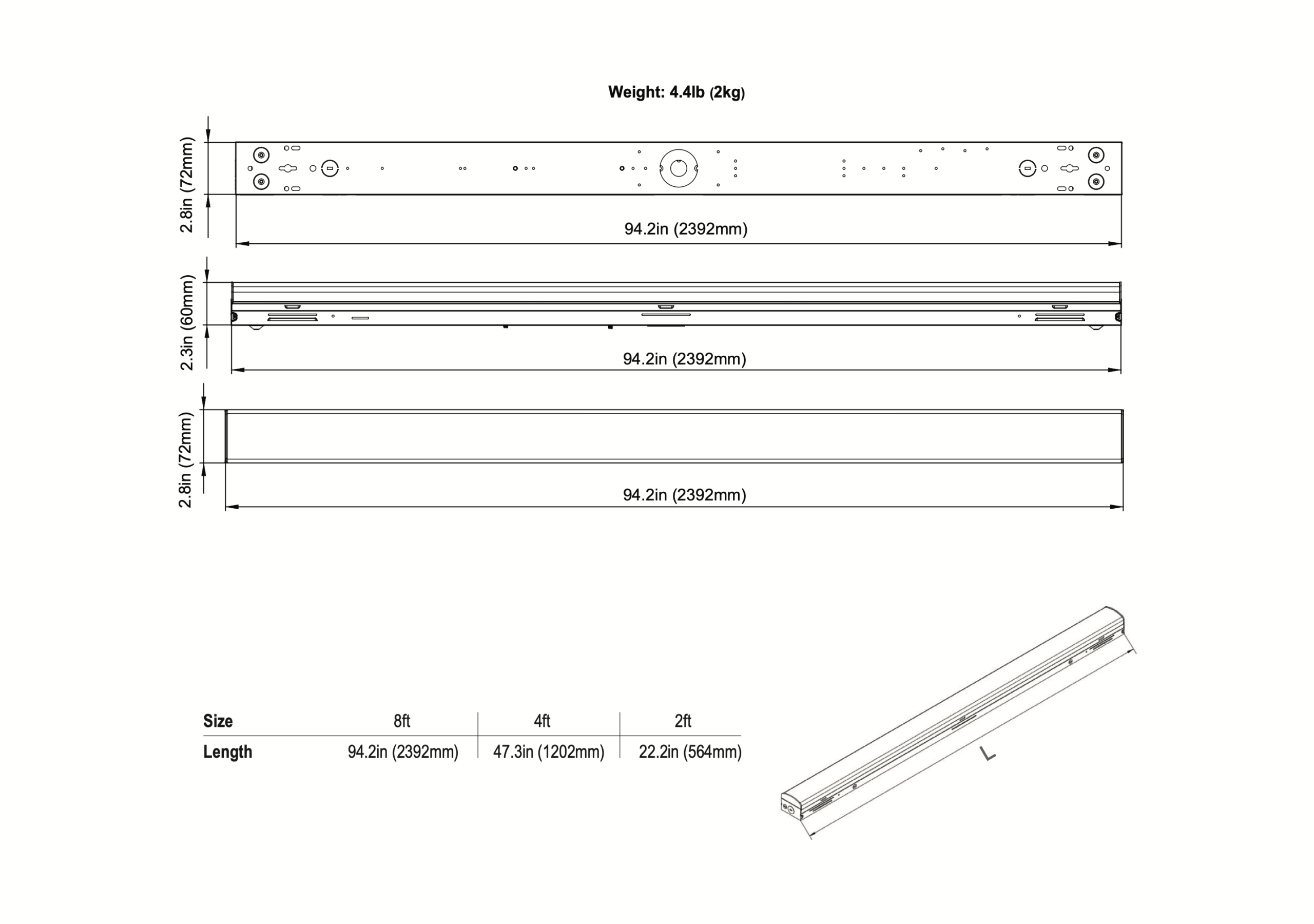

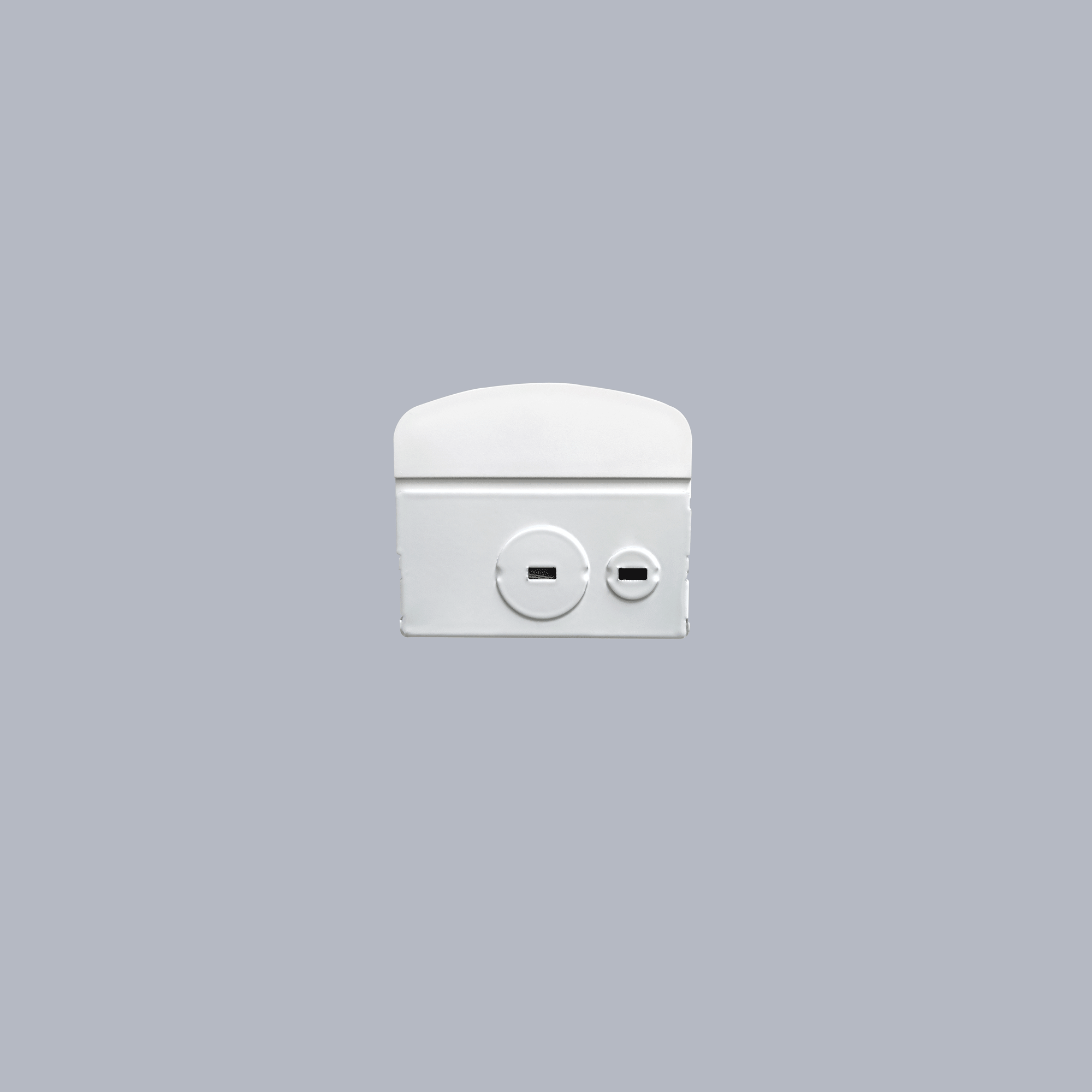

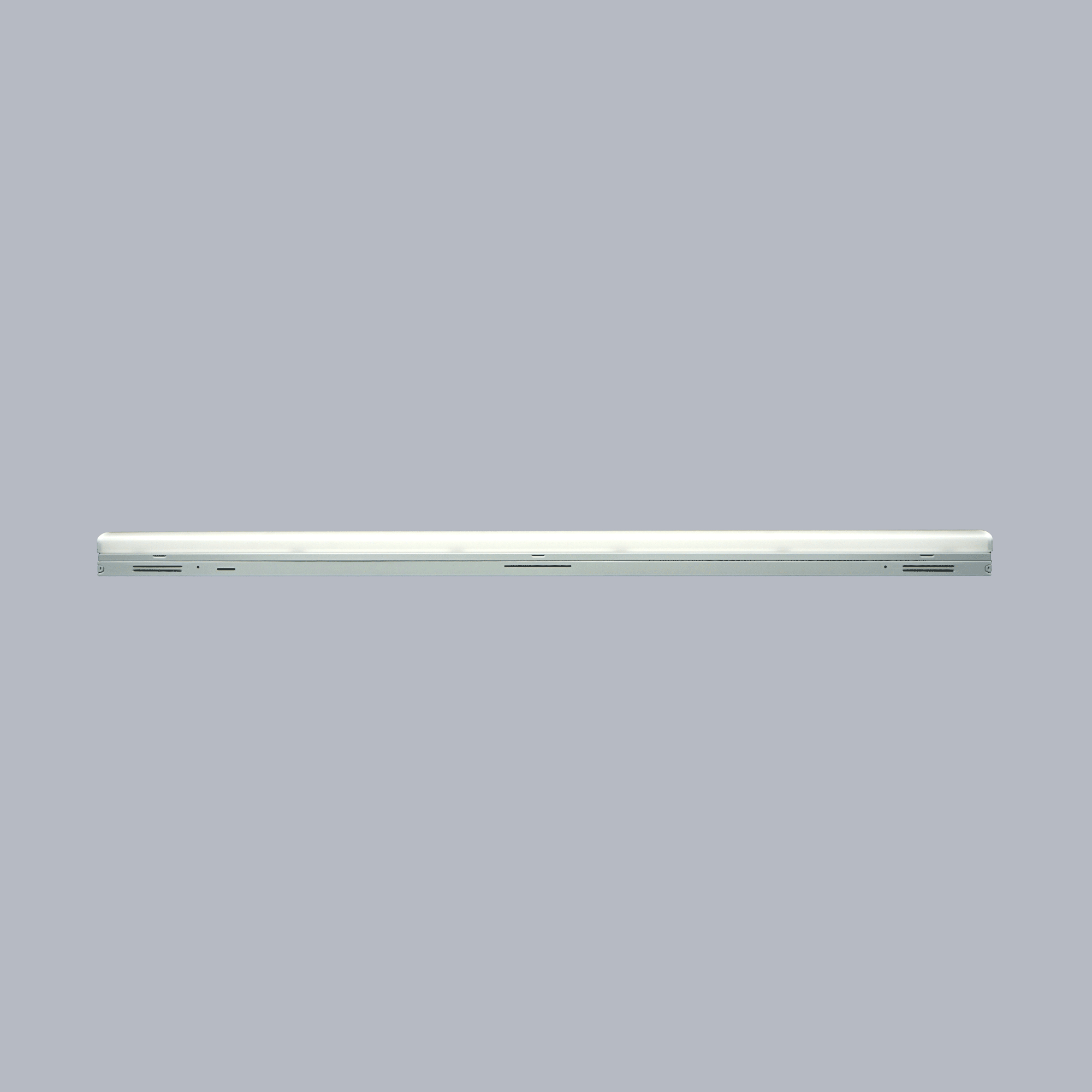

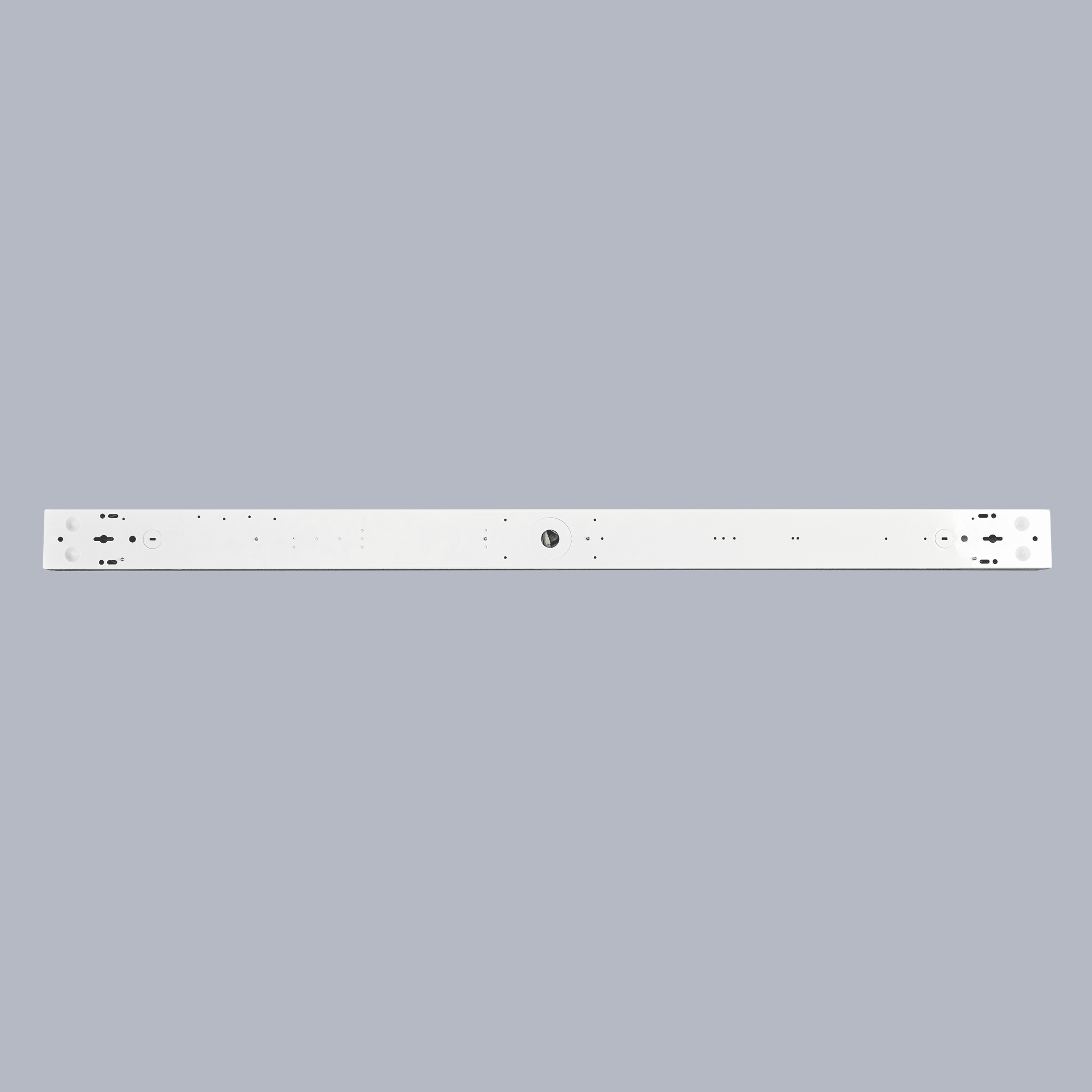

LINE DRAWING

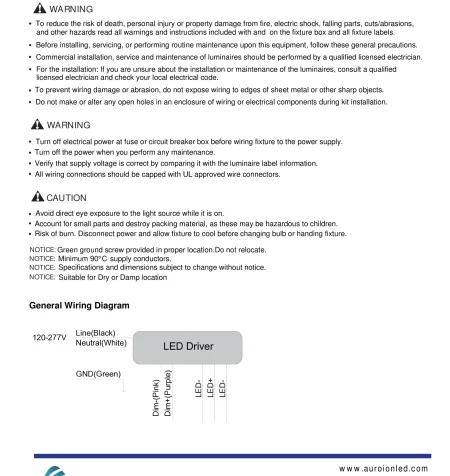

Mounting
A LNS A

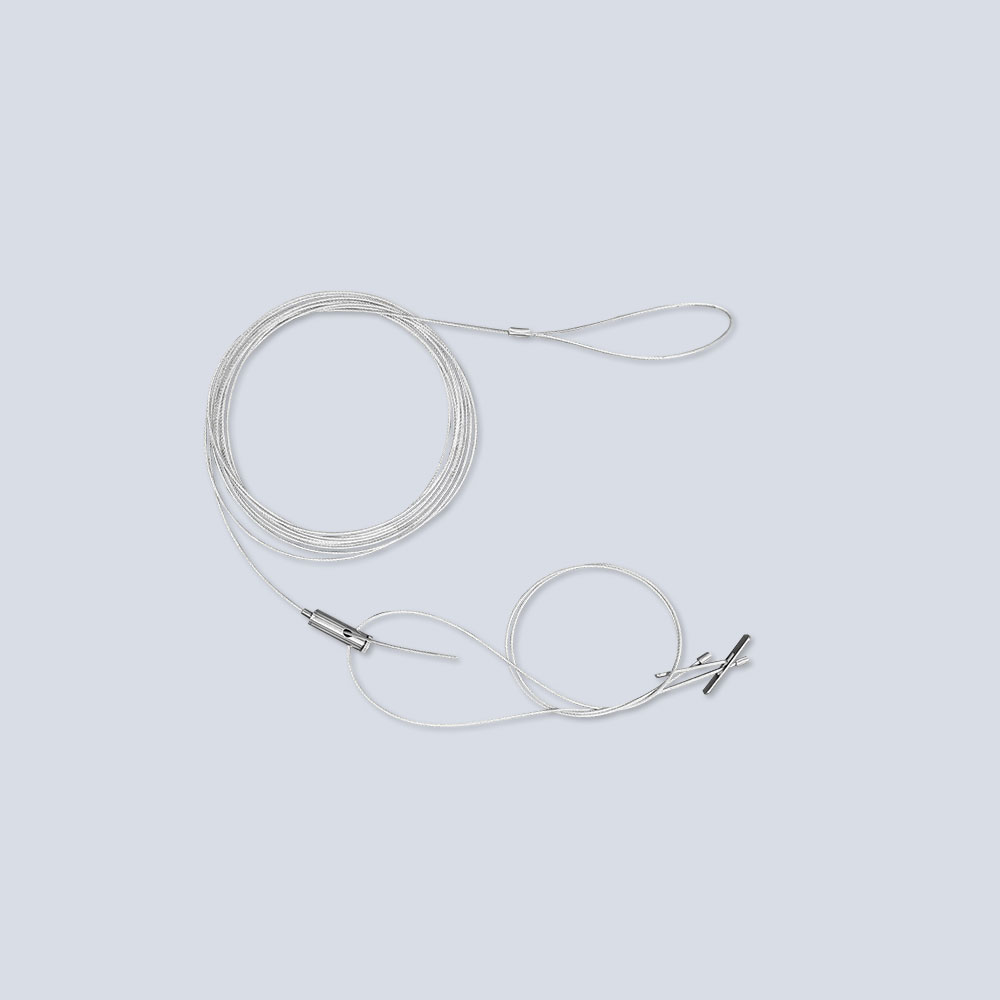

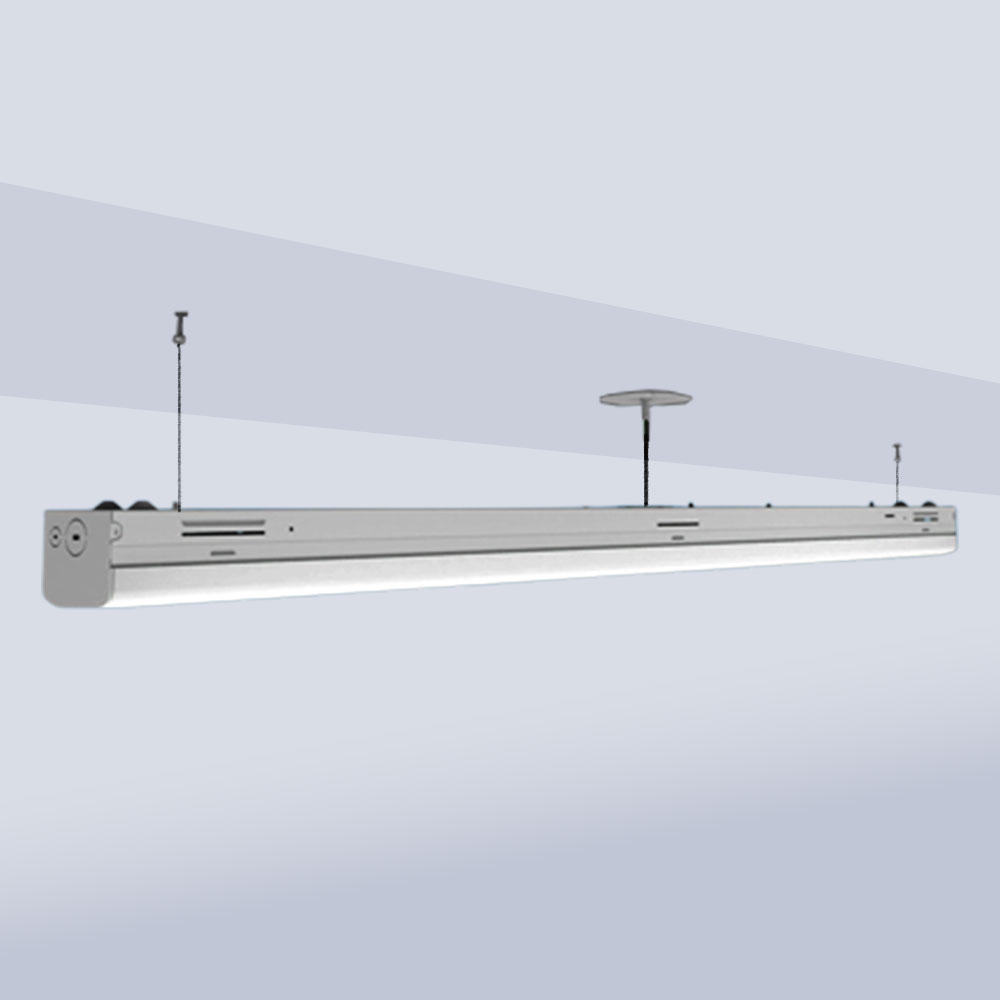

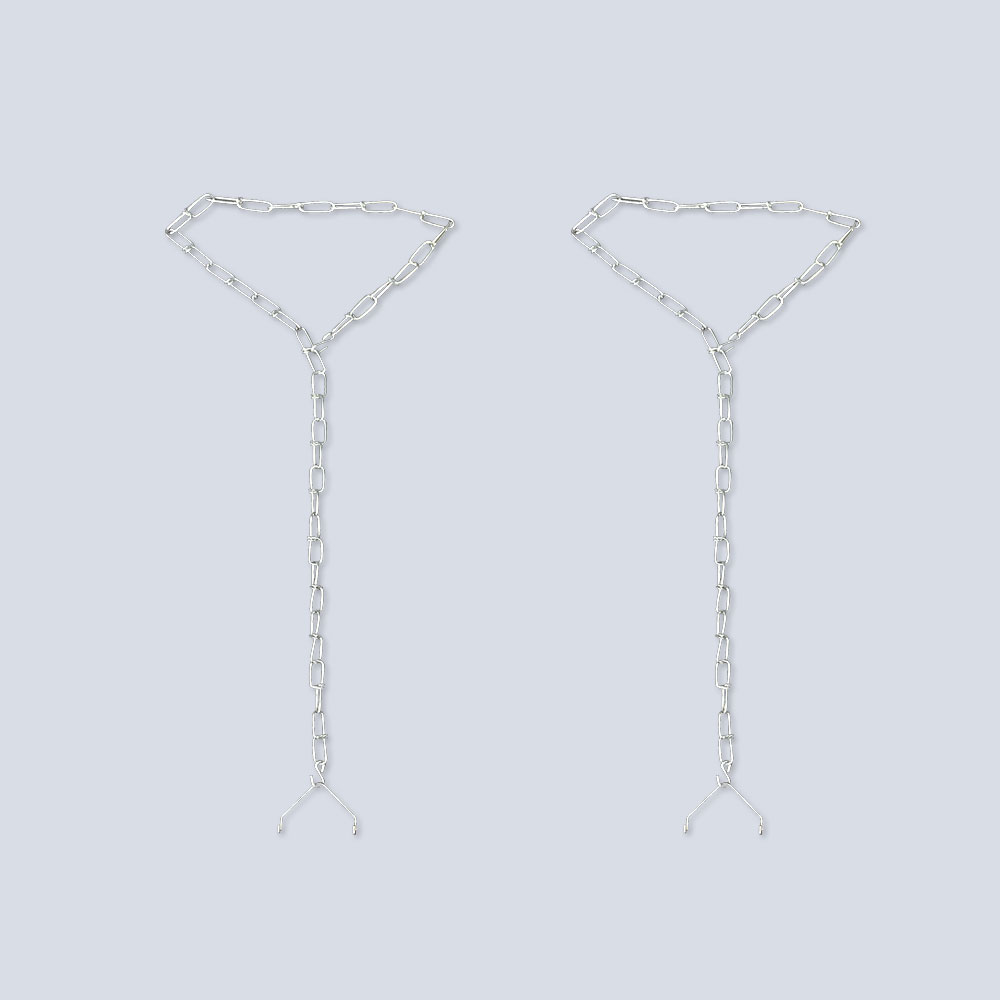

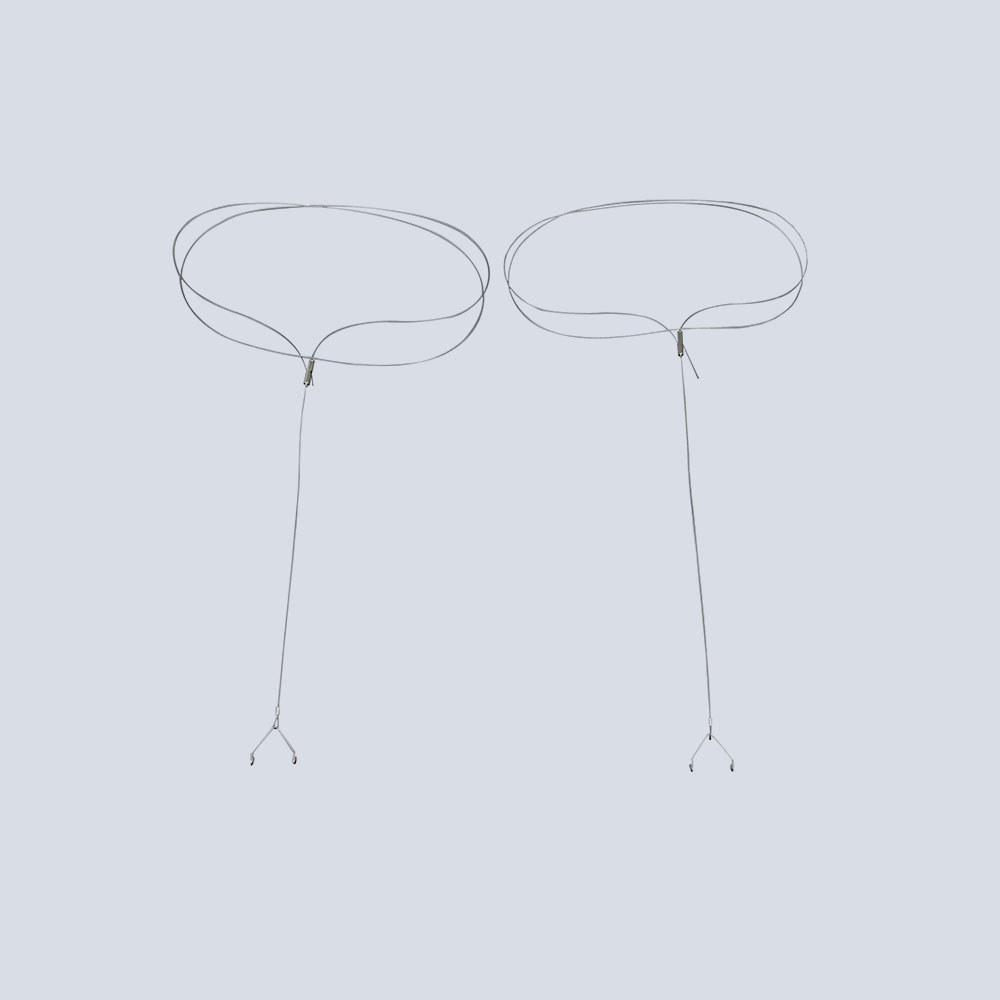

Chain or cable suspending mount w/ brackets and V-hooks
A LNS A
Chain or cable suspending mount w/ brackets and V-hooks
A LNS A
Surface mount, wall w/ brackets and screws
SUSPENDED MOUNT
Ideal for open ceiling applications
RECESSED INSTALL
Clean integration into gypsum & grid ceilings
WALL MOUNTING
Perfect for walls
in corridors & decorative spaces
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|
CONTROLS & SENSORS
SPECS SHEET
FIELD-ADJUST GUIDE
ies files

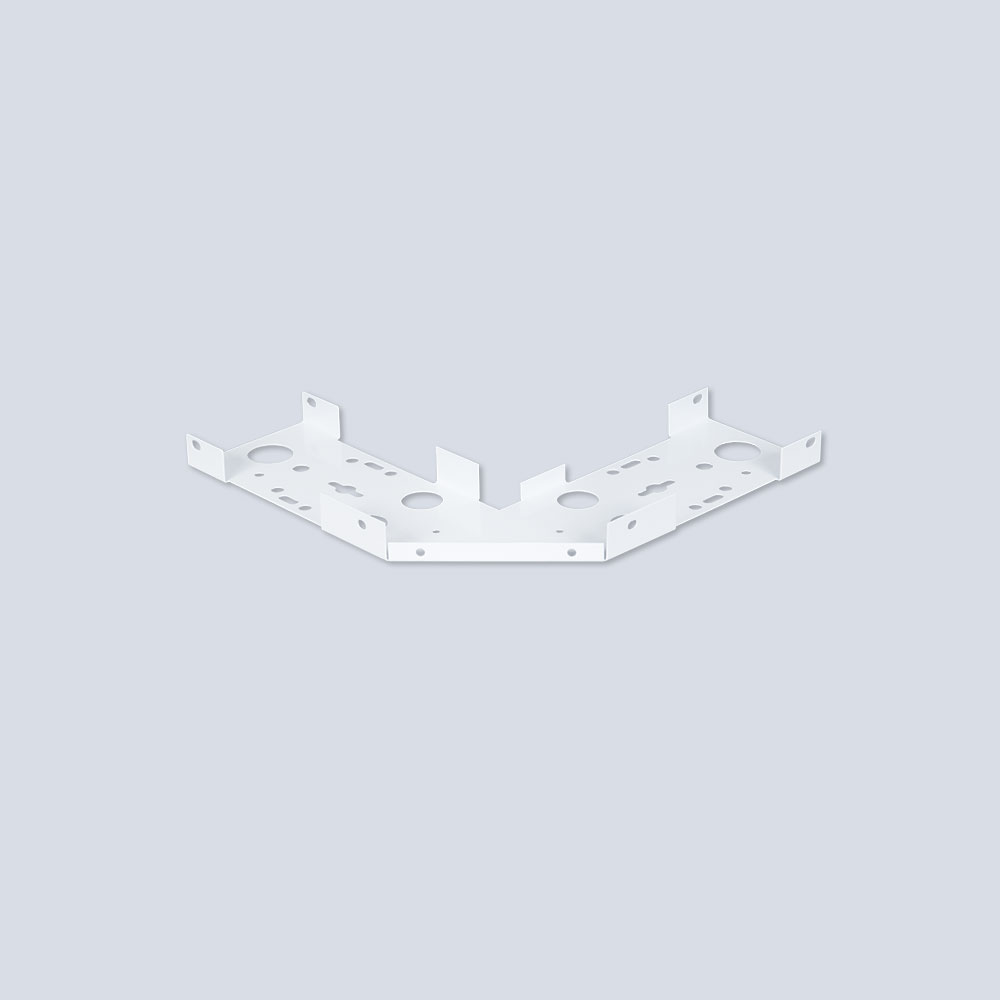

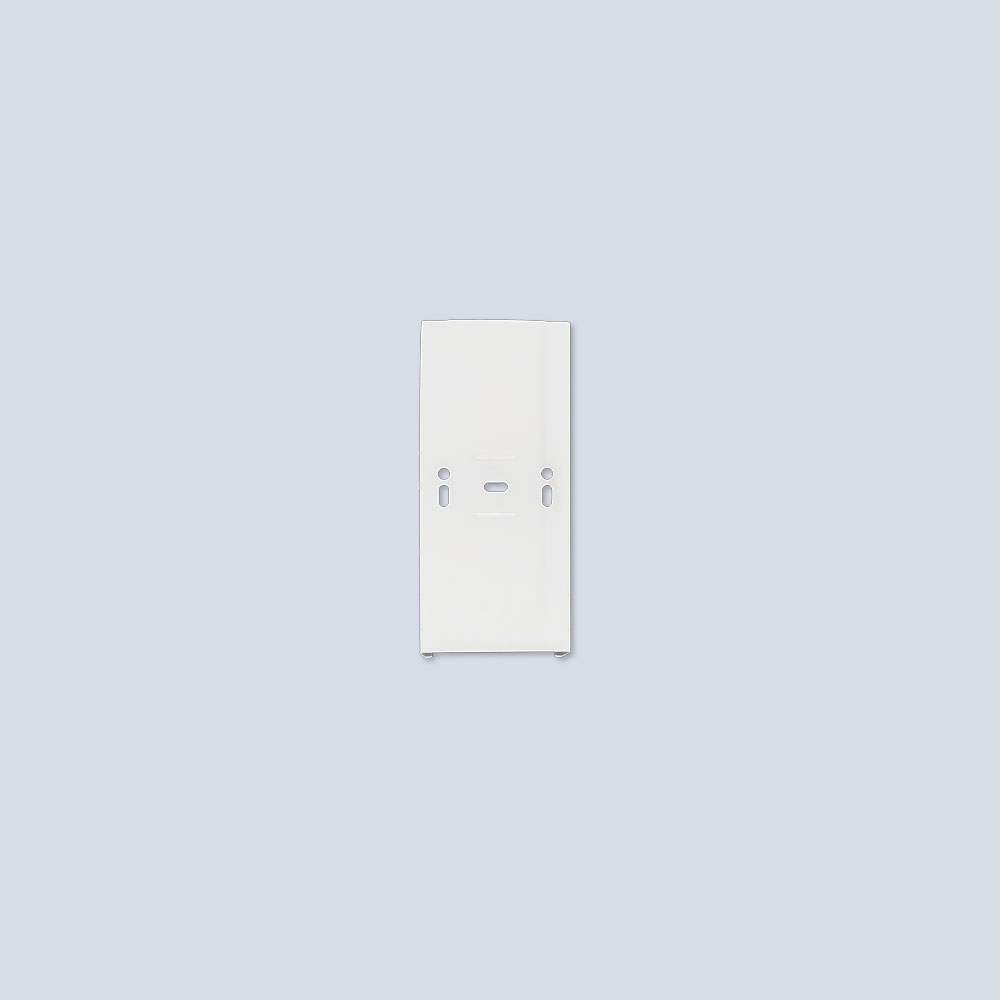

ACCESSORIES
A LNS A
A LNS A
A LNS A
A LNS A
A LNS A
A LNS A
A LNS A
A LNS A
A LNS A
A LNS A
A LNS A
Power Feed Suspension Kit with 4
Non-Feed Suspension Kit with 4

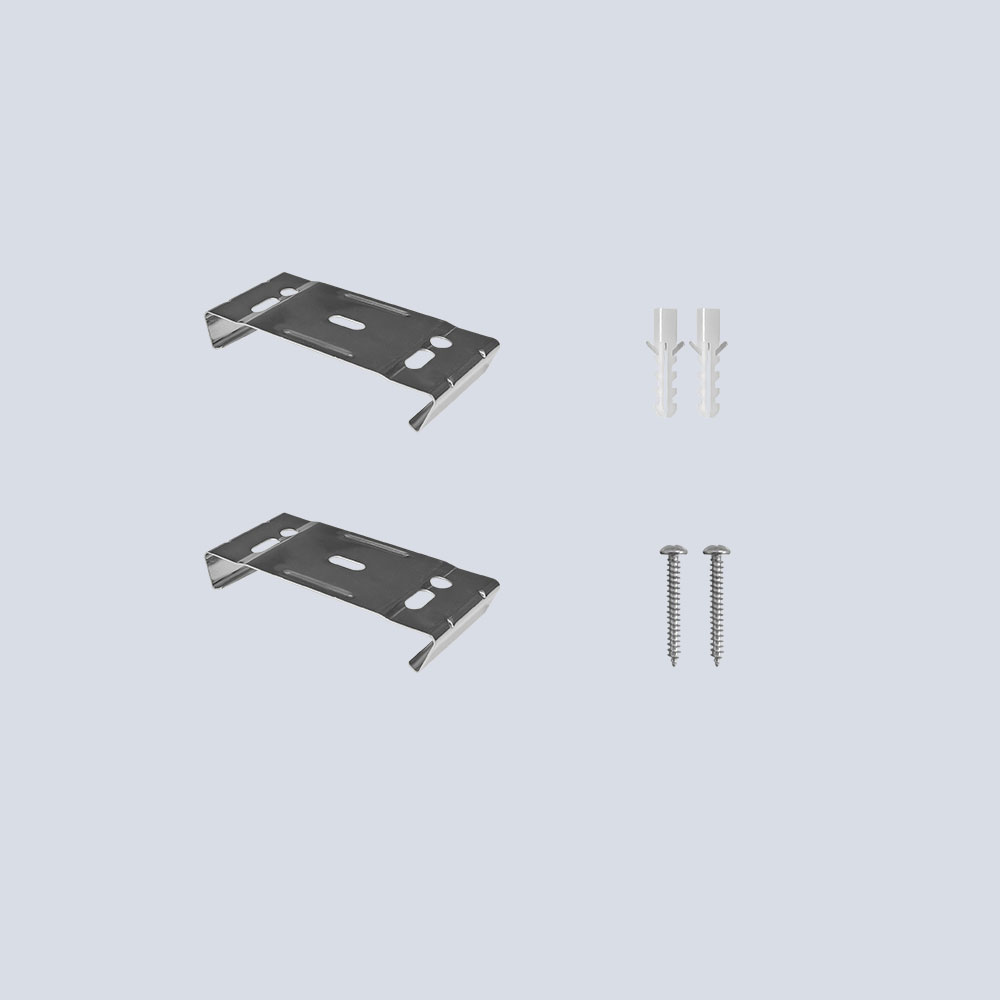

Surface Mount / Wall Mount Kit
Field Installable Quick-Connect
5ft SO Cord, 5-Wire; 10' Power Cord Available
(ordered separately)
5ft SO Cord, 6-Wire for EM; 10'
Power Cord Available (ordered separately)
T-Grid Suspension Kit with 4” & 2”
Non-Feed Suspension Kit with 2
Non-Feed Suspension Kit with Anchor Bracket
Recessed Flanged Mount Kit, 8ft
Recessed Flanged Mount Kit, 4ft
Recessed Flanged Mount Kit, 2ft
Soft Field-Cuttale Diffuer Lens, 49.2' per roll
Documents & Download
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
SPECS SHEET
FIELD-ADJUST GUIDE
ies files
COMPLIANCE
Logistics
COMPLIANCE
Logistics
Packaging
| PACKAGING CONFIGURATION | AL-LWP-4FT | AL-LWP-8FT |
|---|---|---|
| Units per Master Carton | 4 | 4 |
| MASTER CARTON DIMENSIONS | 49.37″ L x 8.5″ W x 7.13″ H | 96.69″ L x 8.5″ W x 7.13″ H |
| MASTER CARTON WEIGHT (lbs) | 22.704 | 45.43 |
| STANDARD PALLET QTY | 45 Cartons (180 Total Fixtures) | 45 Cartons (180 Total Fixtures) |
| TOTAL PALLET WEIGHT (lbs) (including skid) Approx. | 1072.68 | 2145.35 |
| PALLET DIMENSIONS & HEIGHT | 48″ x 48″ x 70″ (Non-Stackable) | 98″ x 48″ x 73″ (Non-Stackable) |
| SHIPPING CLASSIFICATION | Freight Class 85 (LTL Highly Recommended for 10+ Cartons) | Freight Class 85 (LTL Highly Recommended for 10+ Cartons) |
| DELIVERY REQUIREMENT | Liftgate required if no loading dock or no forklift is present on site | Liftgate required if no loading dock or no forklift is present on site |
| Outer box dimensions(mm) | 1254*216*181 | 2456*216*191 |
Ordering Matrix
ORDERING INFORMATION: AL-AFX-S
| MODEL | SIZE | WATTAGE | CCT | VOLTAGE | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | EM = EMERGENCY BACKUP | WH = WHITE |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 4FT | 40/32/24/20W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | PIR = BI-LEVEL MOTION SENSOR | BL = BLACK |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 8FT | 80/64/48/40W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | CC = CUSTOM COLOR |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | LC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | TC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | XC2FT | 20/16/12/10W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | [BLANK] = 120-277V | - | - |
ACCESSORIES (SHIPPED SEPARATELY)
| PRODUCT # | PRODUCT DESCRIPTION |
|---|---|
| AL-AFX-S-PT-5WCORD-10FT-WH | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-5WCORD-10FT-BK | 10FT 5-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-6WCORD-10FT-WH | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (WHITE) |
| AL-AFX-S-PT-6WCORD-10FT-BK | 10FT 6-WIRE SO CORD FOR NON-EM FIXTURE (BLACK) |
| AL-AFX-S-PT-TGT | GRID SUSPENSION KIT |
| AL-AFX-S-PT-RMK-2FT | 2FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-4FT | 4FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-RMK-8FT | 8FT RECESSED MOUNTING KIT |
| AL-AFX-S-PT-DSB-WH | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (WHITE) |
| AL-AFX-S-PT-DSB-BK | QUICK CONNECT DC SENSOR W/ ATTACHMENT BOX (BLACK) |
