FlexiGlow Commercial Series 4FT Linear LED Batten – Selectable 40W / 34W / 26W, 120–277V, 3500K / 4000K / 5000K CCT, AUX Sensor Ready
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-LWP-4FT/40/34/26-CCT
- Linear Highbay
- Selectable CCT
- Commercial Lighting

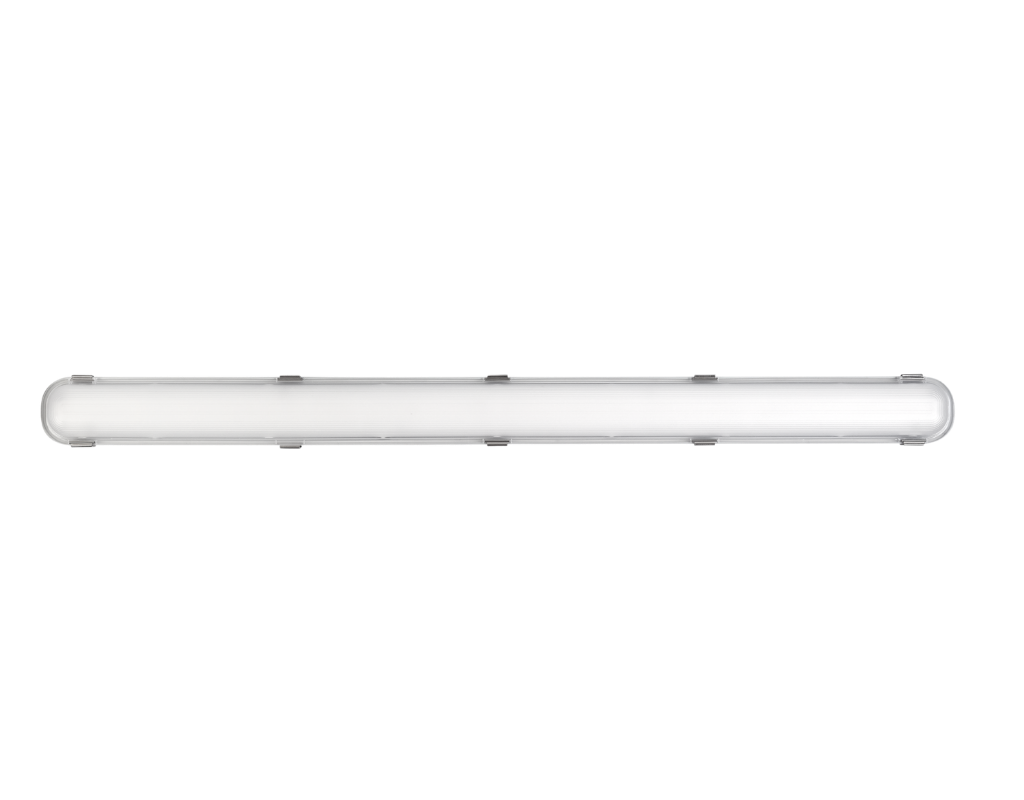

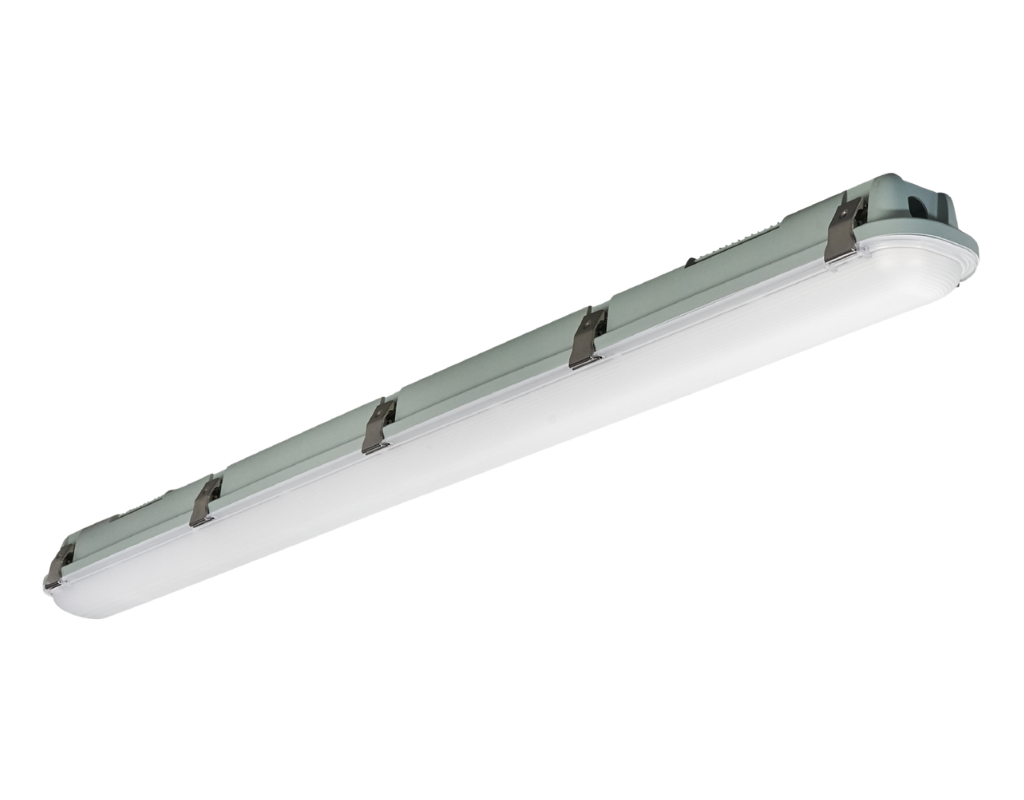

- The AL-LWP-4FT/40/34/26-CCT is a modern 4-foot linear high bay fixture designed to deliver powerful illumination in a sleek form.
- This smart high bay (47.2*3.1*3.7) offers selectable wattages (40/34/26) and color temperatures (3500/4000/5000).
- This model is ideal for varying ceiling heights and lighting requirements. Delivering 6000/5100/3900 lumens, it operates on 120-277.
Selectable Wattage:
Lumens Output
Selectable CCT
Wide input voltage:
Lighting controls
DLC
Fixture Design:
Efficiency
Warranty
-
40/34/26
6000/5100/3900
3500/4000/5000
120-277
12V AUX port
6.0 Premium listed
Compact, linear design
Long lifespan
5-year
-
Selectable Wattage:
40/34/26
Lumens Output
6000/5100/3900
Selectable CCT
3500/4000/5000
Wide input voltage:
120-277
Lighting controls
12V AUX port
DLC
6.0 Premium listed
Fixture Design:
Compact, linear design
Efficiency
Long lifespan
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Selectable Wattage:
40/34/26
Lumens Output
6000/5100/3900
Selectable CCT
3500/4000/5000
Wide input voltage:
Wide input voltage:
Lighting controls
12V AUX port
DLC
6.0 Premium listed
Fixture Design:
Compact, linear design
Efficiency
Long lifespan
Warranty
5-year
-
-
+
Construction

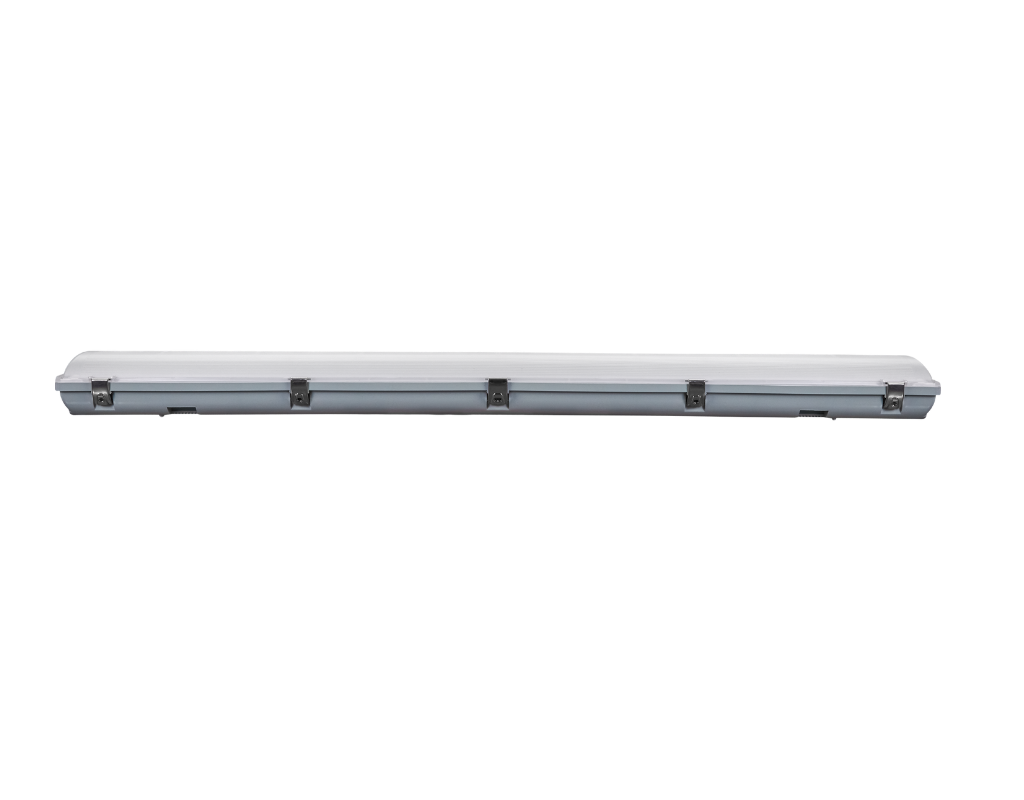

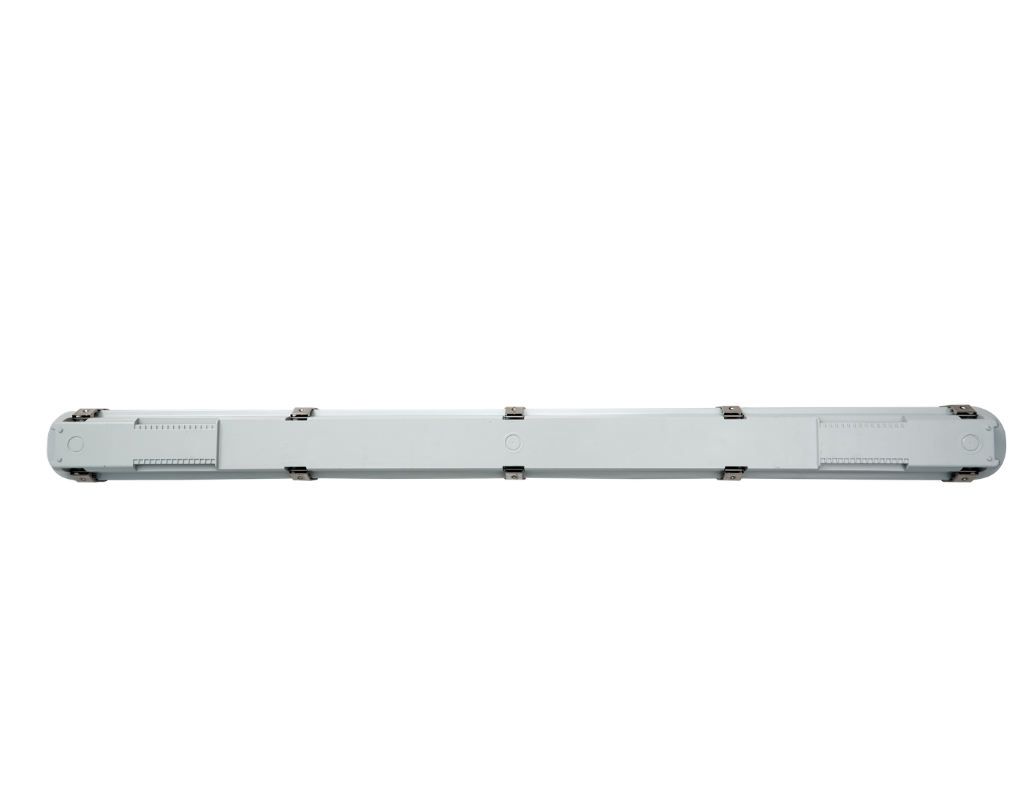

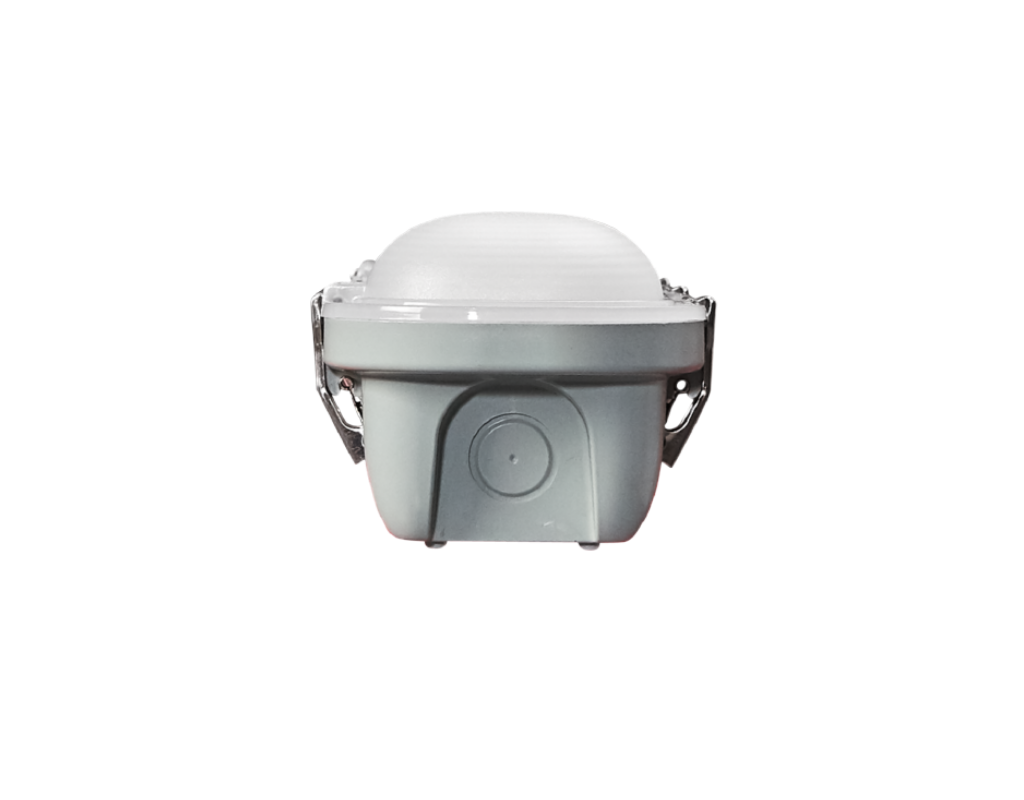

The fixture is made up of a durable light gray 5VA polycarbonate housing with stainless steel latches. For structural strength and long-term reliability, it is equipped with a high-quality frosted polycarbonate (PC) optical lens.
+
Electrical
A universal input voltage of 120-277 is considered best for commercial and industrial use. 6 kV surge protection safeguards against power fluctuations. For optimal energy performance, the unit maintains a power factor of ≥0.9.
+

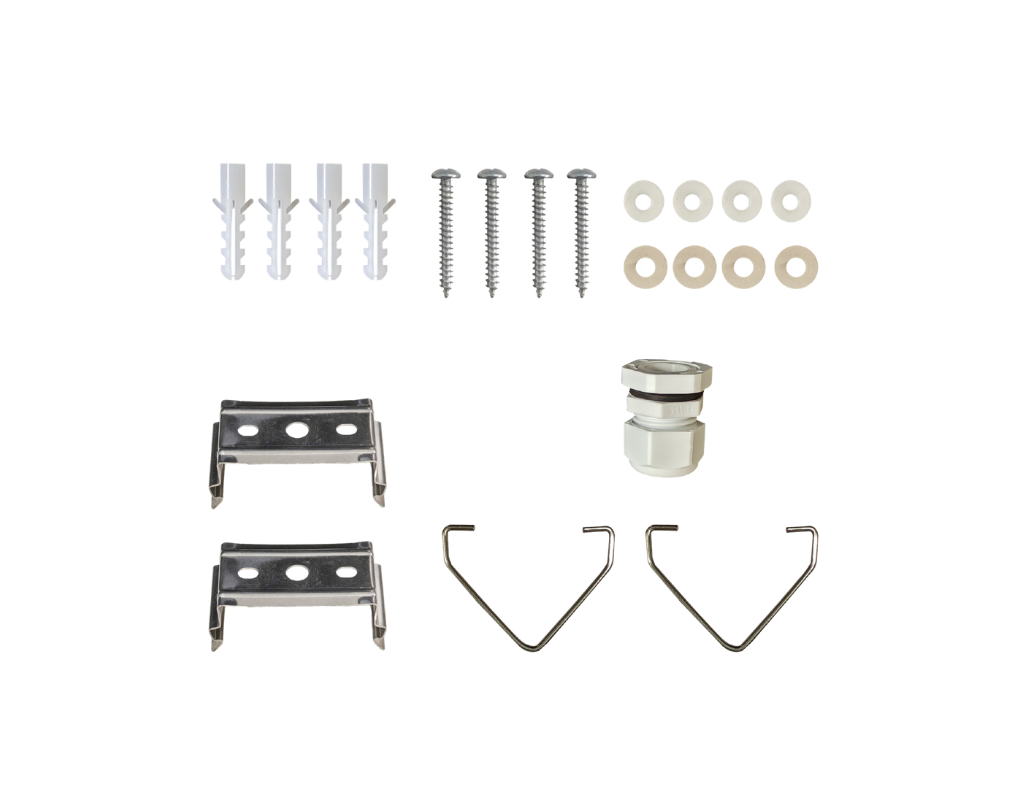

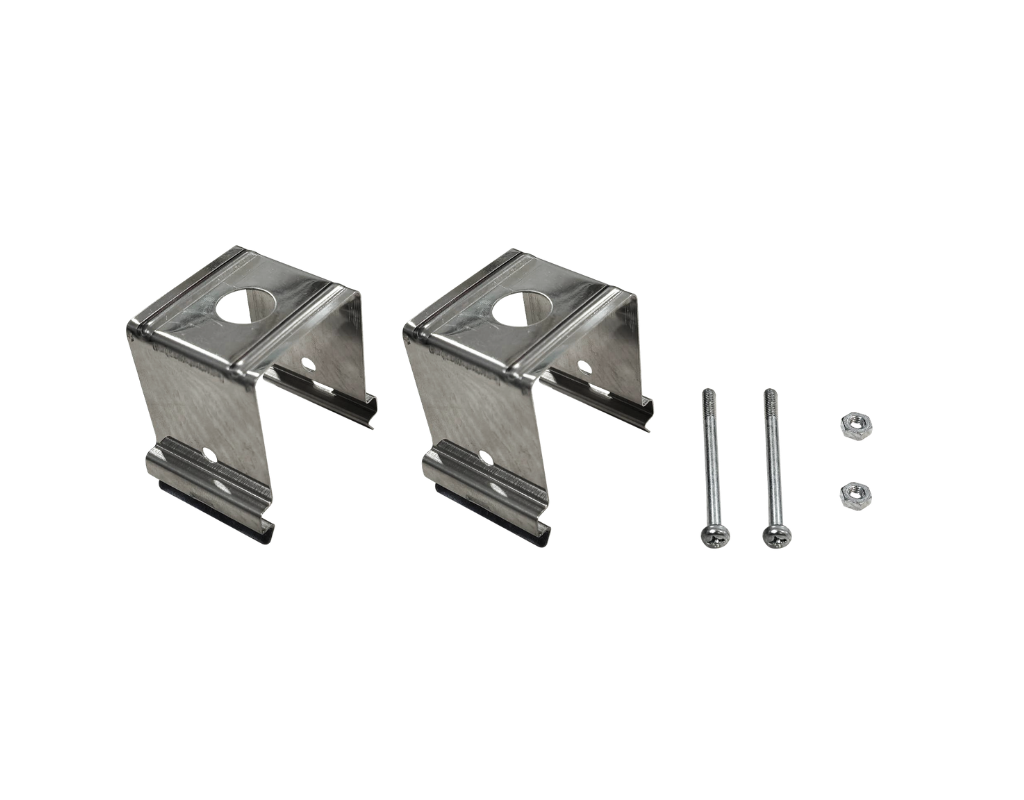

Mounting
This fixture is designed for surface mount installation. The optional mounting includes pendant mounting.
+
Optical
The optical system distributes the beam at a general angle of 120 degrees.
+
Dimming & Control
Their adjustable control strategies and 0-10 V dimming options help in energy saving. A 12V AUX audio jack receptacle, a type of connector for audio devices, is included for sensor integration.
+
Environment
This fixture is UL (Underwriters Laboratories) rated for damp locations, meaning it has been tested and certified for safety in areas where moisture may be present. It works quite well in temperatures ranging from -40°C (-40°F) to 50°C (122°F).
+
Certification
This smart product is UL Listed and also possesses UL 94 and RoHS compliance for environmental safety. DLC premium qualified features make it energy efficient and rebate eligible.
+
Warranty
This product has a 5-year limited warranty for long-term performance.
AL-LWP-4FT/40/34/26-CCT
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-LWP-4FT/40/34/26-CCT | 4FT | 120-277 | 40 | 3500/4000/5000 | 6000 | 150 | 50000 Hours |
| 34 | 3500/4000/5000 | 5100 | |||||
| 26 | 3500/4000/5000 | 3900 |
Complementary Products

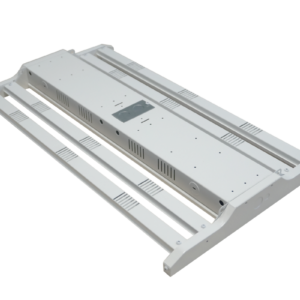

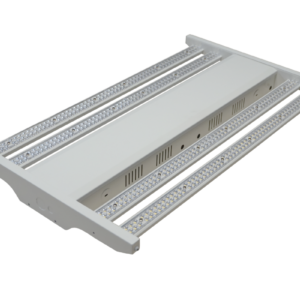

AL-LHBO-2FT/130-50
| Size | 2FT |
| Input Voltage | 120-278 |
| Lumen Output | 19500 |
| Efficiency | 150 |
| Lifespan | 50000 Hours |
AL-LHBO-2FT/92-50
| Size | 2FT |
| Input Voltage | 120-277 |
| Lumen Output | 13800 |
| Efficiency | 150 |
| Lifespan | 50000 Hours |

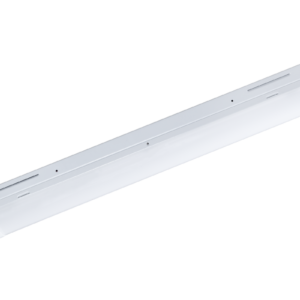

AL-LNS-B-8FT/68/52/42/34-CCT-EM
