RadiantMaster Commercial Series 8FT Linear LED High Bay – Selectable 90W / 75W / 65W, 120–277V, 3500K / 4000K / 5000K CCT, AUX Sensor Ready
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-LNS-A-8FT/90/75/65-CCT
- Linear Highbay
- Selectable CCT
- Commercial Lighting

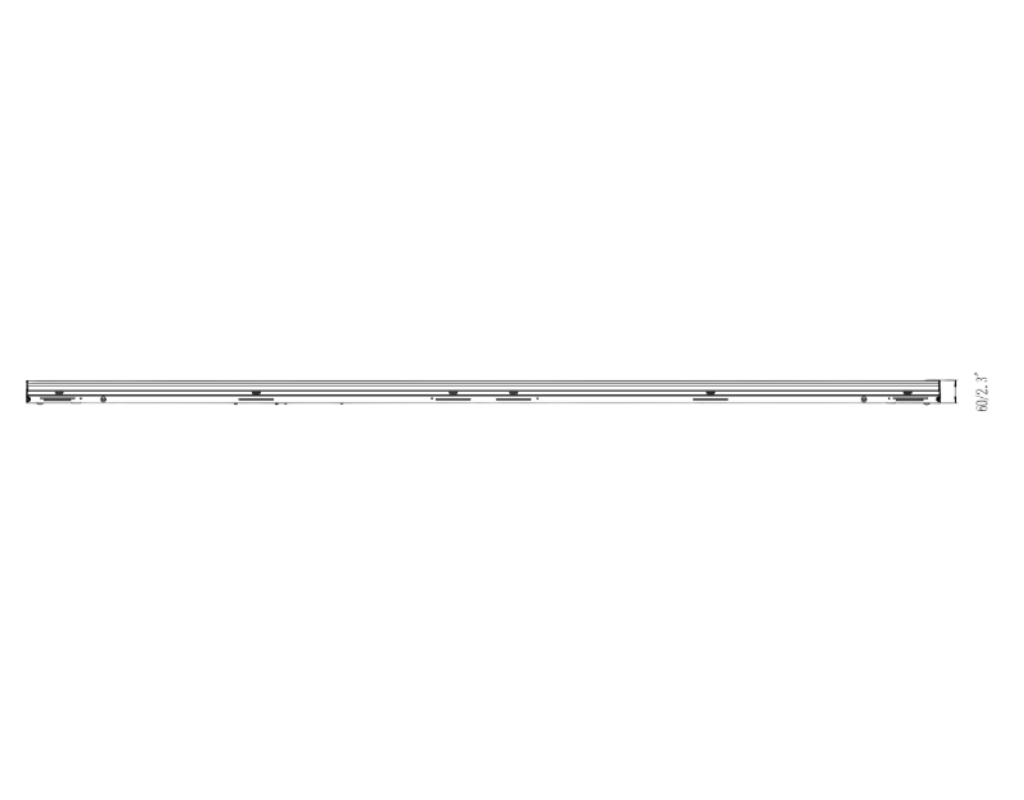

- The AL-LNS-A-8FT/90/75/65-CCT is a modern 8-foot linear high bay fixture designed to deliver powerful illumination in a sleek form. Its streamlined rectangular design (94.2*3.5*3.4) is ideal for demanding commercial and industrial environments.
- This smart high bay offers selectable wattages (90W/75W/65W) and adjustable color temperatures (3500K/4000K/5000K). This flexibility helps to match varying ceiling heights and lighting requirements.
- Delivering 11700/9750/8450 lumens, it operates on 120-277. A 12V AUX port is for control compatibility. DLC 6.0 Premium is listed for energy efficiency and rebate eligibility.
Selectable Wattage:
Lumens Output
Selectable CCT
Wide input voltage:
Lighting controls
DLC
Grommet
Efficiency
Warranty
-
90W/75W/65W
11700/9750/8450
3500K/4000K/5000K
120-277
12V AUX port
6.0 Premium listed
J-box cover
Long lifespan
5-year
-
Selectable Wattage:
90W/75W/65W
Lumens Output
11700/9750/8450
Selectable CCT
3500K/4000K/5000K
Wide input voltage:
120-277
Lighting controls
12V AUX port
DLC
6.0 Premium listed
Grommet
J-box cover
Efficiency
Long lifespan
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Selectable Wattage:
90W/75W/65W
Lumens Output
11700/9750/8450
Selectable CCT
3500K/4000K/5000K
Wide input voltage:
Wide input voltage:
Lighting controls
12V AUX port
DLC
6.0 Premium listed
Grommet
J-box cover
Efficiency
Long lifespan
Warranty
5-year
-
-
+
Construction
The fixture is made up of a durable sheet metal stamped housing with a white finish. For structural strength and long-term reliability, it is equipped with a high-quality polycarbonate (PC) optical glare-control lens. This fine-quality lens produces a uniform, low glare.
+
Electrical
A universal input voltage range of 120-277 is considered best for commercial and industrial use. 6 kV surge protection safeguards against power fluctuations. For optimal energy performance, the unit maintains a power factor of ≥0.9.
+
Mounting

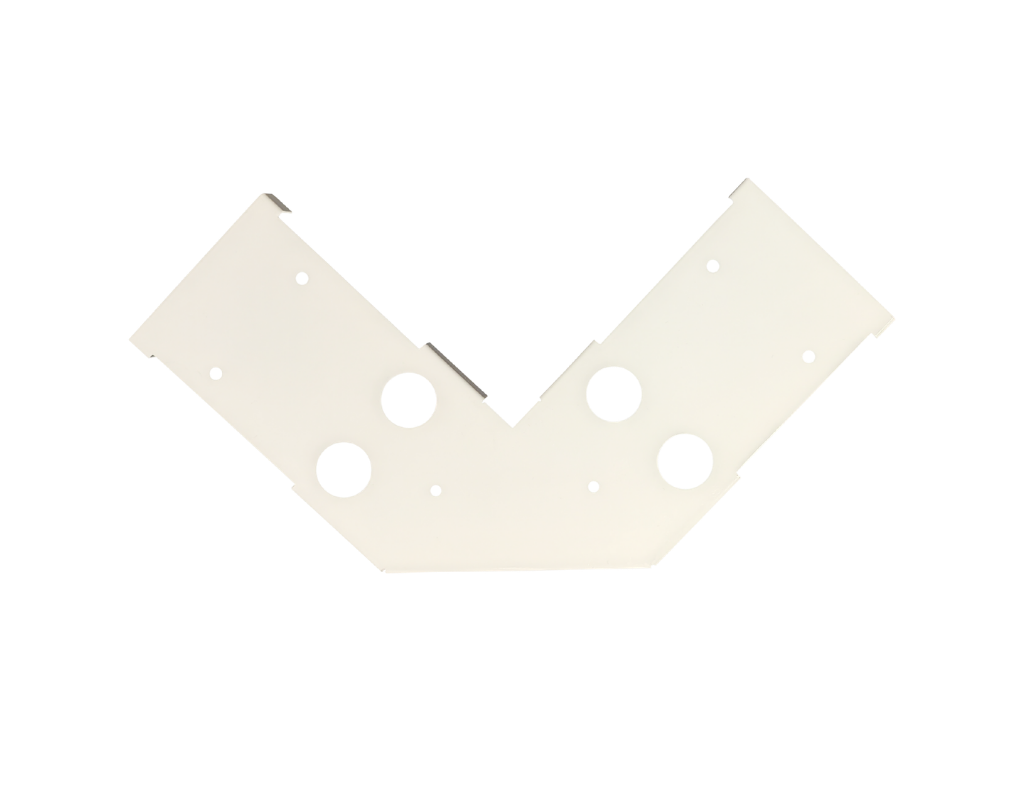

This fixture is designed for surface mount installation. Along with the J-box cover and grommet, the optional mounting packages include a corner connector surface and pendant mount.
+
Optical
A 120° general beam distribution
+
Dimming & Control
Their adjustable control strategies and 0-10 V dimming options help in energy saving. A 12V AUX audio jack receptacle, which is a type of connector used for audio devices, is also included for sensor integration.
+
Environment
This fixture is UL (Underwriters Laboratories) rated for damp locations, meaning it has been tested and certified for safety in areas where moisture may be present. It works quite well in temperatures ranging from -40°C (-40°F) to 50°C (122°F).
+
Certification
This smart product is UL Listed and also possesses RoHS compliance for environmental safety. DLC premium qualified features make it energy efficient and rebate eligible.
+
Warranty
This product has a 5-year limited warranty for long-term performance.
AL-LNS-A-8FT/90/75/65-CCT
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-LNS-A-8FT/90/75/65-CCT | 8FT | 120-277 | 90 | 3000/4000/5000 | 11700 | 130 | 50000 Hours |
| 75 | 3000/4000/5000 | 9750 | |||||
| 65 | 3000/4000/5000 | 8450 |
