LINEAR HIGH BAY OPTICAL- OPTIC SERIES – CONTROL READY 2FT – 78W – 120-277V – 5000K – OPTICAL LENS
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-LHBO-2FT/78-50
- Linear Highbay
- Selectable CCT
- Commercial Lighting

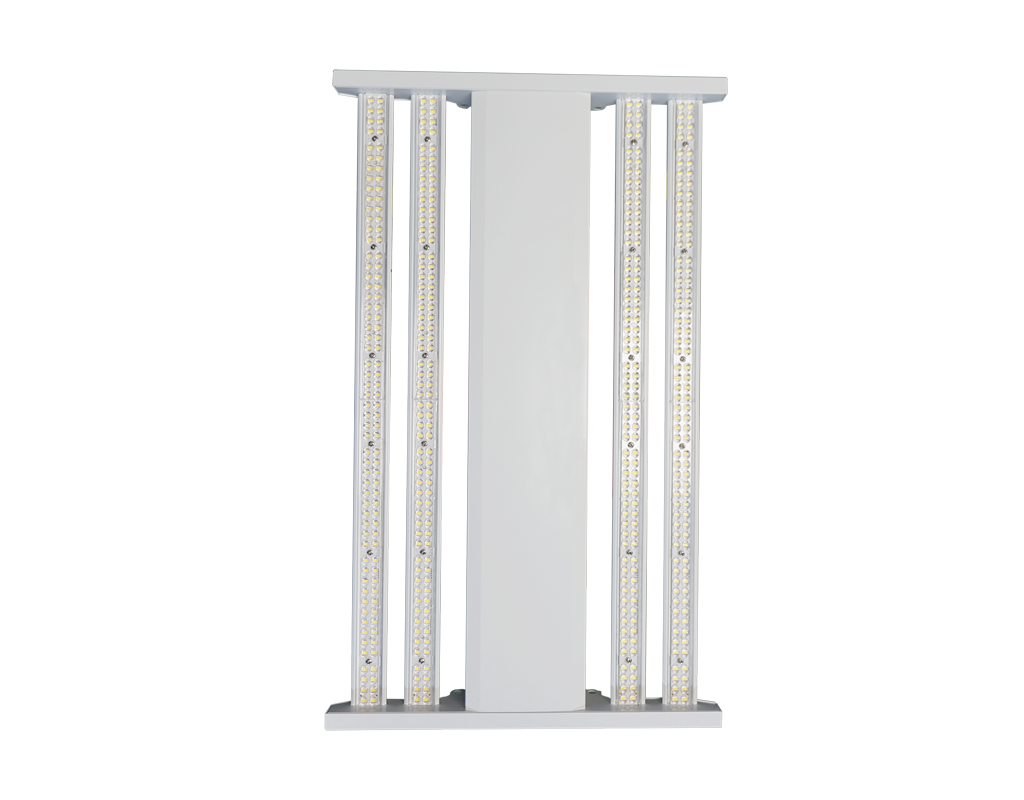

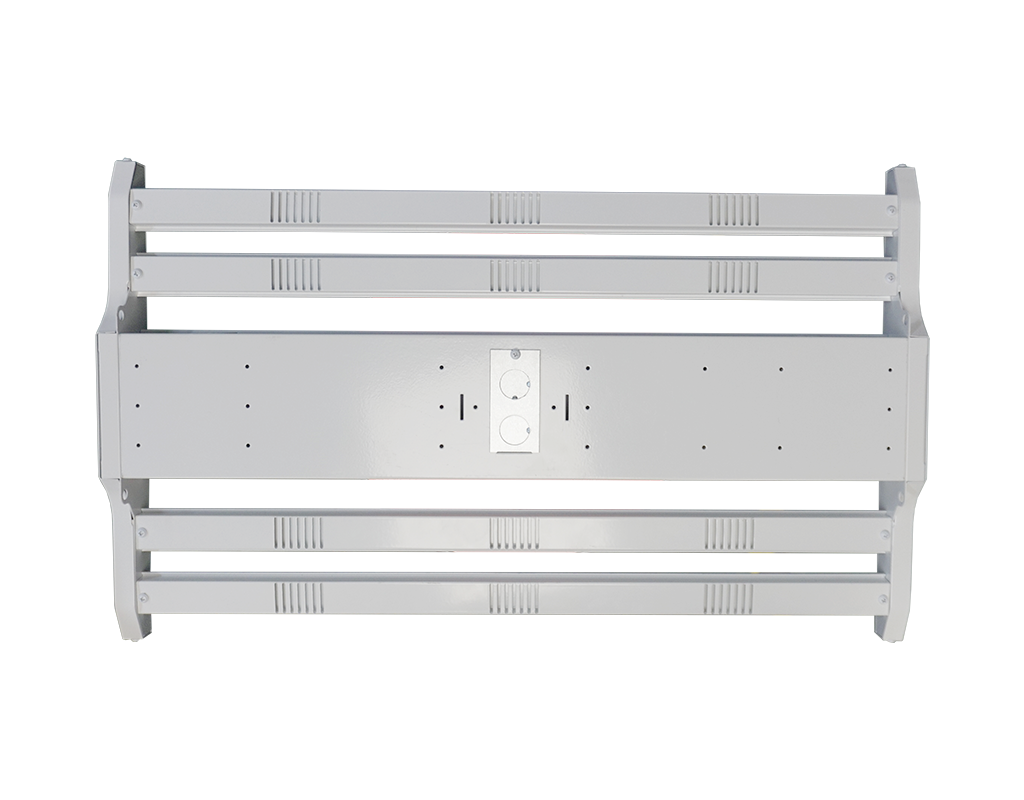

- The AL-LHBO-2FT/78-50 is a compact 2-foot linear high bay fixture designed to deliver powerful illumination in a sleek form. Its streamlined rectangular design (24.8*15*2.2) is ideal for demanding commercial and industrial environments.
- This smart high bay offers 78W and a color temperature of 5000K. This flexibility helps to match varying ceiling heights and lighting requirements.
- Delivering 11700 lumens, it operates on 120-277. A 12V AUX port is for control compatibility. DLC 6.0 Premium is listed for energy efficiency and rebate eligibility.
Wattage:
Lumens Output
CCT
Wide input voltage:
Lighting controls
DLC
Fixture Design:
Included
Efficiency
Warranty
78W
11700
5000K
120-277
12V AUX
6.0 Premium listed
Compact, linear design
V-hook & chain mounting
Long lifespan
5-year
Wattage:
78W
Lumens Output
11700
CCT
5000K
Wide input voltage:
120-277
Lighting controls
12V AUX
DLC
6.0 Premium listed
Fixture Design:
Compact, linear design
Included
V-hook & chain mounting
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Advanced Views (view_69af2b3a66398) template:
+
Construction
This fixture is mainly made up of a durable metal stamped sheet with a decent white finish. For structural strength and long-term reliability, it is equipped with a high-quality polycarbonate (PC) optical glare-control lens. This high-quality lens offers a bright and uniform glare.
+
Electrical
A universal voltage of 120-277 is considered best for commercial and industrial use. 6 kV surge fully protects against power fluctuations. For energy-efficient performance, the unit maintains a power factor of ≥0.9.
+
Mounting
This fixture has a suspended installation option. For aircraft cable suspension, pendant mount, and a surface mount installation, a V-hook and chain are included in the package.
+
Optical
A 45° narrow-beam distribution angle throughout produces a very unified illumination.
+
Dimming & Control
For energy saving, adjustable control strategies and 0-10 V dimming options are available. A 12V AUX is also included for sensor integration and better performance.
+
Environment
This fixture works quite well in temperatures ranging from -40°C (-40°F) to 50°C (122°F). It works well in damp places and produces the best results.
+
Certification
This smart product is UL Listed and DLC premium qualified. It holds RoHS compliance for environmental safety.
+
Warranty
A 5-year limited warranty for long-term performance is available.
AL-LHBO-2FT/78-50
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-LHBO-2FT/78-50 | 2FT | 120-277 | 78 | 5000 | 11700 | 150 | 50000 Hours |
