LINEAR HIGH BAY OPTICAL- OPTIC SERIES – CONTROL READY 2FT – 155W – 120-277V – 5000K – OPTICAL LENS
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-LHBO-2FT/155-CCT
- Linear Highbay
- Selectable CCT
- Commercial Lighting

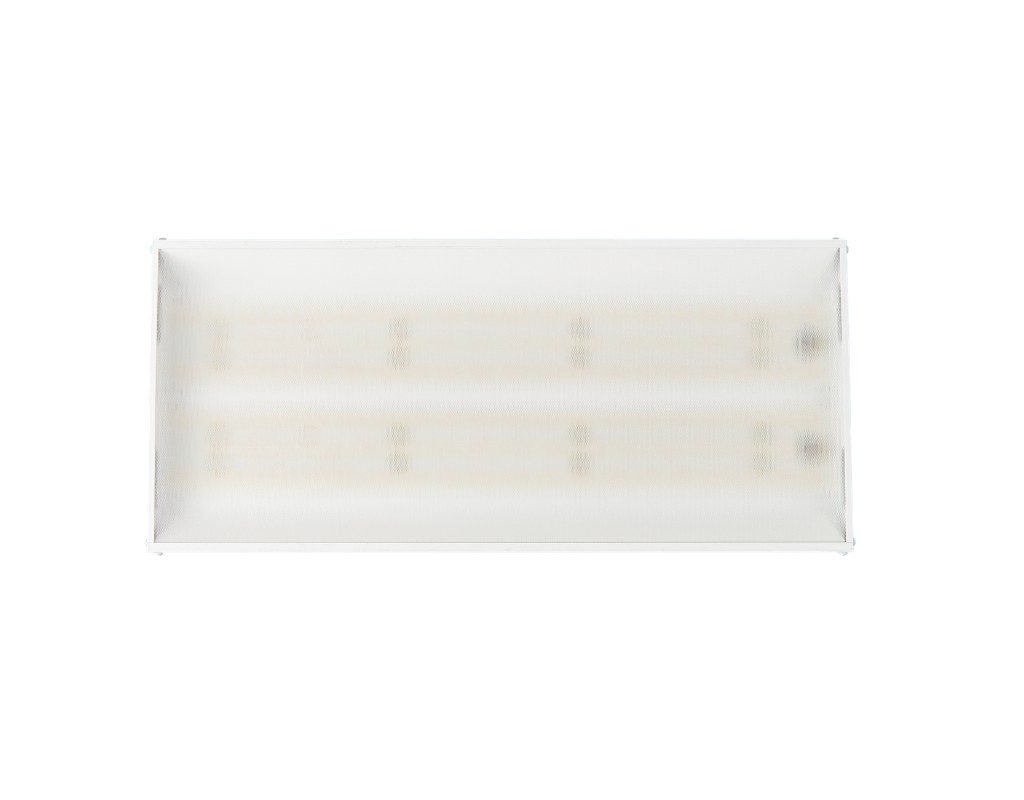

- The AL-LHBO-2FT/155-CCT is a compact 2-foot linear high bay fixture designed to deliver powerful illumination in a sleek form. Its streamlined rectangular design (24.8*15*2.2) is ideal for demanding commercial and industrial environments.
- This smart high bay offers 155W and a color temperature of 5000K. This flexibility helps to match varying ceiling heights and lighting requirements.
- Delivering 23250 lumens, it operates on 120-277. A 12V AUX port is for control compatibility.
Wattage
Lumens Output
CCT
Wide input voltage:
Lighting controls
Compact
Included
Efficiency
Warranty
-
155W
23250
5000K
120-277
12V AUX
low-profile linear design
Chain mounting
Long lifespan
5-year
-
Wattage
155W
Lumens Output
23250
CCT
5000K
Wide input voltage:
120-277
Lighting controls
12V AUX
Compact
low-profile linear design
Included
Chain mounting
Efficiency
Long lifespan
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Wattage
155W
Lumens Output
23250
CCT
5000K
Wide input voltage:
Wide input voltage:
Lighting controls
12V AUX
Compact
low-profile linear design
Included
Chain mounting
Efficiency
Long lifespan
Warranty
5-year
-
-
+
Construction
The fixture is made up of a durable sheet metal stamped housing with a white finish. For structural strength and long-term reliability, it is equipped with a high-quality PMMA (polymethyl methacrylate) lens. This fine-quality lens produces a uniform, low glare.
+
Electrical
A universal input voltage range of 120-277 is considered best for commercial and industrial use. 6 kV surge protection safeguards against power fluctuations. For optimal energy performance, the unit maintains a power factor of ≥0.9.
+
Mounting
This fixture is designed for suspended installation. Along with the V-hook and chain, optional mounting packages include aircraft cable suspension, pendant mount, and a surface mount.
+
Optical
A 90° general distribution lens.
+
Dimming & Control
Their adjustable control strategies and 0-10 V dimming options help in energy saving. A 12V AUX audio jack receptacle is also included for sensor integration.
+
Environment
This fixture is UL rated, meaning it has been tested and certified by Underwriters Laboratories for safety in damp locations. It works quite well in temperatures ranging from -40°C (-40°F) to 50°C (122°F).
+
Certification
This smart product is UL Listed and also possesses RoHS compliance for environmental safety. DLC premium qualified features make it energy efficient and rebate eligible.
+
Warranty
This product has a 5-year limited warranty for long-term performance.
AL-LHBO-2FT/155-CCT
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-LHBO-2FT/155-CCT | 2FT | 120-277 | 155 | 5000 | 23250 | 150 | 50000 Hours |
