BrightEdge Industrial Series 3FT Linear LED High Bay – Selectable 270W / 230W / 200W, 120–277V, 4000K / 5000K CCT, AUX Sensor Ready
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-LHB-3FT-270-230-200-CCT
- Linear Highbay
- Selectable CCT
- Commercial Lighting
The AL-LHB-3FT-270-230-200-CCT is an energy-efficient fixture. Built for commercial and industrial environments, this fixture offers adjustable wattage with high lumen output and customized light output and color temperature at the time of installation.
Selectable Wattage:
Lumens Output
Selectable CCT
Wide input voltage:
Lighting controls
DLC
Dimensions:
Mounting
Efficiency
Warranty
270W / 230W / 200W
40500/34500/30000
4000K/5000K
120-277
3.5 mm AUX port
6.0 Premium listed
31.1*10.2*1.8
V-hook & chain
Long lifespan
5-year
Selectable Wattage:
270W / 230W / 200W
Lumens Output
40500/34500/30000
Selectable CCT
4000K/5000K
Wide input voltage:
120-277
Lighting controls
3.5 mm AUX port
DLC
6.0 Premium listed

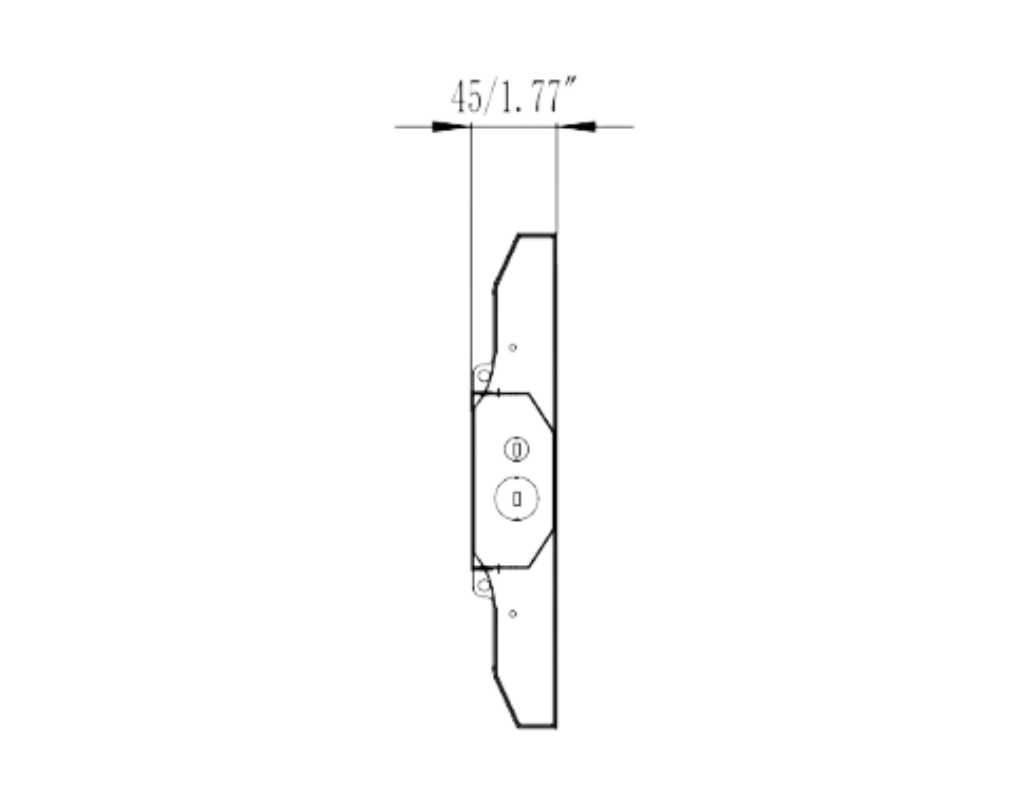

Dimensions:
31.1*10.2*1.8
Mounting
V-hook & chain
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Selectable Wattage:
270W / 230W / 200W
Lumens Output
40500/34500/30000
Selectable CCT
4000K/5000K
Wide input voltage:
Wide input voltage:
Lighting controls
3.5 mm AUX port
DLC
6.0 Premium listed
Dimensions:
31.1*10.2*1.8
Mounting
V-hook & chain
Efficiency
Long lifespan
Warranty
5-year
+
Construction

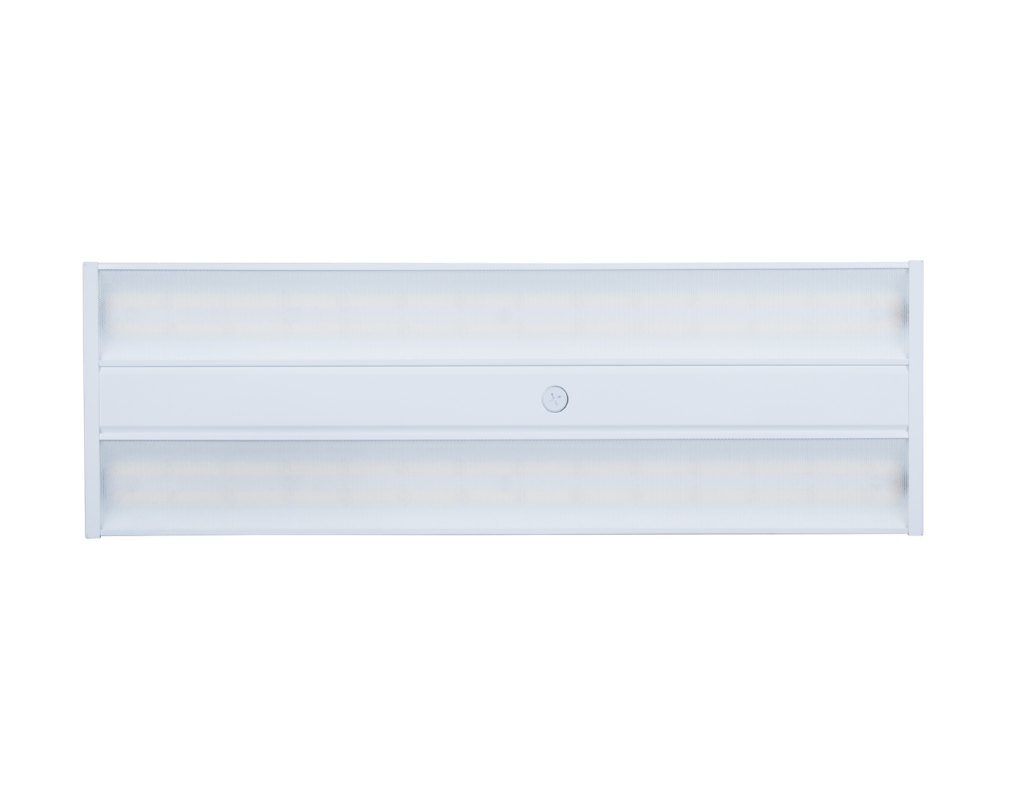

The fixture has a strong sheet-metal body with a white finish for durability and long life. It includes a high-quality polycarbonate (PC) lens designed to reduce glare and provide clear, comfortable lighting.
+
Electrical
120–277V universal input for versatile applications, with 6 kV surge protection against power fluctuations. A power factor of ≥0.9 is used for reliable and efficient performance.
+
Mounting

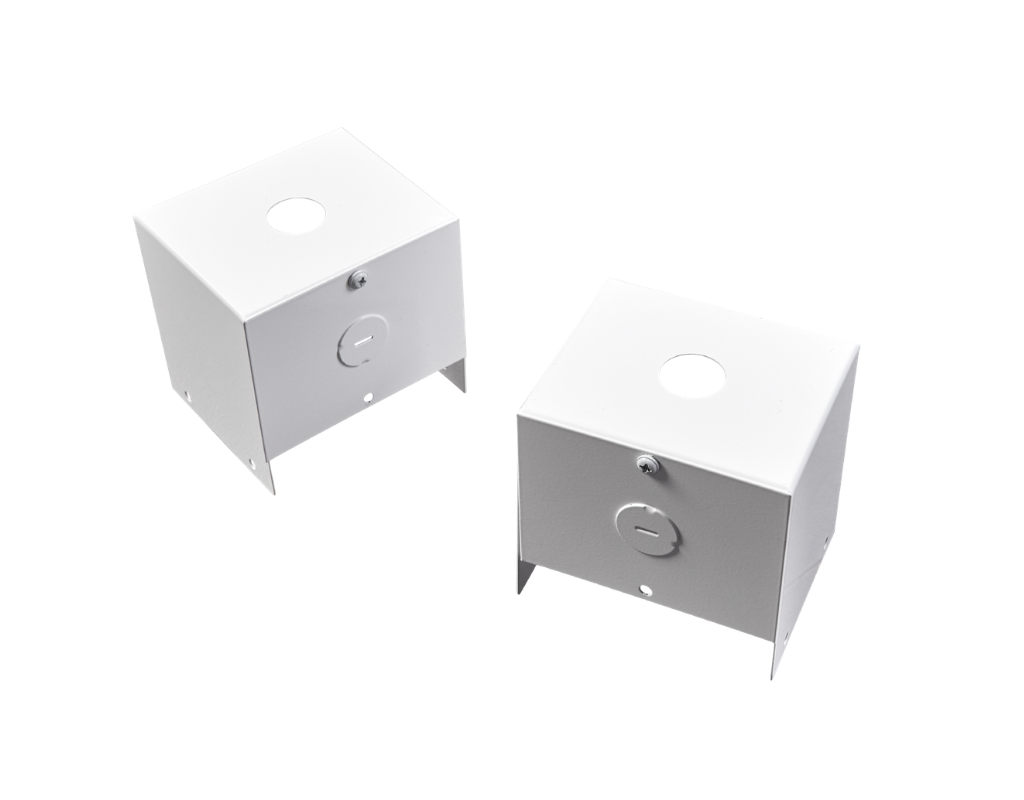

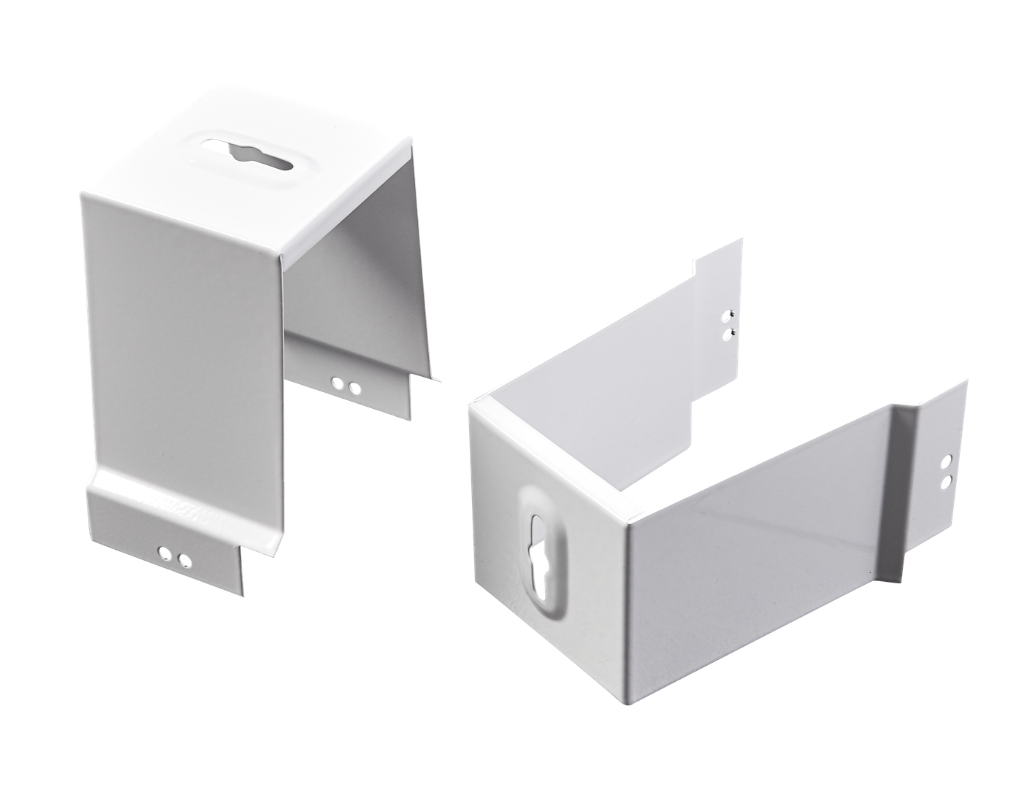

This unit is designed for both suspended installation using a V-hook and chain and also optional aircraft cable, pendant, and surface mounting options for flexible setup.
+
Optical
A 90° beam angle produces a focused, uniform illumination ideal for high-ceiling applications.
+
Dimming & Control
Support 0–10V dimming for adjustable light controls and efficient energy savings. Includes a 3.5 mm AUX port for easy plug-and-play sensor integration.
+
Environment
For damp locations and demanding environments, it operates reliably in temperatures ranging from -40°C (-40°F) to 50°C (122°F).
+
Certification
This product holds RoHS compliance, is DLC Premium qualified, and is UL Listed for environmental control and safety.
+
Warranty
A reliable 5-year limited warranty is available.
AL-LHB-3FT-270-230-200-CCT
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-LHB-3FT-270-230-200-CCT | 3FT | 120-277 | 270 | 4000/5000 | 40500 | 150 | 50000 Hours |
| 230 | 4000/5000 | 34425 | |||||
| 200 | 4000/5000 | 30000 |
