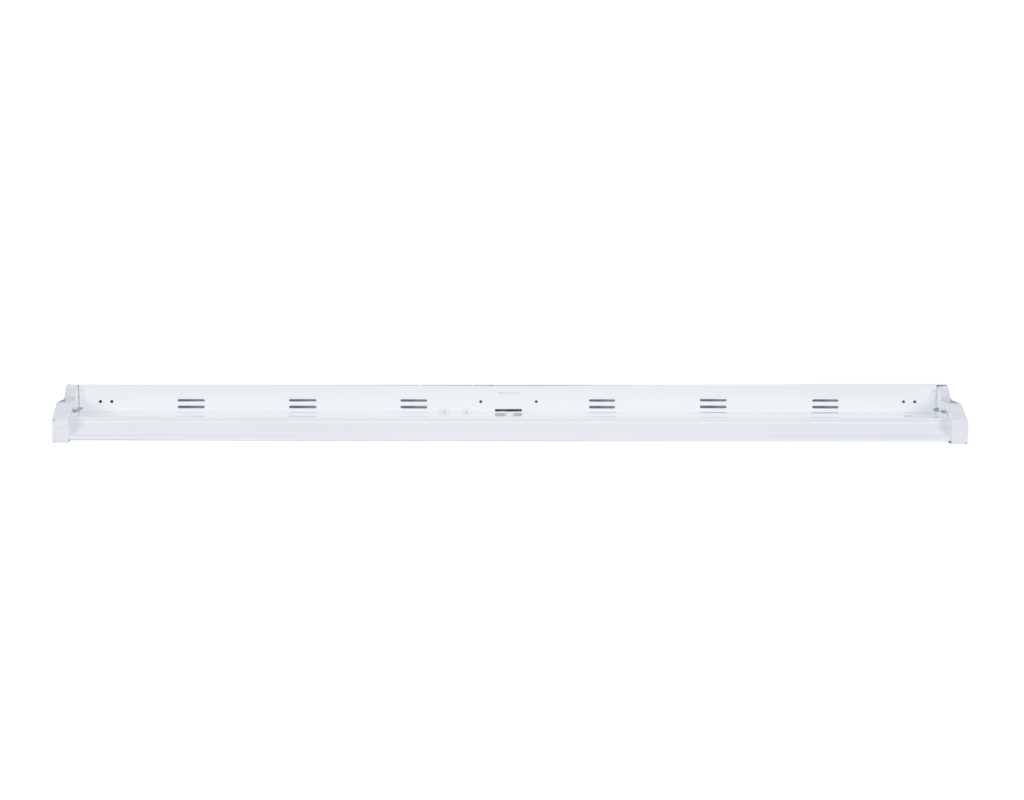

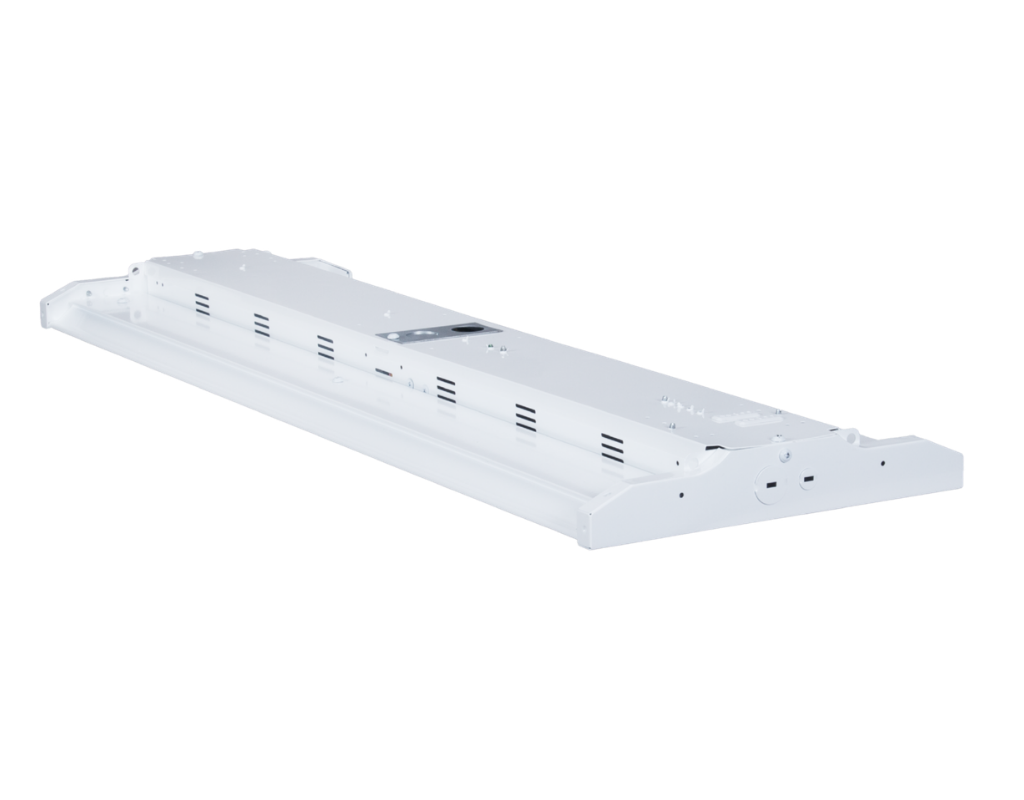

LINEAR HIGH BAY – PRIME SERIES – AUX READY 3FT – 200W/230W/270W – 120-277V – 4000K/5000K – DLC 6.0P
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-LHB-3FT/270/230/200-CCT-HV
- Linear Highbay
- Selectable CCT
- Commercial Lighting
- The AL-LHB-3FT is an energy-efficient fixture. Built for commercial and industrial environments, this fixture offers adjustable wattage with high lumen output and customized light output and color temperature at the time of installation.
Selectable Wattage:
Lumens Output
Selectable CCT
Wide input voltage:
Lighting controls
DLC
Dimensions
Efficiency
Warranty
-
270W / 230W / 200W
40500/34500/30000
4000K / 5000K
277-480V
12 V, 3.5 mm AUX port
6.0 Premium listed
31.1*10.2*1.8
Long lifespan
5-year
-
Selectable Wattage:
270W / 230W / 200W
Lumens Output
40500/34500/30000
Selectable CCT
4000K / 5000K
Wide input voltage:
277-480V
Lighting controls
12 V, 3.5 mm AUX port
DLC
6.0 Premium listed
Dimensions
31.1*10.2*1.8
Efficiency
Long lifespan
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Selectable Wattage:
270W / 230W / 200W
Lumens Output
40500/34500/30000
Selectable CCT
4000K / 5000K
Wide input voltage:
Wide input voltage:
Lighting controls
12 V, 3.5 mm AUX port
DLC
6.0 Premium listed
Dimensions
31.1*10.2*1.8
Efficiency
Long lifespan
Warranty
5-year
-
-
+
Construction
The fixture has a strong sheet-metal body with a white finish for durability and long life. It includes a high-quality polycarbonate (PC) lens designed to reduce glare and provide clear, comfortable lighting.
+
Electrical
A 277-480V universal input, along with a strong 10 kV surge protection feature, provides reliable and efficient performance. A power factor of ≥0.9 is best for energy saving.
+

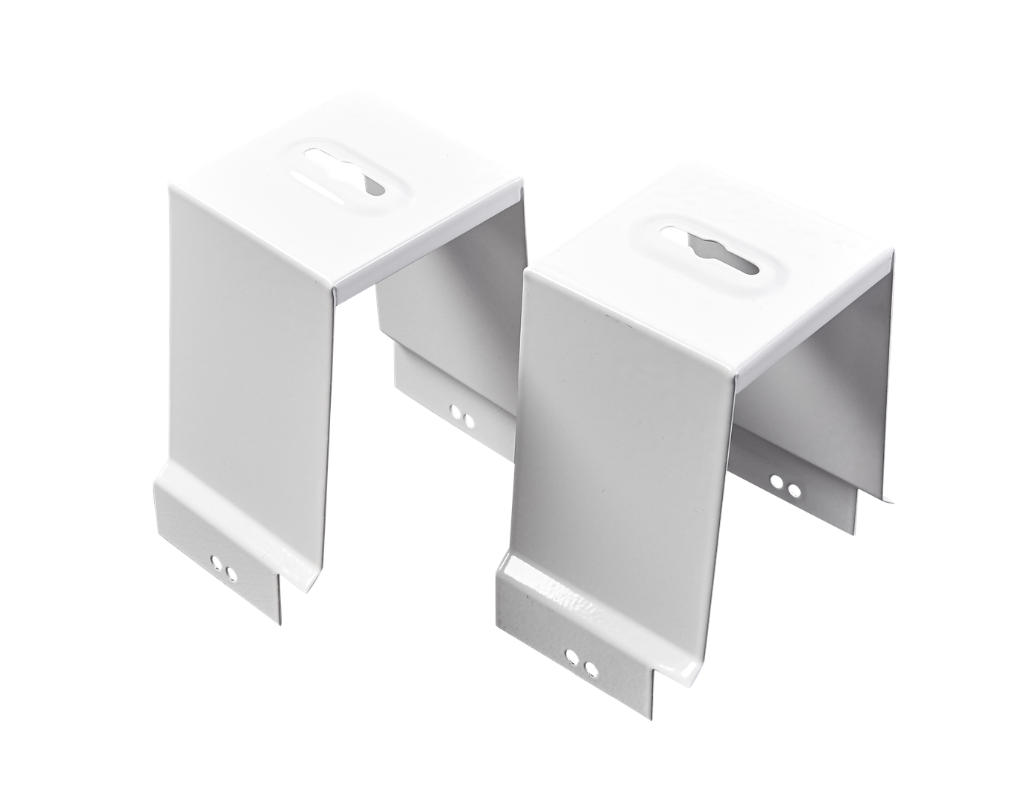

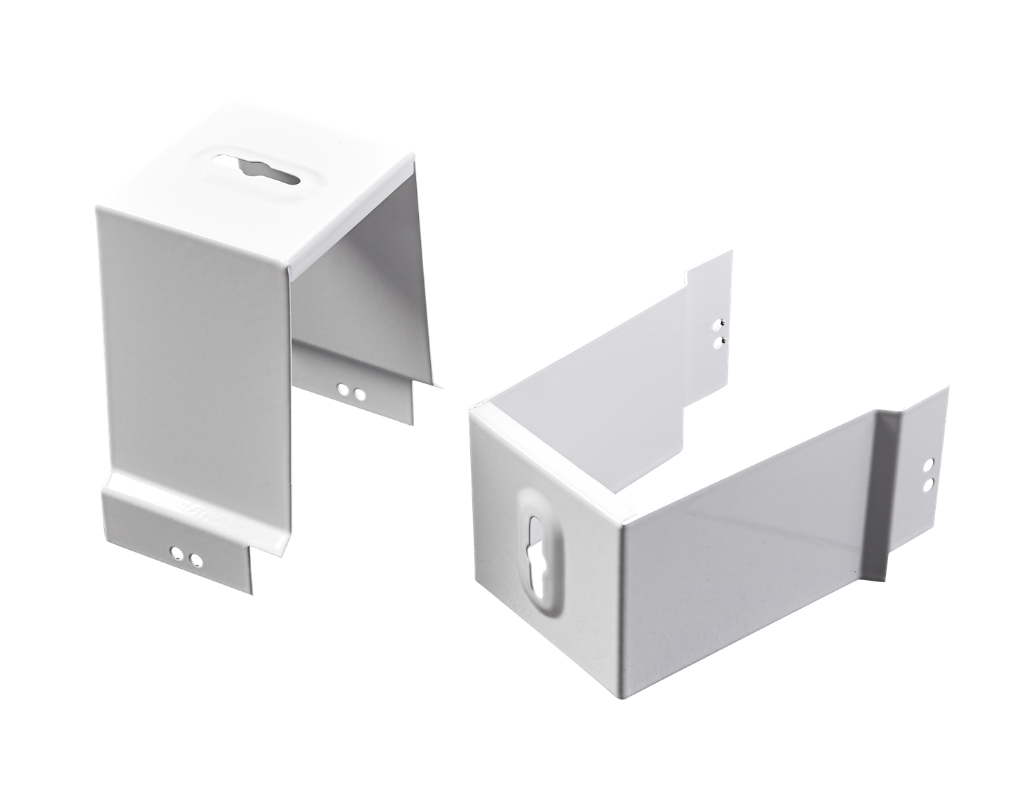

Mounting
This fixture comes with a suspended (using a V-hook and chain), as well as optional aircraft cable, pendant, and surface mounting for flexible installation.
+
Optical
For a clear and uniform illumination, a 90° beam distribution is generated.
+
Dimming & Control
A 0–10V dimming option is provided for adjustable light controls and energy saving. For easy plug-and-play integration of sensors, a 12 V and 3.5 mm AUX port, which facilitates
+
Environment
This smart fixture beautifully serves the purpose of operating reliably in damp locations and temperatures ranging from -40°C (-40°F) to 50°C (122°F).
+
Certification
This product holds RoHS compliance, which means it meets restrictions on hazardous substances. The DLC Premium certificate and UL Listed feature ensure that it has been tested for energy efficiency and safety.
+
Warranty
A product warranty of 5 years is available.
AL-LHB-3FT/270/230/200-CCT-HV
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-LHB-3FT/270/230/200-CCT-HV | 3FT | 277-480 | 270 | 4000/5000 | 40500 | 150 | 50000 Hours |
| 230 | 4000/5000 | 34425 | |||||
| 200 | 4000/5000 | 30000 |
