LINEAR HIGH BAY – PRO SELECT SERIES – AUX READY 2FT – 155W – 120-277V – 5000K – DLC 6.0P
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-LHB-2FT/155-50
- Linear Highbay
- Selectable CCT
- Commercial Lighting
- Built for demanding commercial and industrial environments, this unit combines 155W with high lumen output and long-lasting performance.
- This very smartly designed high bay fixture offers easy handling while maximizing application flexibility and energy saving.
Selectable Wattage:
Lumens Output
Selectable CCT
Wide input voltage:
Sensor-ready
DLC
Dimensions:
Mounting
Efficiency
Warranty
155W
23250
5000K
120-277
Z10 AUX
6.0 Premium listed

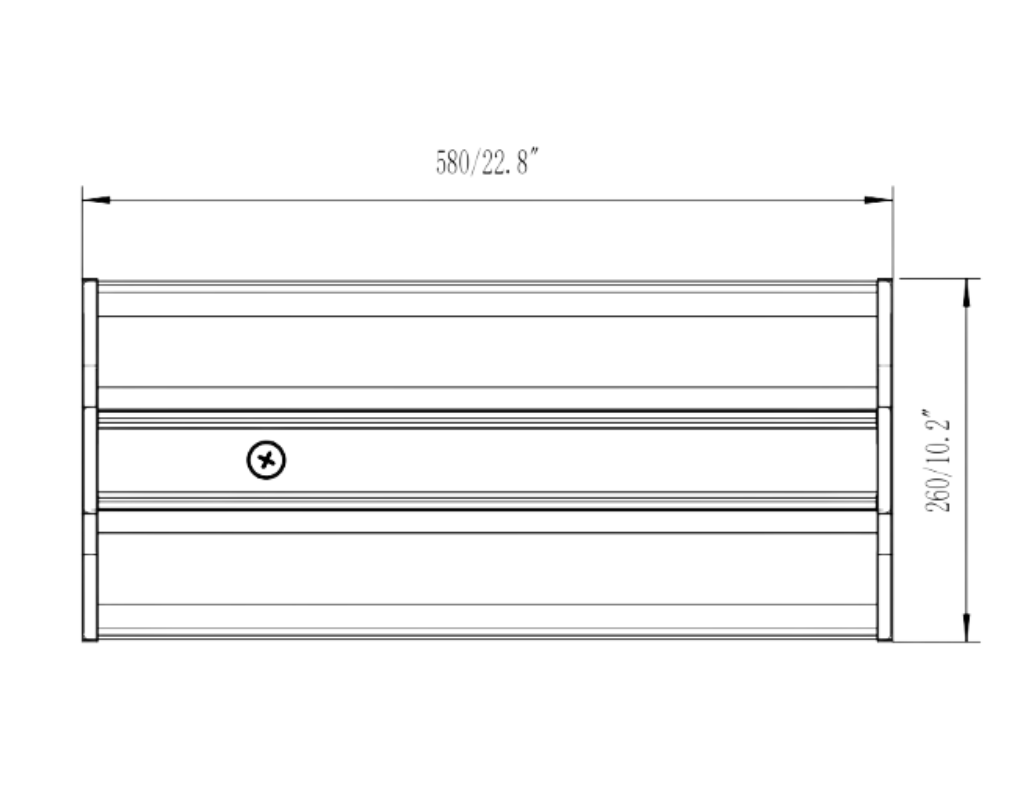

22.8*10.2*1.8
V-hook & chain
Long lifespan
5-year
Selectable Wattage:
155W
Lumens Output
23250
Selectable CCT
5000K
Wide input voltage:
120-277
Sensor-ready
Z10 AUX
DLC
6.0 Premium listed
Dimensions:
22.8*10.2*1.8
Mounting
V-hook & chain
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Selectable Wattage:
155W
Lumens Output
23250
Selectable CCT
5000K
Wide input voltage:
Wide input voltage:
Sensor-ready
Z10 AUX
DLC
6.0 Premium listed
Dimensions:
22.8*10.2*1.8
Mounting
V-hook & chain
Efficiency
Long lifespan
Warranty
5-year
+
Construction
A durable sheet metal stamped housing with a white finish is used in its manufacturing. A high-quality polycarbonate (PC) optical glare-control lens makes it more adaptable.
+
Electrical
Its universal input voltage range of 120-277V and 6 kV surge protection make it suitable for various commercial and industrial applications. The unit keeps a power factor of ≥0.9 to ensure optimal energy performance.
+
Mounting

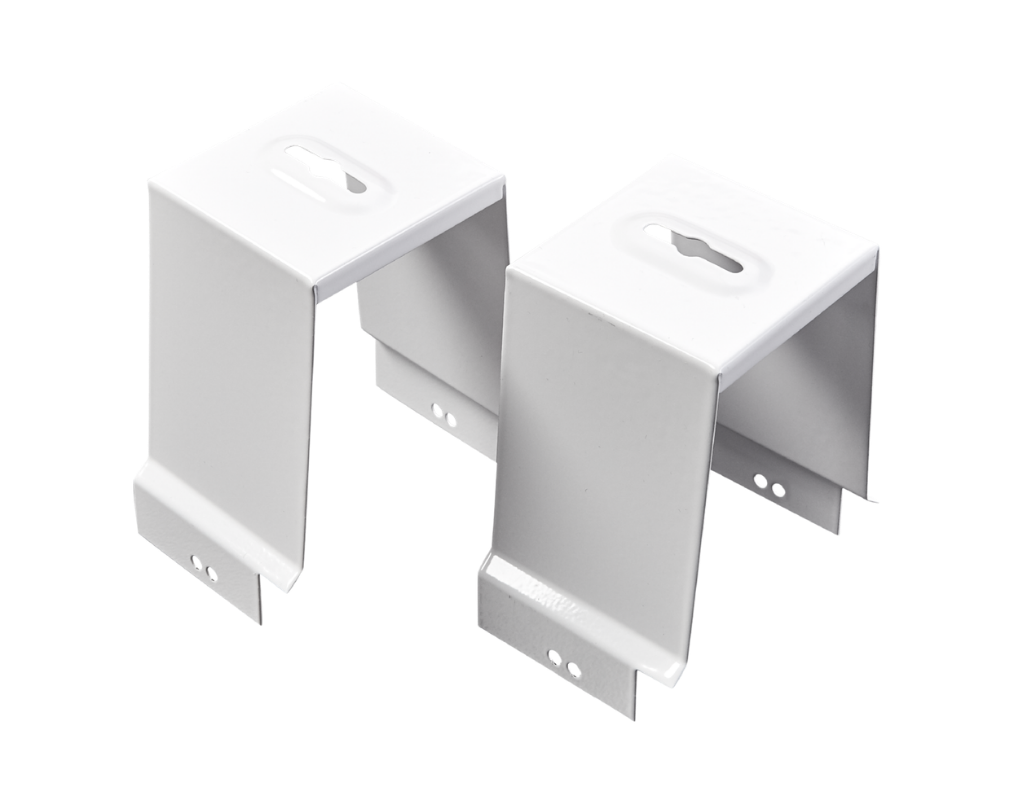

This unit is designed for suspended installation, utilizing a V-hook and chain for support. Optional mounting options comprise aircraft cable suspension, pendant mount, and a surface mount to suit various installation requirements.
+
Optical
A 90° beam distribution produces a focused, uniform illumination ideal for high-ceiling applications.
+
Dimming & Control
It is equipped with 0-10 V dimming for adjustable light levels, and control strategies aid in achieving energy-saving goals. A Z10 AUX receptacle is provided for easy plug-and-play sensor integration.
+
Environment
This fixture is UL rated for damp locations and operates reliably in temperatures ranging from -40°C (-40°F) to 50°C (122°F).
+
Certification
This smart product is UL Listed along with RoHS compliance for environmental responsibility, and DLC Premium is qualified for energy efficiency and rebate eligibility.
+
Warranty
A limited warranty of 5 years is given.
AL-LHB-2FT/155-50
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-LHB-2FT/155-50 | 2FT | 120-277 | 155 | 5000 | 20500 | 150 | 50000 Hours |
