FlexiCore Compact Series Linear LED High Bay – Selectable 135W / 115W / 100W, 120–277V, 4000K / 5000K CCT, AUX Control Ready
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-LHB-1.5FT135115100-CCT
- Linear Highbay
- Selectable CCT
- Commercial Lighting
- The AL-LHB-1.5FT/135/115/100-CCT, a compact 1.5-foot linear high bay fixture, is ideal for demanding commercial and industrial environments.
- This smart high bay (16.5*10.2*1.8) offers selectable wattages and adjustable color temperatures.
- Delivering 20500/17500/15000 lumens, it operates on 120-277. A 3.5 mm AUX port is for control compatibility.
Selectable Wattage:
Lumens Output
Selectable CCT
Wide input voltage:
Lighting controls
DLC
Fixture Design:
Mounting
Efficiency
Warranty
135W / 115W / 100W
20500/17500/15000
4000K/5000K
120-277
3.5 mm AUX port
6.0 Premium listed
Compact, linear design
V-hook & chain
Long lifespan
5-year
Selectable Wattage:
135W / 115W / 100W
Lumens Output
20500/17500/15000
Selectable CCT
4000K/5000K
Wide input voltage:
120-277
Lighting controls
3.5 mm AUX port
DLC
6.0 Premium listed
Fixture Design:
Compact, linear design
Mounting
V-hook & chain
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Selectable Wattage:
135W / 115W / 100W
Lumens Output
20500/17500/15000
Selectable CCT
4000K/5000K
Wide input voltage:
Wide input voltage:
Lighting controls
3.5 mm AUX port
DLC
6.0 Premium listed
Fixture Design:
Compact, linear design
Mounting
V-hook & chain
Efficiency
Long lifespan
Warranty
5-year
+
Construction

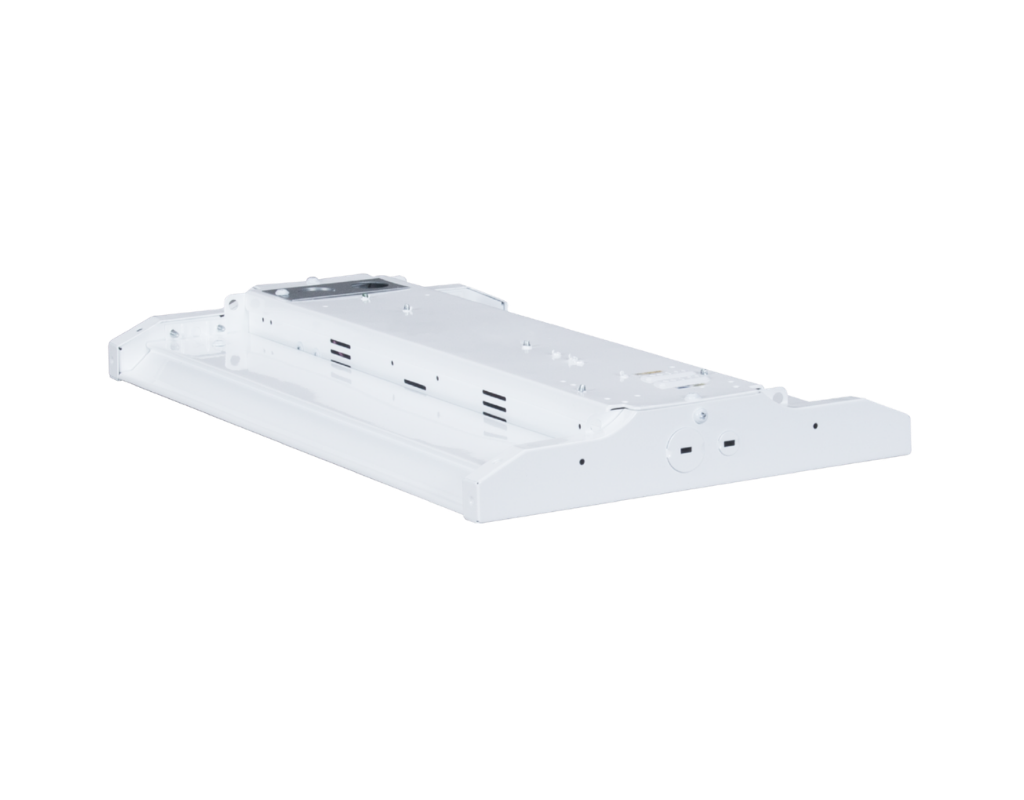

The fixture is made up of a durable sheet metal stamped housing with a white finish. For structural strength and long-term reliability, it is equipped with a high-quality polycarbonate (PC) optical glare-control lens. This fine-quality lens produces a uniform, low glare.
+
Electrical
A universal input voltage range of 120-277 is considered best for commercial and industrial use. 6 kV surge protection safeguards against power fluctuations. For optimal energy performance, the unit maintains a power factor of ≥0.9.
+
Mounting

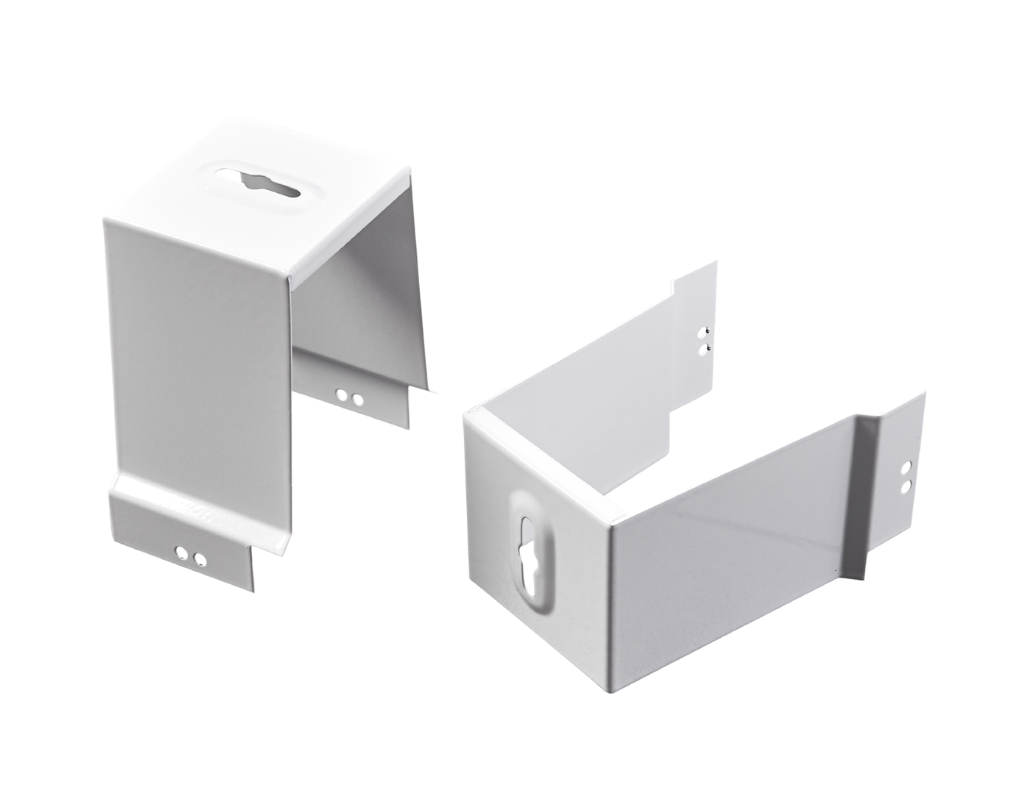

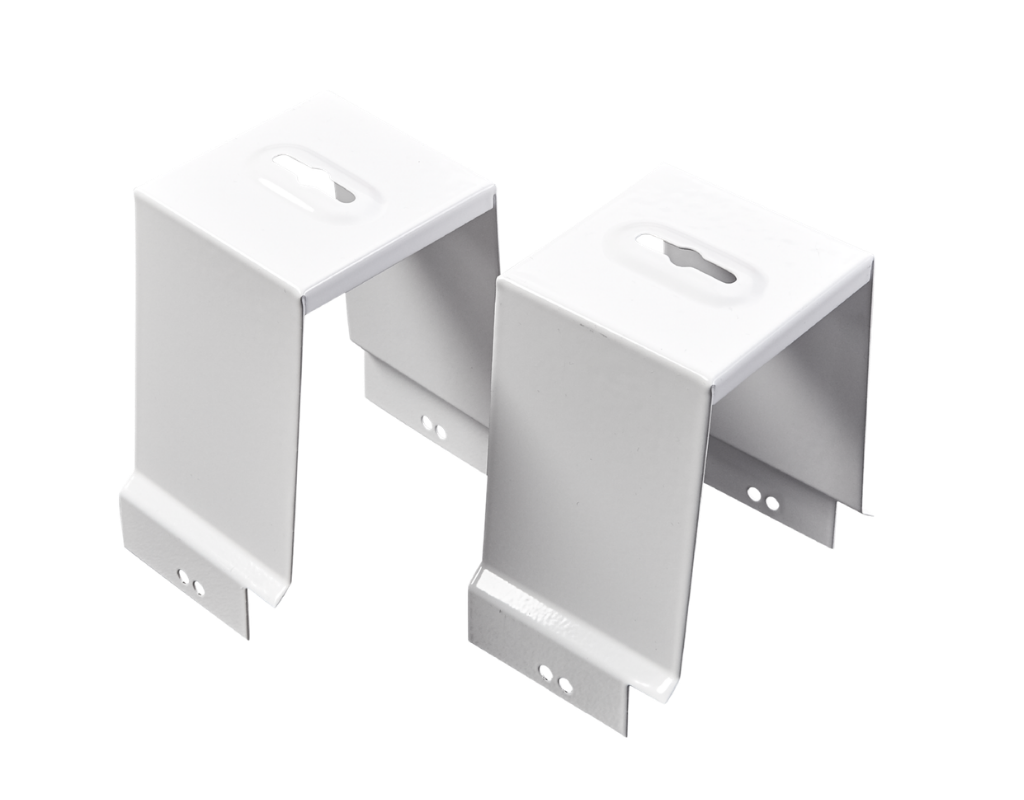

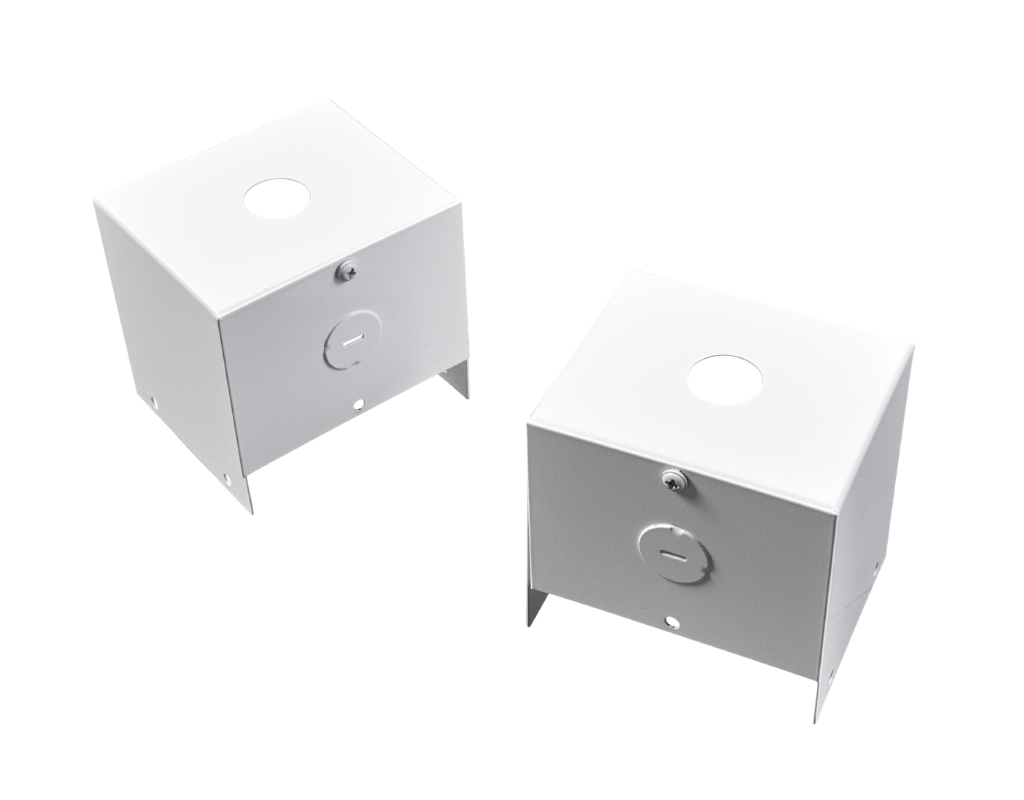

This fixture is designed for suspended installation. Along with the V-hook and chain, optional mounting packages include aircraft cable suspension, pendant mount, and a surface mount.
+
Optical
A 90° beam distribution produces a focused illumination. This uniform pattern is ideal for high-ceiling applications.
+
Dimming & Control
Their adjustable control strategies and 0-10 V dimming options help in energy saving. A 3.5 mm AUX audio jack receptacle is also included for sensor integration.
+
Environment
This fixture is UL rated for damp locations. It works quite well in temperatures ranging from -40°C (-40°F) to 50°C (122°F).
+
Certification
This smart product is UL Listed. RoHS compliance assures environmental safety. DLC premium qualified features make it energy efficient and rebate eligible.
+
Warranty
This product has a 5-year limited warranty for long-term performance.
AL-LHB-1.5FT135115100-CCT
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-LHB-1.5FT/135/115/100-CCT | 1.5FT | 120-277 | 135 | 4000/5000 | 20500 | 152 | 50000 Hours |
| 115 | 4000/5000 | 17500 | |||||
| 100 | 4000/5000 | 15000 |
