QUICK INFO
Applications:
TECHNICAL SPECS
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 - 60Hz rating
120-480V option available, 6kV surge protection,
Power Factor: ≥0.9 for stable performance
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V
AUX integrated driver ranges from 0.1V to 0.5V
Flicker-free 0-10V dimming capability, down to 10%
Total Harmonic Distortion: <20%
Construction
Suitable for wet location applications
Compatible with surface/wall mounting
Standard frosted polycarbonate lens diffuser
High durability polycarbonate with Stainless steel latches
Long-lasting powder coated finish with high durability
Performance
Suitable for wet locations Suitable for
installation in insulated ceilings (IC Rated) when
input power 100/115/135/155/185/200W
3CCT Field Adjustable: 3500K, 4000K, 5000K
Accurate colors: CRI≥80 Flicker-free 0-10V dimming capability, down to 10%
Operating temp range -40°F to 122°F (-40°C to 50°C)
Long-life, high-efficacy, micro-power leds
Lumen Maintenance, L70 > 100,000 hours Power
Factor: ≥0.9 for stable performance
Total Harmonic Distortion: <20%
Certifications & Regulatory
UL Listed for Wet Location
DLC 6.0 P
Warranty
5 Year Limited Warranty (see complete warranty terms for details)
Testing
IESNA LM-79 & IESNA LM-80 tested by 3rd-party laboratory
KEY FEATURES

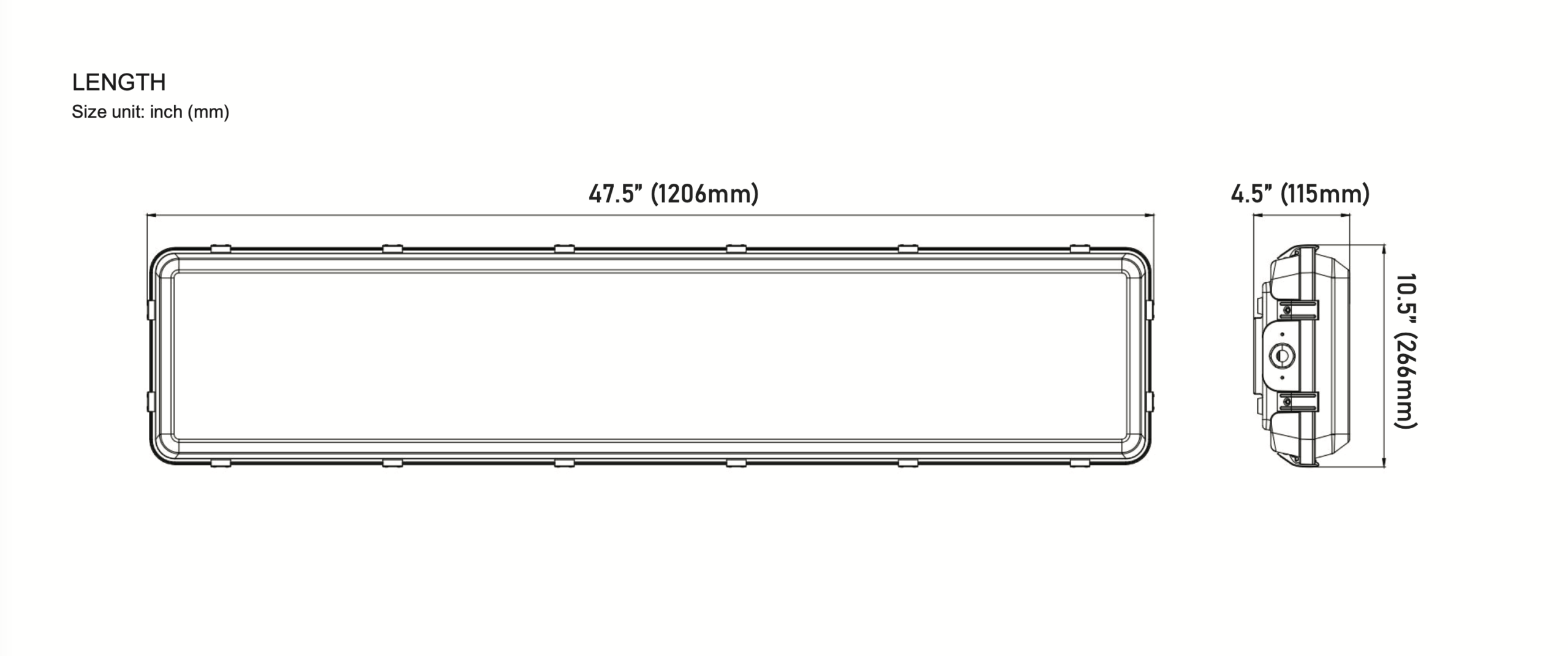

LINE DRAWING
Mounting
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|---|---|---|---|---|---|
| AL-LWP-4FTHB/200/185/155-CCT | 4FT | 200/185/155W | 3500/4000/5000K | 32000/30000/25000 | 160 | 80 |
| AL-LWP-4FTHB/135/115/100-CCT | 135/115/100W | 22000/19000/16000 |
CONTROLS & SENSORS
ACCESSORIES
COMPLIANCE
Logistics
Packaging
| PACKAGING CONFIGURATION | MASTER CARTON DIMENSIONS | MASTER CARTON WEIGHT | STANDARD PALLET QUANTITY | STANDARD PALLET WEIGHT | STANDARD PALLET DIMENSION |
|---|---|---|---|---|---|
| AL-LWP-4FTHB/200/185/155-CCT | 48.11" L x 10.75" W x 4.69" H | 14.30 | 70 | 1050 | 48" x 48" x 75" |
| AL-LWP-4FTHB/135/115/100-CCT | 48.11" L x 10.75" W x 4.69" H | 14.3 | 70 | 1050 | 48" x 48" x 75" |

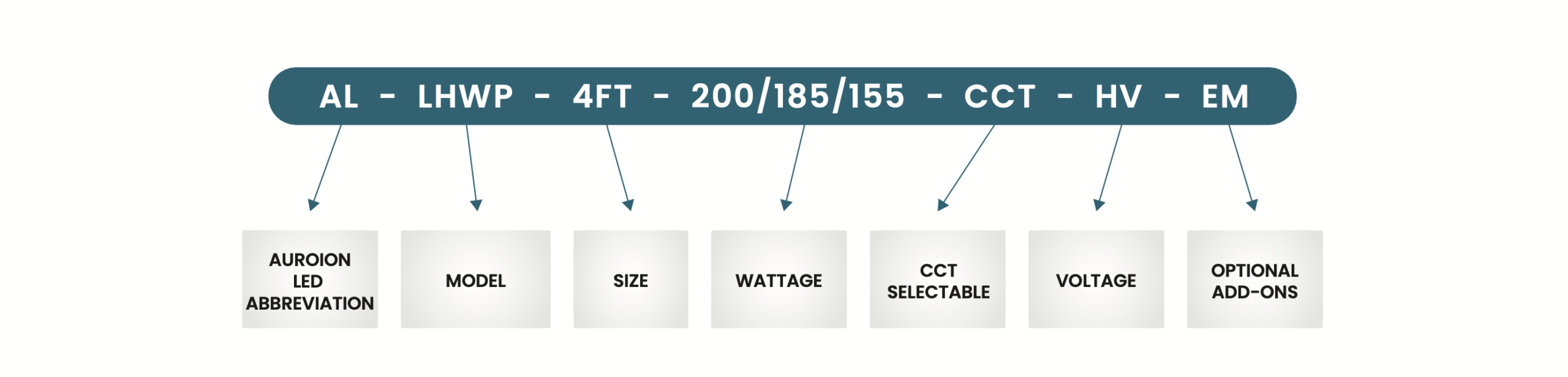

ORDERING MATRIX
ORDERING INFORMATION: AL-LWP-4FTHB
| MODEL | SIZE | WATTAGE | VOLTAGE | CCT | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-LWP-4FTHB = VAPOR TIGHT LED LINEAR HIGHBAY | 4FT | 200/185/155W | [BLANK] = 120–277V | CCT = 3500K, 4000K, 5000K | EM = BATTERY BACKUP | WH = WHITE |
| AL-LWP-4FTHB = VAPOR TIGHT LED LINEAR HIGHBAY | 4FT | 135/115/100W | HV = 277-480V | PIR = BI- LEVEL MOTION SENSOR | BL = BLACK |
ACCESSORIES (SHIPPED SEPARATELY)
| MODEL | SKU NUMBER | PRODUCT DESCRIPTION |
|---|---|---|
| AL-LWP | AL-EM-B-15-LV | 15W YH EM Battery Back for Vapor Tight Highbay Fixture, 120-347V |
