QUICK INFO
Applications:
TECHNICAL SPECS
TECHNICAL SPECS
Electrical
Input Voltage: 5V DC Solar Panel, 50 - 60Hz rating
6kV surge protection
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V
AUX integrated driver ranges from 0.1V to 0.5V
Construction
Aluminum die cast housing,
Mono-crystalline silicon solar panel
Polycarbonate frosted lens
Highly durable black finish
Performance
Suitable for wet locations Suitable for
installation in when input power 23/80W
CCT: 5000K
Accurate colors: CRI≥80 Flicker-free 0-10V dimming capability, down to 10%
Operating temp range -40°F to 122°F (-40°C to 50°C)
Long-life, high-efficacy, micro-power leds
Lumen Maintenance, L70 > 100,000 hours Power
Factor: ≥0.9 for stable performance
Total Harmonic Distortion: < 20%
Certifications & Regulatory
UL Listed for Wet Location
Warranty
5 Year Limited Warranty (see complete warranty terms for details)
Testing
IESNA LM-79 & IESNA LM-80 tested by 3rd-party laboratory
KEY FEATURES

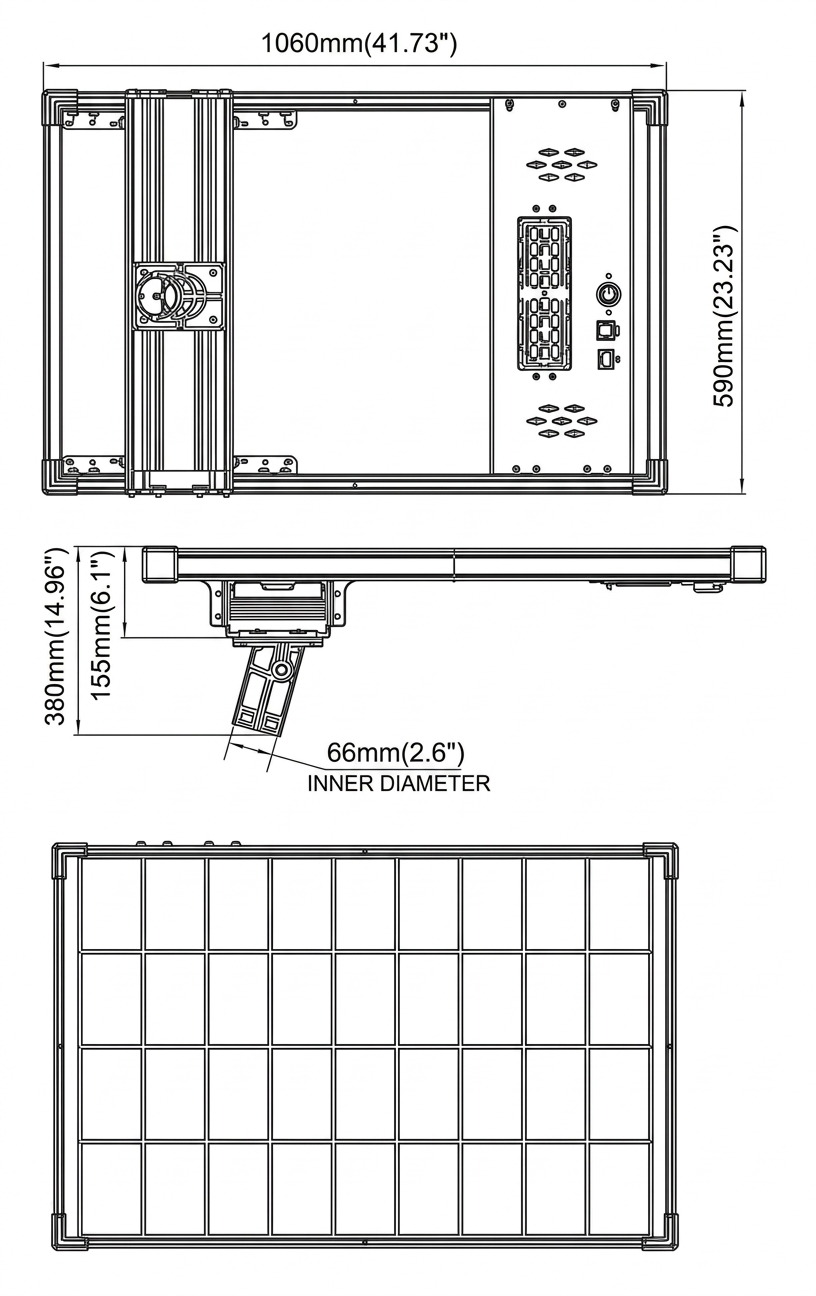

LINE DRAWING
Mounting
performance
| PART # | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|---|---|---|---|---|
| AL-SSL-23-50K-BZ | 23W | 5000K | 2660 | 116 | 70 |
| AL-SSL-50-50K-BZ | 50W | 7566 | 151 | ||
| AL-SSL-80-50K-BZ | 80W | 15694 | 196 |
CONTROLS & SENSORS
ACCESSORIES
Documents & Download
SPECS SHEET
120-277V INSTALLATION GUIDE
IES
COMPLIANCE
Logistics
Packaging
| PACKAGING CONFIGURATION | MASTER CARTON DIMENSIONS | MASTER CARTON WEIGHT | STANDARD PALLET QUANTITY | STANDARD PALLET WEIGHT | STANDARD PALLET DIMENSION |
|---|---|---|---|---|---|
| AL-SSL-23-50K-BZ | 33.07" L x 20.87" W x 13.78" H | 33.88 | 13 | 500 | 48" x 48" x 75" |
| AL-SSL-50-50K-BZ | 44.88" L x 26.38" W x 9.45" H | 44.1 | 11 | 540 | 48" x 48" x 75" |
| AL-SSL-80-50K-BZ | 63" L x 34" W x 10" H | 88.2 | 6 | 580 | 48" x 48" x 75" |
ORDERING MATRIX
ORDERING INFORMATION: AL-SSL
| MODEL | WATTAGE | CCT | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|
| AL-SSL = SOLAR GLOW SOLAR LED STREET LIGHTS | 23W | CCT = 5000K | PIR = BI- LEVEL MOTION SENSOR | BZ= Bronze |
| AL-SSL = SOLAR GLOW SOLAR LED STREET LIGHTS | 50W | CCT = 5000K | ||
| AL-SSL = SOLAR GLOW SOLAR LED STREET LIGHTS | 80W | CCT = 5000K |
ACCESSORIES (SHIPPED SEPARATELY)
| MODEL | SKU NUMBER | PRODUCT DESCRIPTION |
|---|---|---|
| AL-SSL | AL-SSL-SPMST-80-FB-B | 80W All-in-One LED Solar Module Street Light Fixed Bracket |
| AL-SSL | AL-SSL-SPMST-50-FB-B | 50W All-in-One LED Solar Module Street Light Fixed Bracket |
