QUICK INFO
Applications:
TECHNICAL SPECS
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 - 60Hz rating
6kV surge protection,
Power Factor: ≥0.9 for stable performance
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V
AUX integrated driver ranges from 0.1V to 0.5V
Flicker-free 0-10V dimming capability, down to 10%
Total Harmonic Distortion: <20%
Construction
Suitable for damp location applications
Compatible with most of the linear fixtures
Standard frosted polycarbonate lens diffuser
Retrofit kit with brackets and screws
Stamped sheet-metal housing
Chain or cable suspending mount with brackets
Long-lasting powder coated finish with high durability
Performance
Suitable for damp locations Suitable for
installation in insulated ceilings (IC Rated) when
input power 40/30/22/75/60/45W
4CCT Field Adjustable: 3500K, 4000K, 5000K
Accurate colors: CRI≥80 Flicker-free 0-10V dimming capability, down to 10%
Operating temp range -40°F to 122°F (-40°C to 50°C)
Long-life, high-efficacy, micro-power leds
Lumen Maintenance, L70 > 100,000 hours Power
Factor: ≥0.9 for stable performance
Total Harmonic Distortion: <20%
Certifications & Regulatory
UL Listed for Damp Location
DLC 6.0S
Warranty
5 Year Limited Warranty (see complete warranty terms for details)
Testing
IESNA LM-79 & IESNA LM-80 tested by 3rd-party laboratory
KEY FEATURES

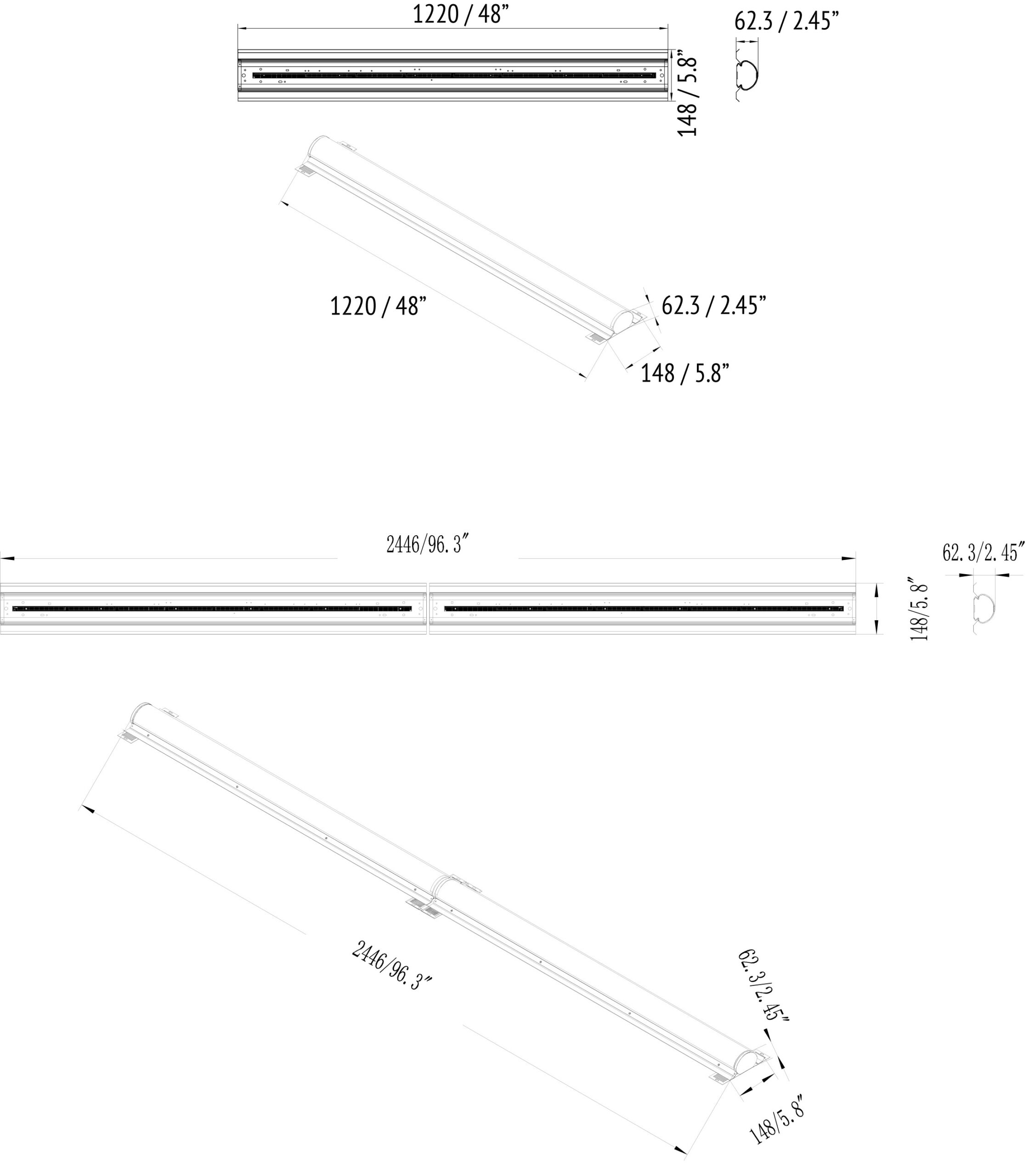

LINE DRAWING
Mounting
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|---|---|---|---|---|---|
| AL-LNSRK-4FT/40/30/22-CCT | 4FT | 40/30/22W | 3500/4000/5000K | 5200/3960/2900 | 130 | 80 |
| AL-LNSRK-8FT/75/60/45-CCT | 8FT | 75/60/45W | 3500/4000/5000K | 9900/7920/5940 | 130 | 80 |
CONTROLS & SENSORS
ACCESSORIES
Documents & Download
SPECS SHEET
INSTALLATION GUIDE
IES
COMPLIANCE
Logistics
Packaging
| PACKAGING CONFIGURATION | MASTER CARTON DIMENSIONS | MASTER CARTON WEIGHT | STANDARD PALLET QUANTITY | STANDARD PALLET WEIGHT | STANDARD PALLET DIMENSION |
|---|---|---|---|---|---|
| AL-LNSRK-4FT/40/30/22-CCT | 50.39" L x 7.4" W x 6.26" H | 35.4 | 396 | 2390 | 48" x 48" x 75" |
| AL-LNSRK-8FT/75/60/45-CCT | 50.39" L x 7.4" W x 6.26" H | 40.2 | 264 | 2700 | 48" x 48" x 75" |
ORDERING MATRIX
ORDERING INFORMATION: AL-LNS-B
| MODEL | SIZE | WATTAGE | VOLTAGE | CCT | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-LNSRK = UNIFORM LED STRIP RETROFIT KIT | 4FT | 45/30/22W | [BLANK] = 120–277V | CCT = 3500K, 4000K, 5000K | EM = BATTERY BACKUP | WH = WHITE |
| AL-LNSRK = UNIFORM LED STRIP RETROFIT KIT | 8FT | 75/60/45W | HV = 277-480V | WH = WHITE |
