QUICK INFO
Applications:
TECHNICAL SPECS
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 - 60Hz rating
120-480V option available, 6kV surge protection,
Power Factor: ≥0.9 for stable performance
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V
AUX integrated driver ranges from 0.1V to 0.5V
Flicker-free 0-10V dimming capability, down to 10%
Total Harmonic Distortion: <20%
Construction
Suitable for damp location applications
Compatible with surface/wall mounting
Standard frosted polycarbonate lens diffuser
Surface mount (wall, ceiling) with brackets and screws
Stamped sheet-metal housing
Chain or cable suspending mount with brackets and V-hooks
Long-lasting powder coated finish with high durability
Performance
Suitable for damp locations Suitable for
installation in insulated ceilings (IC Rated) when
input power 34/38/45/65/75/90W
3CCT Field Adjustable: 3000K (3500K - 4 FT), 4000K, 5000K
Accurate colors: CRI≥80 Flicker-free 0-10V dimming capability, down to 10%
Operating temp range -40°F to 122°F (-40°C to 50°C)
Long-life, high-efficacy, micro-power leds
Lumen Maintenance, L70 > 100,000 hours Power
Factor: ≥0.9 for stable performance
Total Harmonic Distortion: <20%
Certifications & Regulatory
UL Listed for Damp Location
DLC 5.1 P
Warranty
5 Year Limited Warranty (see complete warranty terms for details)
Testing
IESNA LM-79 & IESNA LM-80 tested by 3rd-party laboratory
KEY FEATURES

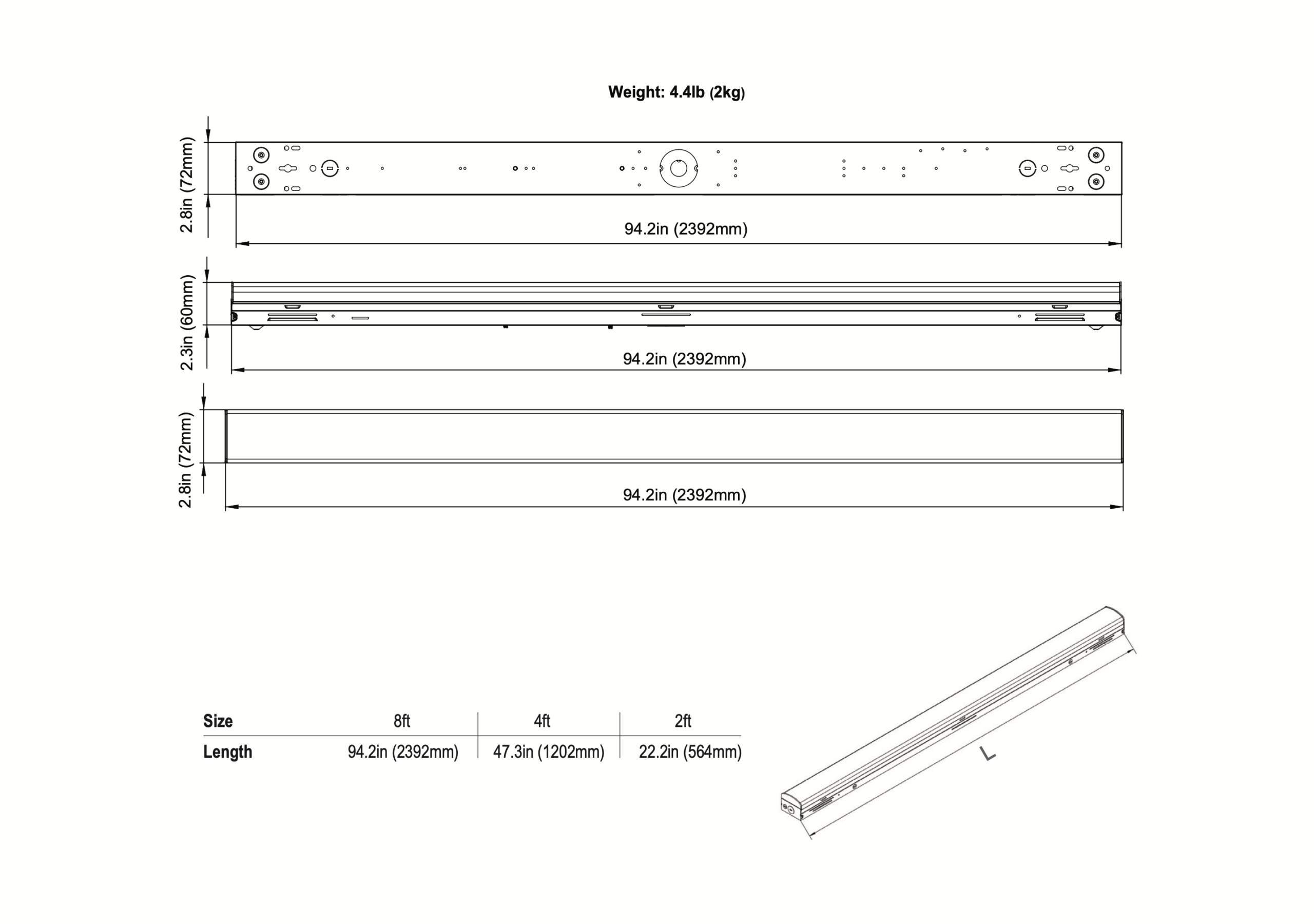

LINE DRAWING
Mounting
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|---|---|---|---|---|---|
| AL-LNS-A-8FT/90/75/65-CCT | 8FT | 90/75/65W | 3000/4000/5000K | 11700/9750/8450 | 130 | 80 |
| AL-LNS-A-4FT/45/38/34-CCT | 4FT | 45/38/34W | 3500/4000/5000K | 5850/4940/4420 |
CONTROLS & SENSORS
ACCESSORIES
COMPLIANCE
Logistics
Packaging
| PACKAGING CONFIGURATION | MASTER CARTON DIMENSIONS | MASTER CARTON WEIGHT | STANDARD PALLET QUANTITY | STANDARD PALLET WEIGHT | STANDARD PALLET DIMENSION |
|---|---|---|---|---|---|
| AL-LNS-A-8FT/90/75/65-CCT | 95.87" L x 6.69" W x 6.50" H | 41.01 | 240 | 2510 | 96" x 42" x 75" |
| AL-LNS-A-4FT/45/38/34-CCT | 48.54" L x 10" W x 6.10" H | 32.08 | 330 | 1820 | 48" x 48" x 75" |

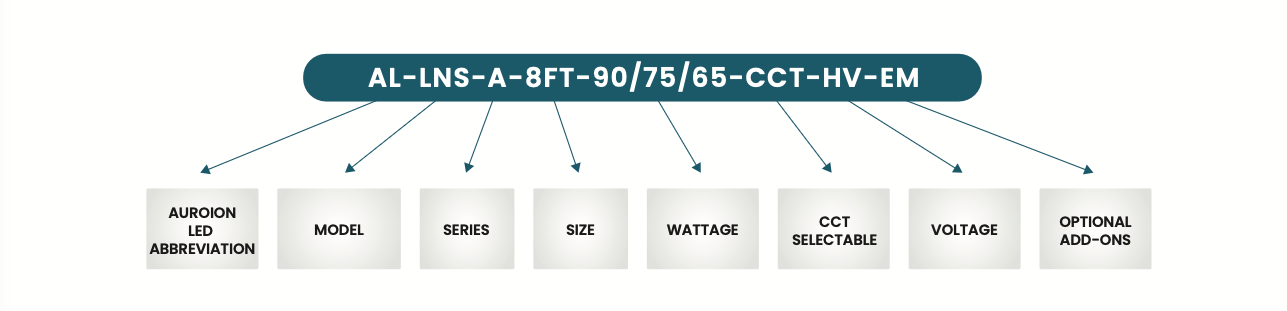

ORDERING MATRIX
ORDERING INFORMATION: AL-LNS-A
| MODEL | SIZE | WATTAGE | VOLTAGE | CCT | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-LNS-A = LINEAR STRIP FIXTURE | 8FT | 90/75/65W | [BLANK] = 120–277V | CCT = 3500K, 4000K, 5000K | EM = BATTERY BACKUP | WH = WHITE |
| AL-LNS-A = LINEAR STRIP FIXTURE | 4FT | 45/38/34W | HV = 277-480V | CCT = 3000K, 4000K, 5000K | PIR = BI- LEVEL MOTION SENSOR |
ACCESSORIES (SHIPPED SEPARATELY)
| MODEL | SKU NUMBER | PRODUCT DESCRIPTION |
|---|---|---|
| AL-LNS-A | AL-LNS-B-PT-CB | Connecting Bracket |
| AL-LNS-A | AL-LNS-B-PT-SMK | Surface Mount Kit |
| AL-LNS-A | AL-LNS-B-PT-CBK | Corner Bracket Kit |
| AL-LNS-A | AL-LNS-B-PT-ACW-4FT | AC Wire-4FT |
| AL-LNS-A | AL-LNS-B-PT-ACW-8FT | AC Wire-8FT |
| AL-LNS-A | AL-LNS-B-PT-CSMK-10FT | Cable Suspending Mounting Kit (10FT Aircraft Kit) |
| AL-LNS-A | AL-LNS-B-PT-WG-4FT | Wireguard for AL-LNS-B-4FT |
| AL-LNS-A | AL-LNS-B-PT-WG-8FT | Wireguard for AL-LNS-B-8FT |
| AL-LNS-A | AL-LNS-B-PT-VHC | V-hook & Chain |
| AL-LNS-A | AL-EM-A-8-LV | 8W YH EM Battery Backup 100-277V |
