QUICK INFO
Applications:
TECHNICAL SPECS
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 - 60Hz rating
6kV surge protection, Power Factor: ≥0.9 for stable performance
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V
AUX integrated driver ranges from 0.1V to 0.5V
Flicker-free 0-10V dimming capability, down to 10%
Total Harmonic Distortion: <20%
Construction
Suitable for damp location applications
Compatible with surface/wall mounting
Standard frosted polycarbonate lens diffuser
Surface mount (wall, ceiling) with brackets and screws
Stamped sheet-metal housing
Chain or cable suspending mount with brackets and V-hooks
Long-lasting powder coated finish with high durability
Performance
Suitable for damp locations Suitable for
installation in insulated ceilings (IC Rated) when
input power 13/17/21/26/34/40W
5CCT Field Adjustable: 2700K, 3000K, 3500K, 4000K, 5000K
Accurate colors: CRI≥80 Flicker-free 0-10V dimming capability, down to 10%
Operating temp range -40°F to 122°F (-40°C to 50°C)
Long-life, high-efficacy, micro-power leds
Lumen Maintenance, L70 > 100,000 hours Power
Factor: ≥0.9 for stable performance
Total Harmonic Distortion: <20%
Certifications & Regulatory
UL Listed for Damp Location
DLC 6.0 S
Warranty
5 Year Limited Warranty (see complete warranty terms for details)
Testing
IESNA LM-79 & IESNA LM-80 tested by 3rd-party laboratory
KEY FEATURES
LINE DRAWING
Mounting
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|---|---|---|---|---|---|
| AL-STL-A-2FT/26/21/17/13-CCT | 2FT | 26/21/17/13 | 2700/3000/3500/4000/5000K | 3900/3150/2550/1950 | 150 | 80 |
| AL-STL-A-4FT/40/34/26/21-CCT | 4FT | 40/34/26/21 | 6000/5100/3900/3150 |
CONTROLS & SENSORS
ACCESSORIES
Documents & Download
SPECS SHEET
INSTALLATION GUIDE
IES
COMPLIANCE
Logistics
Packaging
| PACKAGING CONFIGURATION | MASTER CARTON DIMENSIONS | MASTER CARTON WEIGHT | STANDARD PALLET QUANTITY | STANDARD PALLET WEIGHT | STANDARD PALLET DIMENSION |
|---|---|---|---|---|---|
| AL-STL-A-2FT/26/21/17/13-CCT | 25.12" L x 11.34" W x 12.32" H | 24.09 | 192 | 1200 | 48" x 48" x 75" |
| AL-STL-A-4FT/40/34/26/21-CCT | 48.58" L x 11.34" W x 12.32" H | 40.37 | 96 | 1020 | 48" x 48" x 75" |
ORDERING MATRIX
ORDERING INFORMATION: AL-STL-A
| MODEL | LENGTH | WATTAGE | VOLTAGE | CCT | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|

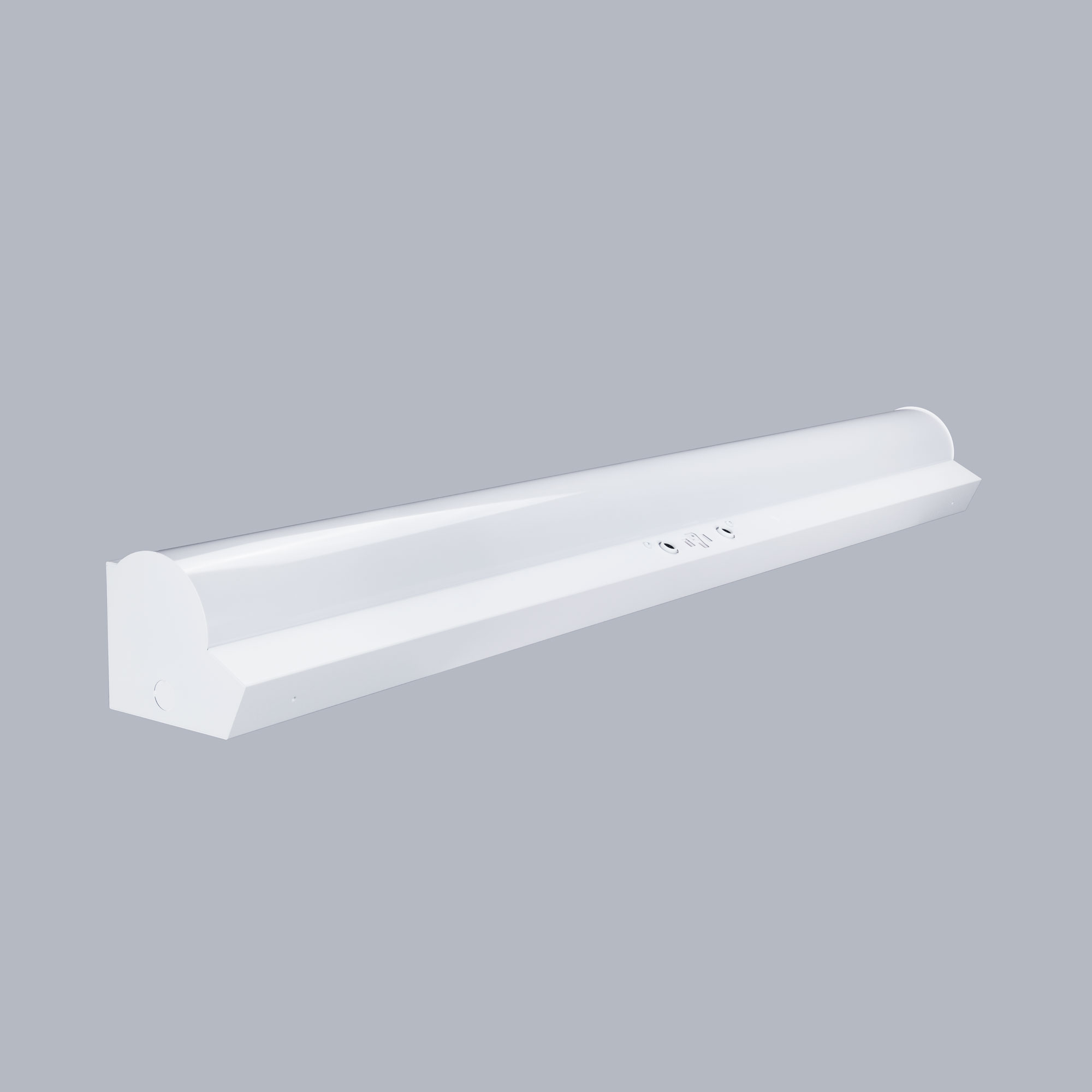

| AL-STL-A = OMNI GLOW LED STAIRWELL LUMINAIRE w/ ULTRASONIC SENSOR | 2FT | 26/21/17/13W | [BLANK] = 120–277V | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | EM = BATTERY BACKUP | WH = WHITE |
| AL-STL-A = OMNI GLOW LED STAIRWELL LUMINAIRE w/ ULTRASONIC SENSOR | 4FT | 40/34/26/21W | HV = 120-347V | PIR = BI- LEVEL MOTION SENSOR | WH = WHITE |
ACCESSORIES (SHIPPED SEPARATELY)
| MODEL | SKU NUMBER | PRODUCT DESCRIPTION |
|---|---|---|
| AL-STL-A | AL-EM-C-8-LV | Billda 8W EM Battery Backup with Large Driver Junction Box |
