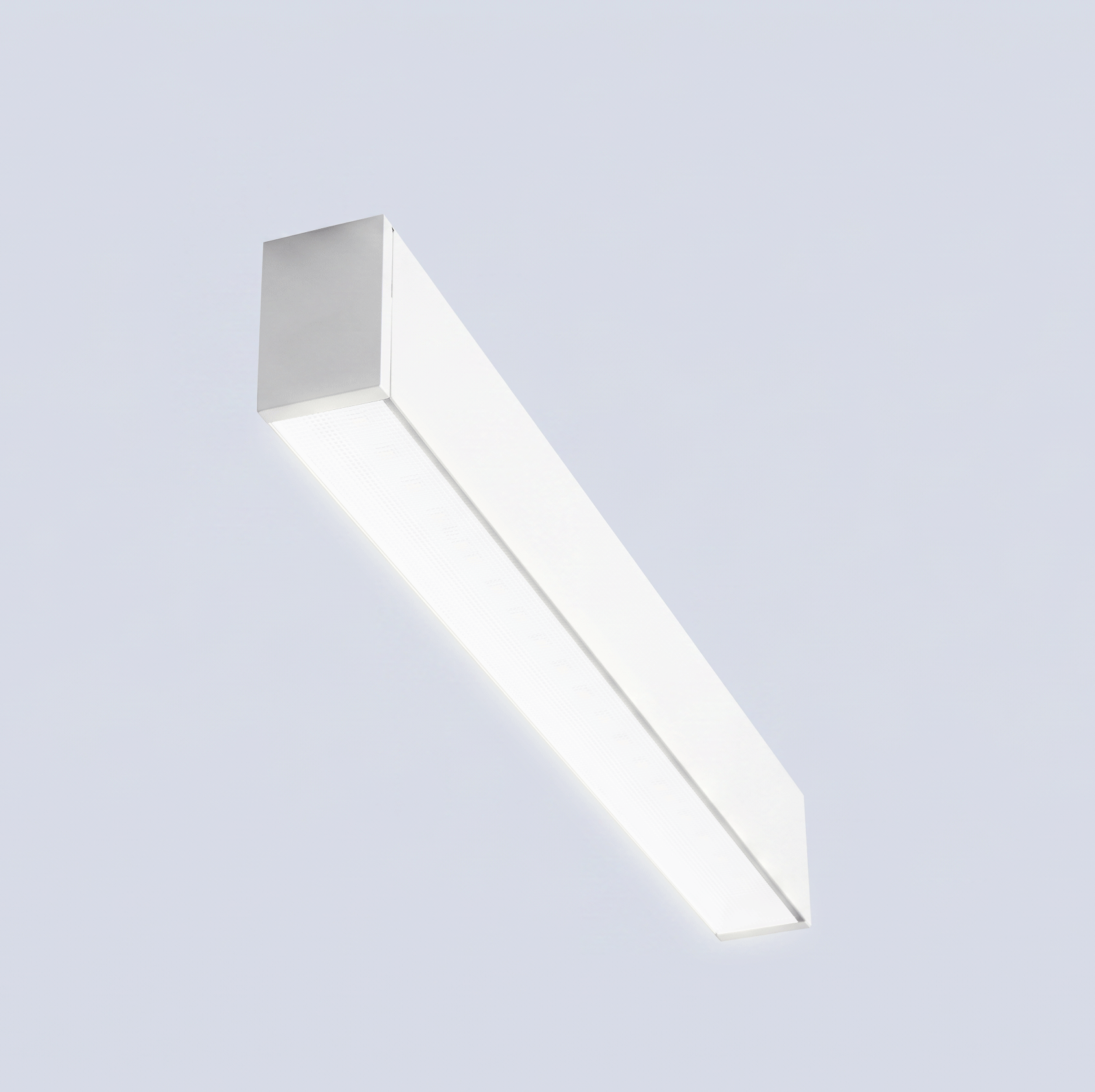

QUICK INFO
Applications:

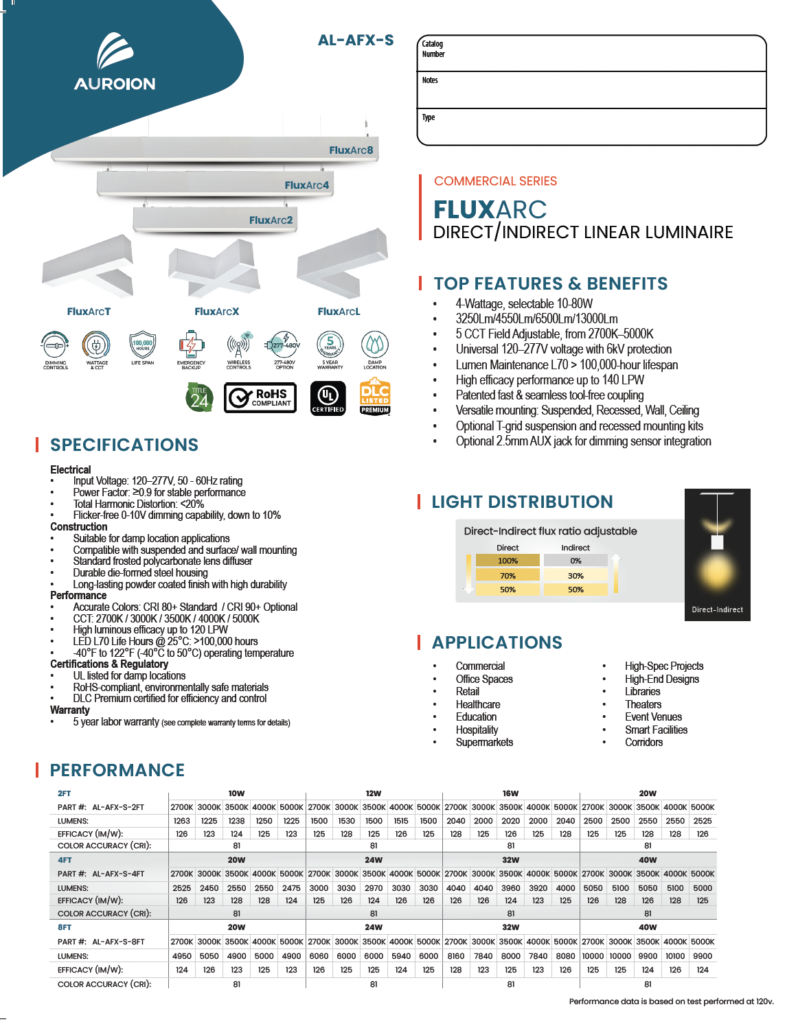

TECHNICAL SPECS
TECHNICAL SPECS
Electrical
Input Voltage: Universal 120–277V, 50 - 60Hz rating
6kV surge protection, Power Factor: ≥0.9 for stable performance
Driver includes dimming control wiring for 0-10V systems.
The Dim-to-off voltage threshold of optional 12V
AUX integrated driver ranges from 0.1V to 0.5V
Flicker-free 0-10V dimming capability, down to 10%
Total Harmonic Distortion: <20%

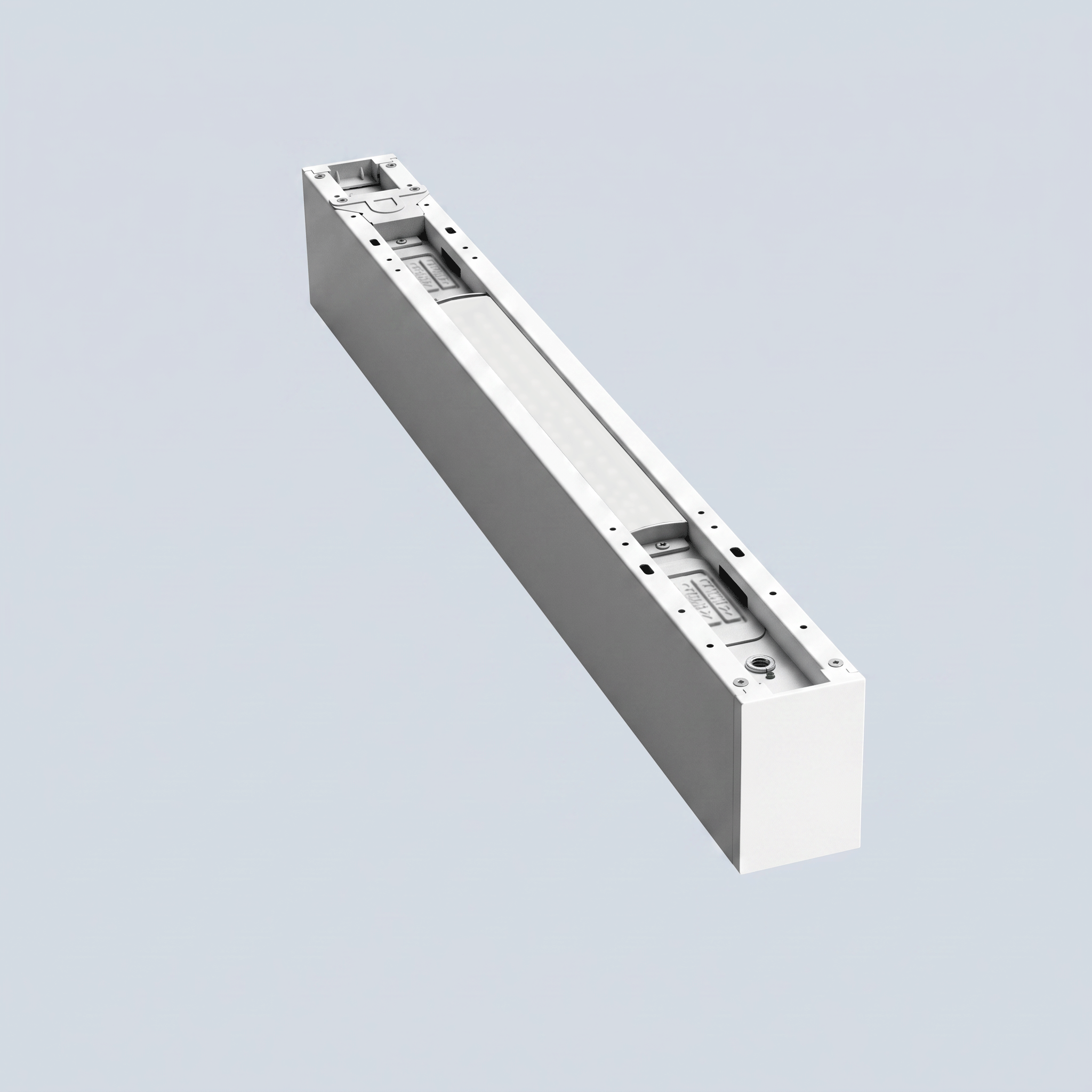

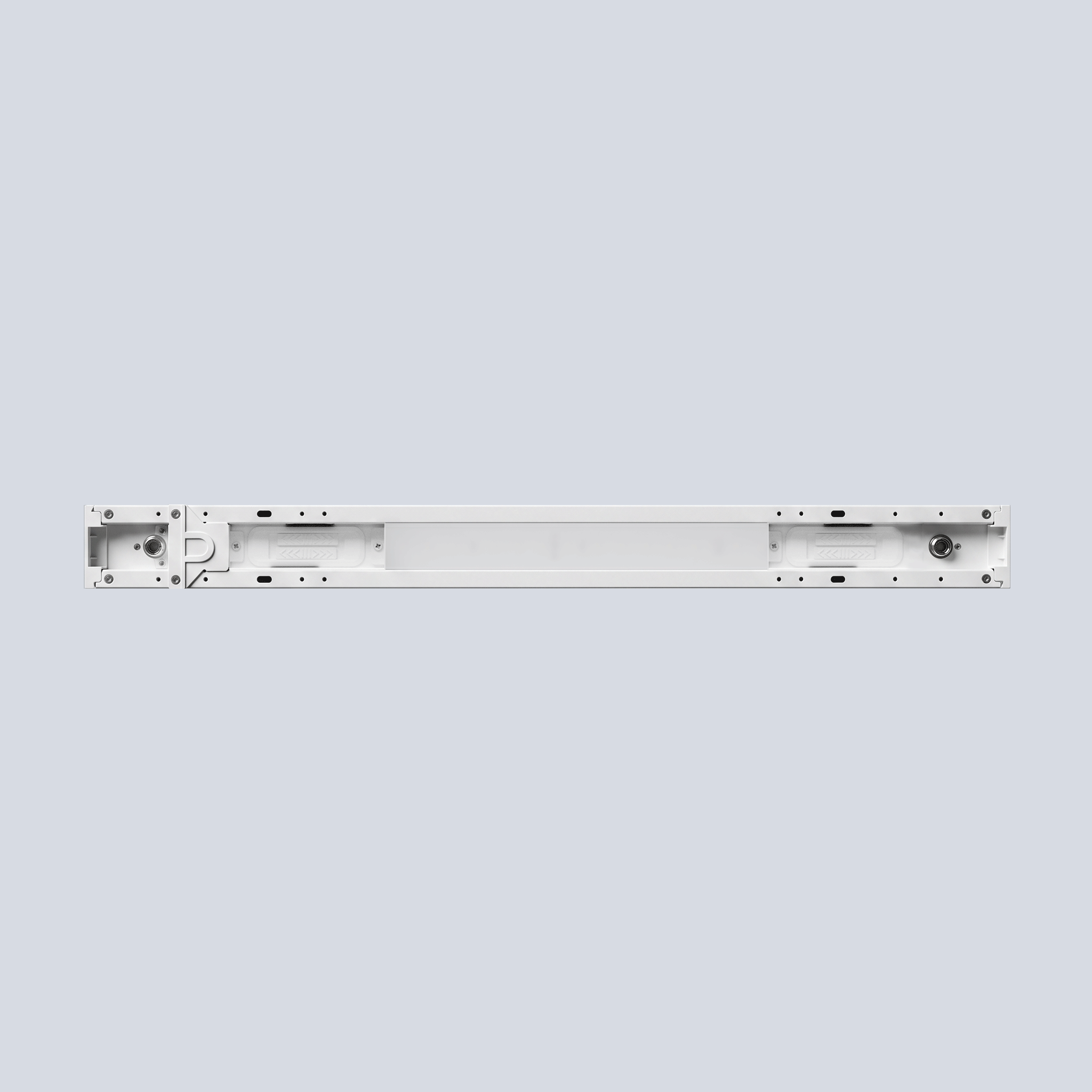

Construction
Suitable for damp location applications
Compatible with suspended and surface/wall mounting
Standard frosted polycarbonate lens diffuser
Durable die-formed steel housing
Long-lasting powder coated finish with high durability
Performance
Suitable for damp locations Suitable for
installation in insulated ceilings (IC Rated) when
input power 10/12/16/20/24/32/40/48/64/80W
5CCT Field Adjustable: 2700K, 3000K, 3500K, 4000K, 5000K
Accurate colors: CRI≥80 Flicker-free 0-10V dimming capability, down to 10%
Operating temp range -40°F to 122°F (-40°C to 50°C)
Long-life, high-efficacy, micro-power leds
Lumen Maintenance, L70 > 100,000 hours Power
Factor: ≥0.9 for stable performance
Total Harmonic Distortion: <20%
Certifications & Regulatory
UL Listed for Damp Location
DLC 6.0 S
Warranty
5 Year Limited Warranty (see complete warranty terms for details)
Testing
IESNA LM-79 & IESNA LM-80 tested by 3rd-party laboratory
KEY FEATURES

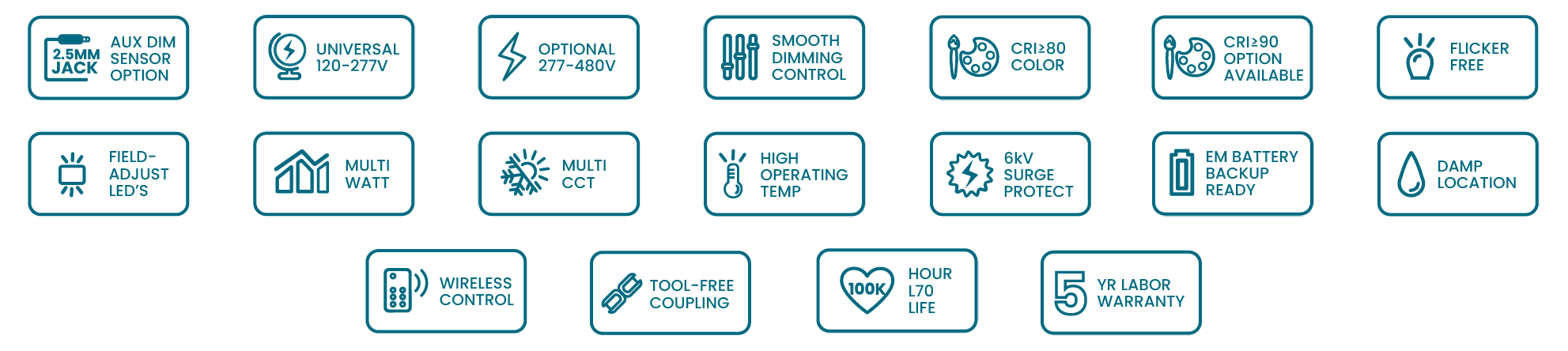

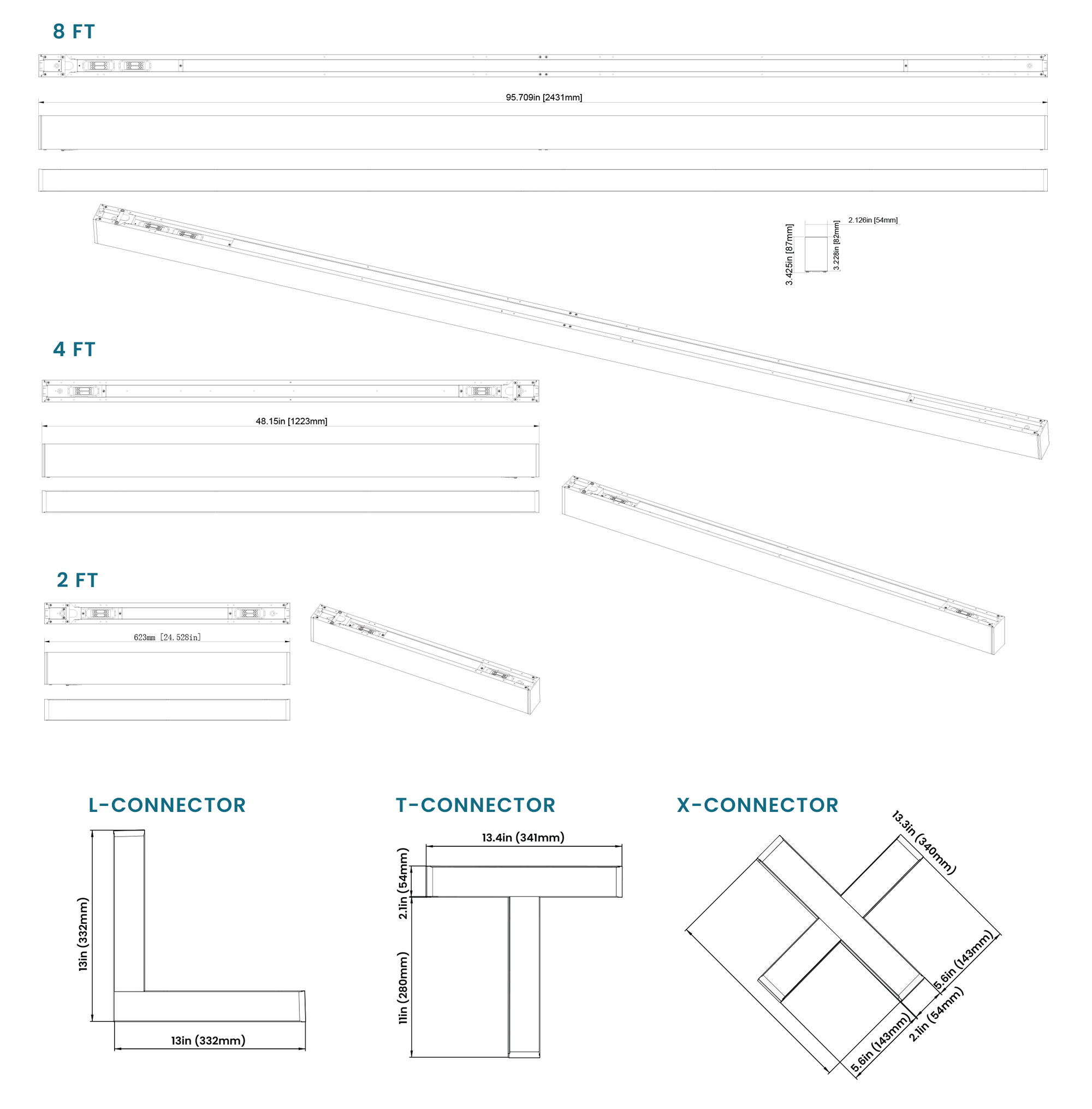

LINE DRAWING

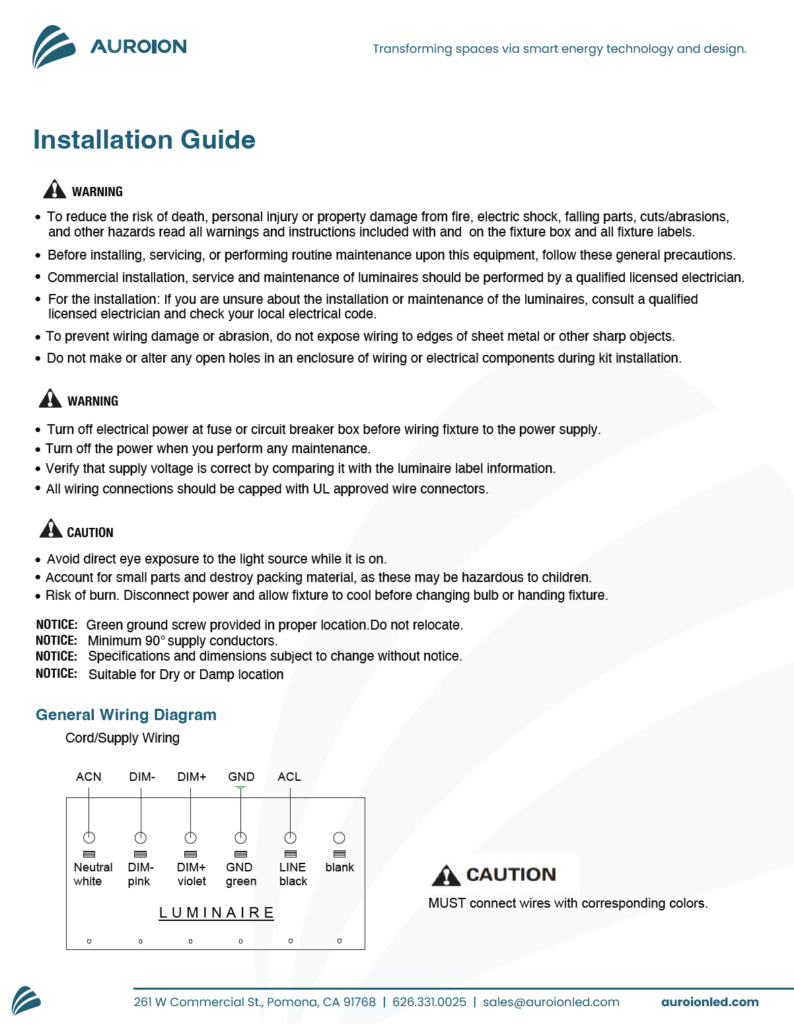

Mounting
performance
| PART # | SIZE | WATTAGE | CCT | LUMENS | EFFICACY (LM/W) | COLOR ACCURACY (CRI) |
|---|---|---|---|---|---|---|
| AL-AFX-S-2FT/20/16/12/10-CCT | 2FT | 20/16/12/10W | 2700/3000/3500/4000/5000K | 2500/2000/1500/1250 | 125 | 80 |
| AL-AFX-S-4FT/40/32/24/20-CCT | 4FT | 40/32/24/20W | 5000/4000/3000/2500 | |||
| AL-AFX-S-8FT/80/64/48/40-CCT | 8FT | 80/64/48/40W | 10000/8000/6000/5000 |
CONTROLS & SENSORS
ACCESSORIES
COMPLIANCE
Logistics
Packaging
| PACKAGING CONFIGURATION | MASTER CARTON DIMENSIONS | MASTER CARTON WEIGHT | STANDARD PALLET QUANTITY | STANDARD PALLET WEIGHT | STANDARD PALLET DIMENSION |
|---|---|---|---|---|---|
| AL-AFX-S-2FT/20/16/12/10-CCT | 25.78" L x 7.95" W x 7.44" H | 23.89 | 432 | 1750 | 48" x 48" x 75" |
| AL-AFX-S-4FT/40/32/24/20-CCT | 50.2" L x 12.6" W x 7.76" H | 43.78 | 192 | 1450 | 48" x 48" x 75" |
| AL-AFX-S-8FT/80/64/48/40-CCT | 97.95" L x 5.04" W x 13.03" H | 53.20 | 160 | 2158 | 98" x 42" x 75" |

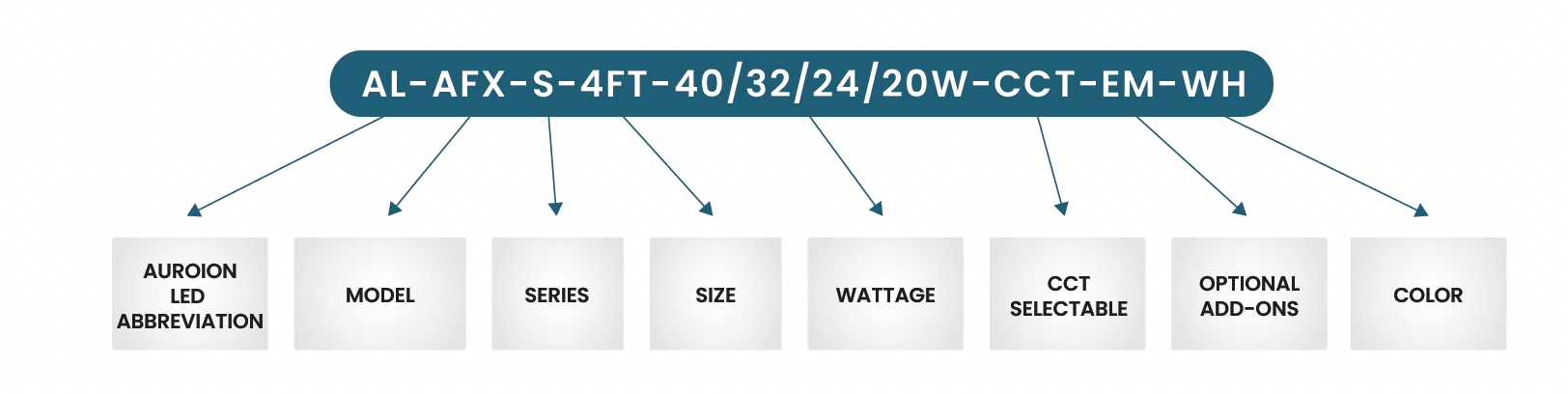

ORDERING MATRIX
ORDERING INFORMATION: AL-AFX
| MODEL | SIZE | WATTAGE | VOLTAGE | CCT | OPTIONAL ADD-ONS | COLOR |
|---|---|---|---|---|---|---|
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 2FT | 20/16/12/10W | [BLANK] = 120–277V | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | EM = BATTERY BACKUP | WH = WHITE |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 4FT | 40/32/24/20W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K | PIR = BI- LEVEL MOTION SENSOR | BL = BLACK | |
| AL-AFX-S = DIRECT/INDIRECT LINEAR LUMINAIRE | 8FT | 80/64/48/40W | CCT = 2700K, 3000K, 3500K, 4000K, 5000K |
ACCESSORIES (SHIPPED SEPARATELY)
| MODEL | SKU NUMBER | PRODUCT DESCRIPTION |
|---|---|---|
| AL-AFX-S | AL-AFX-S-PT-CORD-10FT-WH | 10FT Cord for AL-AFX-S for Non-EM Fixture (White) |
| AL-AFX-S | AL-AFX-S-PT-CORD-10FT-BK | 10FT Cord for AL-AFX-S for Non-EM Fixture (Black) |
| AL-AFX-S | AL-AFX-S-PT-RMK-2FT | 2FT Recessed Mounting Kit for AL-AFX-S |
| AL-AFX-S | AL-AFX-S-PT-RMK-4FT | 4FT Recessed Mounting Kit for AL-AFX-S |
| AL-AFX-S | AL-AFX-S-PT-RMK-8FT | 8FT Recessed Mounting Kit for AL-AFX-S |
| AL-AFX-S | AL-AFX-S-PT-TG | T-Grid Suspension Kit for AL-AFX-S |
| AL-AFX-S | AL-AFX-S-PT-DSB | DC Sensor Box for AL-AFX-S |
