TitanLux Industrial Series UFO LED High Bay – Selectable 200W / 160W / 115W, 120–277V, 4000K / 5000K CCT, AUX Sensor Ready
Schools
Warehouses
Manufacturing
Retail Sectors
Healthcare
Commercial
AL-UFO-A/200/160/115-CCT
- Linear Highbay
- Selectable CCT
- Commercial Lighting
- The AL-UFO-A/200/160/115-CCT is a modern high bay fixture designed to deliver powerful illumination.

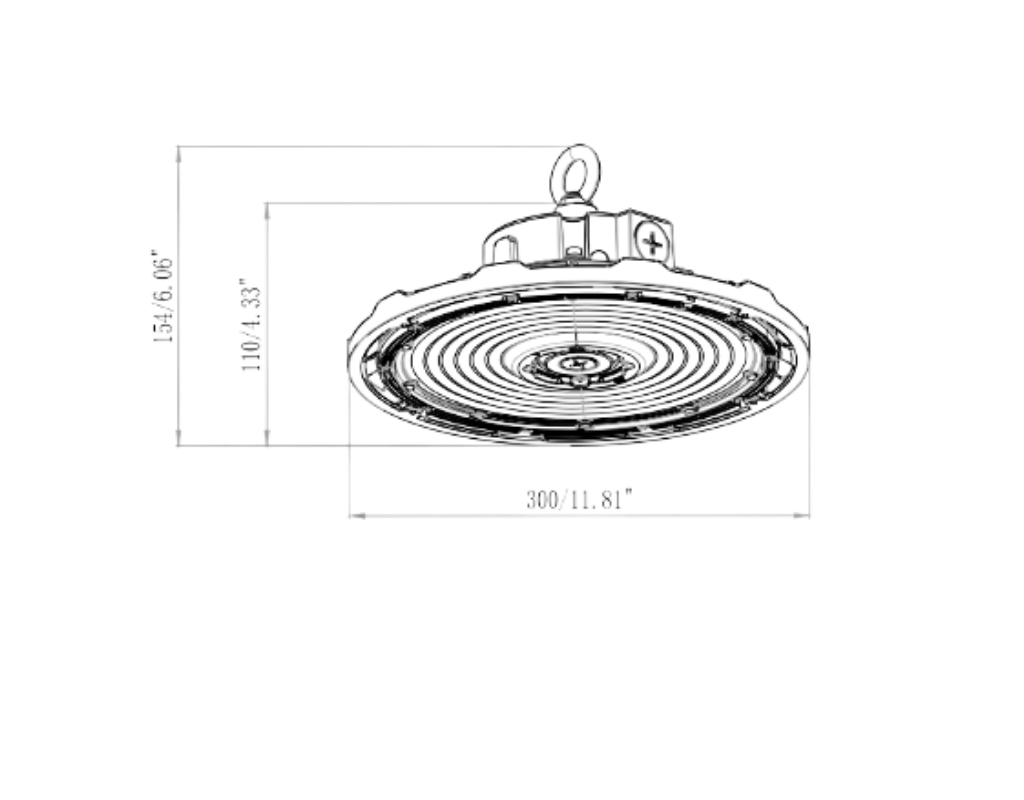

- This smart high bay (11.8*5.9*4.3) offers selectable wattages (200/160/115) and color temperatures (4000/5000K).
- This model is ideal for varying ceiling heights and lighting requirements. Delivering 29000/23200/16675 lumens, it operates on 120-277.
Selectable Wattage:
Lumens Output
Selectable CCT
Wide input voltage:
Lighting controls
DLC
Fixture Design:
Mounting
Efficiency
Warranty
200/160/115
29000/23200/16675
4000/5000K
120-277
3.5 mm AUX port
6.0 Premium listed
Compact, linear design
V-hook & chain
Long lifespan
5-year
Selectable Wattage:
200/160/115
Lumens Output
29000/23200/16675
Selectable CCT
4000/5000K
Wide input voltage:
120-277
Lighting controls
3.5 mm AUX port
DLC
6.0 Premium listed
Fixture Design:
Compact, linear design
Mounting
V-hook & chain
Selectable Wattage:
Lumens Output:
Selectable CCT:
Wide input voltage:
DLC 6.0:
DLC 6.0 Premium:
Compact, low-profile
V-hook & chain
Energy-efficient
5-year
135W / 115W / 100W
20500/17500/15000
4000K/5000K
20500/17500/15000
120-277
Controls 3.5 mm
linear design
mounting included
long lifespan
warranty
FEATURES
DETAILS
Selectable Wattage:
200/160/115
Lumens Output
29000/23200/16675
Selectable CCT
4000/5000K
Wide input voltage:
Wide input voltage:
Lighting controls
3.5 mm AUX port
DLC
6.0 Premium listed
Fixture Design:
Compact, linear design
Mounting
V-hook & chain
Efficiency
Long lifespan
Warranty
5-year
+
Construction

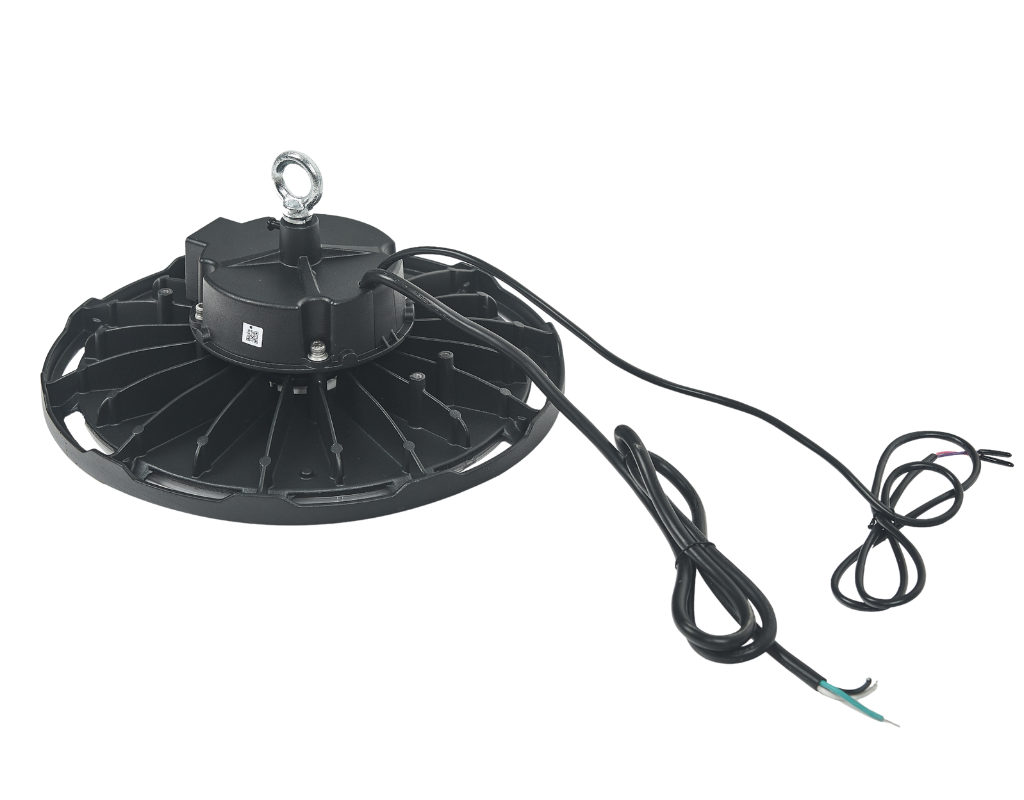

The fixture is made up of long-lasting black die-cast aluminum. IK09 and IP65 are used for structural strength and long-term reliability. It is equipped with a high-quality polycarbonate (PC) optical lens. Its white finish makes it more attractive and solid.
+
Electrical
A universal input voltage of 120-277 is considered best for commercial and industrial use. 6 kV surge protection safeguards against power fluctuations. For optimal energy performance, the unit maintains a power factor of ≥0.9. It comes with a 6 ft whip and a 6 ft dimming wire.
+
Mounting
This fixture is designed for standard hook mount installation. The optional mounting includes pendants and yoke mounts.
+
Optical
The optical system distributes the beam at a general angle of 120 degrees.
+
Dimming & Control
Their adjustable control strategies and 0-10 V dimming options help in energy saving. A 3.5mm AUX audio jack receptacle, a type of connector for audio devices, is included for sensor integration.
+
Environment
This fixture is UL (Underwriters Laboratories) rated for damp locations, meaning it has been tested and certified for safety in areas where moisture may be present. It works quite well in temperatures ranging from -40°C (-40°F) to 50°C (122°F).
+
Certification
This smart product is UL Listed and also possesses RoHS compliance for environmental safety. DLC premium qualified features make it energy efficient and rebate eligible.
+
Warranty
This product has a 5-year limited warranty for long-term performance.
AL-UFO-A/200/160/115-CCT
|
Catalog Number |
Size |
Input Voltage |
Wattage |
CCT |
Lumen Output |
Efficacy |
Lifespan |
|---|---|---|---|---|---|---|---|
|
40 |
3000/3500/4000/5000 |
6000 |
|||||
|
AL-LNS-B-4FT/40/34/26/21-CCT-EM |
4FT |
120-277 |
34 |
3000/3500/4000/5000 |
5100 |
150 |
50000 Hours |
|
26 |
3000/3500/4000/5000 |
3900 |
|||||
|
21 |
3000/3500/4000/5000 |
3215 |
CATALOG NUMBER
SIZE
INPUT VOLTAGE
WATTAGE
CCT
LUMEN OUTPUT
EFFICACY
LIFESPAN
| AL-UFO-A/200/160/115-CCT | 11.8 Inch | 120-277 | 200 | 4000/5000 | 29000 | 145 | |
| 160 | 4000/5000 | 23200 | |||||
| 115 | 4000/5000 | 16675 |
